- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Narrow width configuration
MR 48 N

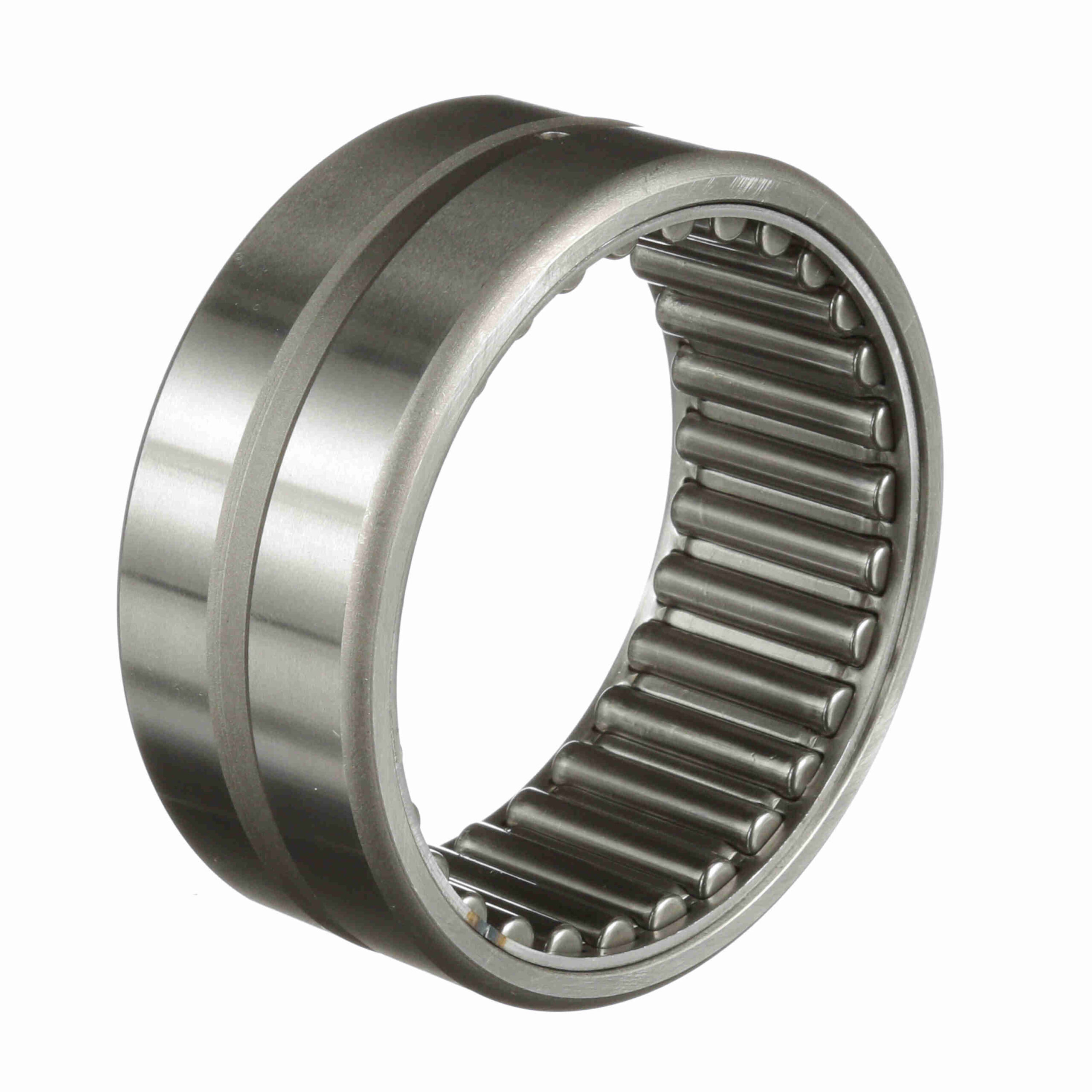

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 48 N
$54.65
Availability: 51 in stock
Availability: 51 in stock
| Includes Inner Ring: | No | Series: | Narrow |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Seal Type: | Unsealed | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Static Load Rating (lb): | 52, 300 lb | Platform: | Cagerol Bearing |
| Speed [Max] Oil (RPM): | 4, 000 rpm | Speed [Max] Grease (RPM): | 2, 000 rpm |
| Sealed: | None | Dynamic Load Rating (lb): | 26, 100 lb |
| Precision Rating: | RBEC-1 | Flanges: | No Flanges |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Related Inner Ring: | MI 40 N | Enclosure: | Open |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166068110 | Weight: | 1.27 LB |
| Packaged Length: | 3.87 Inches | Packaged Width: | 1.87 Inches |
| Packaged Height: | 3.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
