- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned out
MR 24 RSS

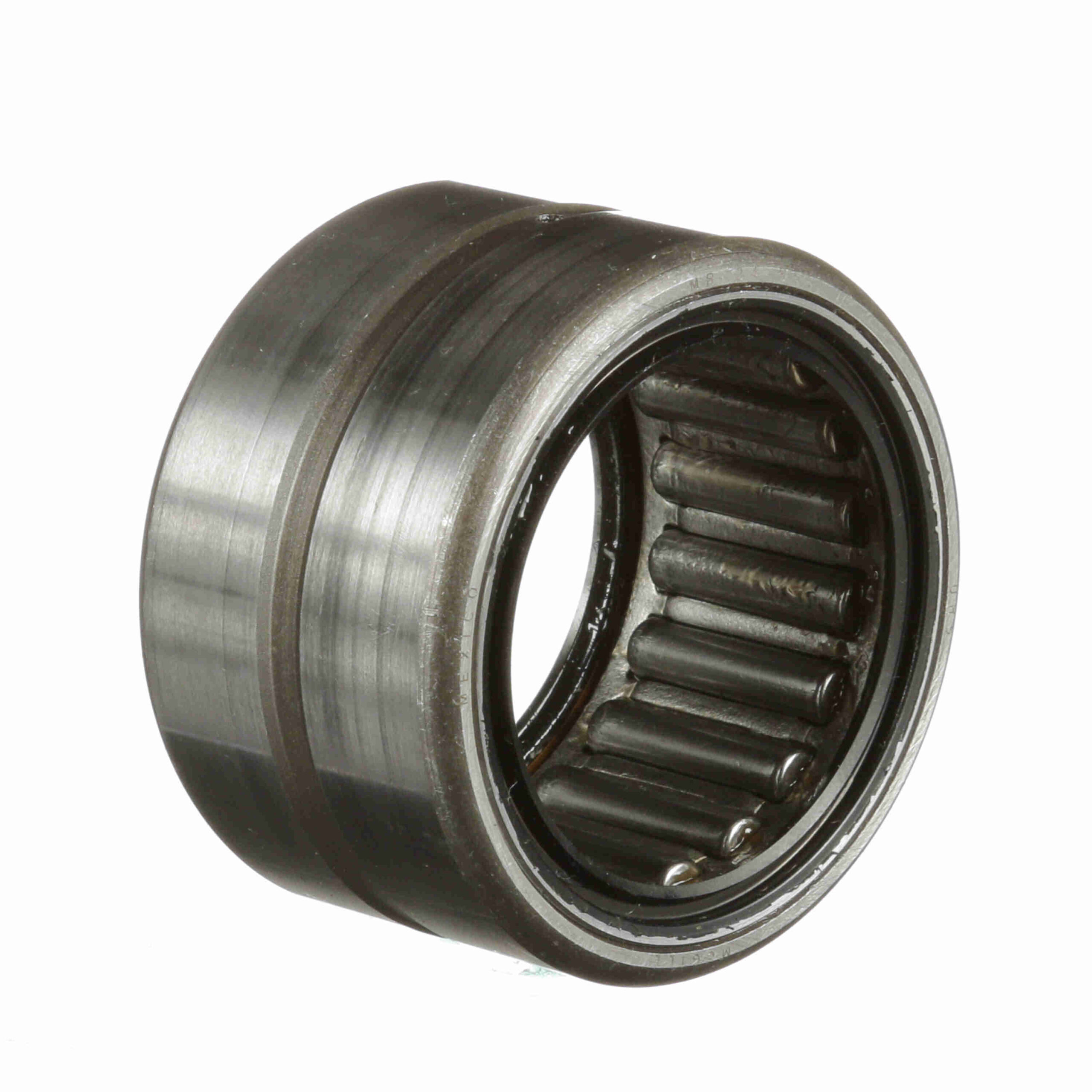

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 24 RSS
$30.78
Availability: 102 in stock
Availability: 102 in stock
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
|---|---|---|---|
| Series: | Standard | Cage Material: | Steel |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Seal Type: | Rubber Lip |
| Bore Type: | Straight | Misalignment: | No |
| Speed [Max] Grease (RPM): | 2, 550 rpm | Full Complement/Caged: | Caged |
| Static Load Rating (lb): | 15, 500 lb | Sealed: | Sealed - Both Sides |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Dynamic Load Rating (lb): | 10, 300 lb | Related Inner Ring: | MI 19 |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166066437 |
| Weight: | 0.42 LB | Packaged Length: | 2.31 Inches |
| Packaged Width: | 1.56 Inches | Packaged Height: | 2.31 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
