- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned in
MR 40 SS

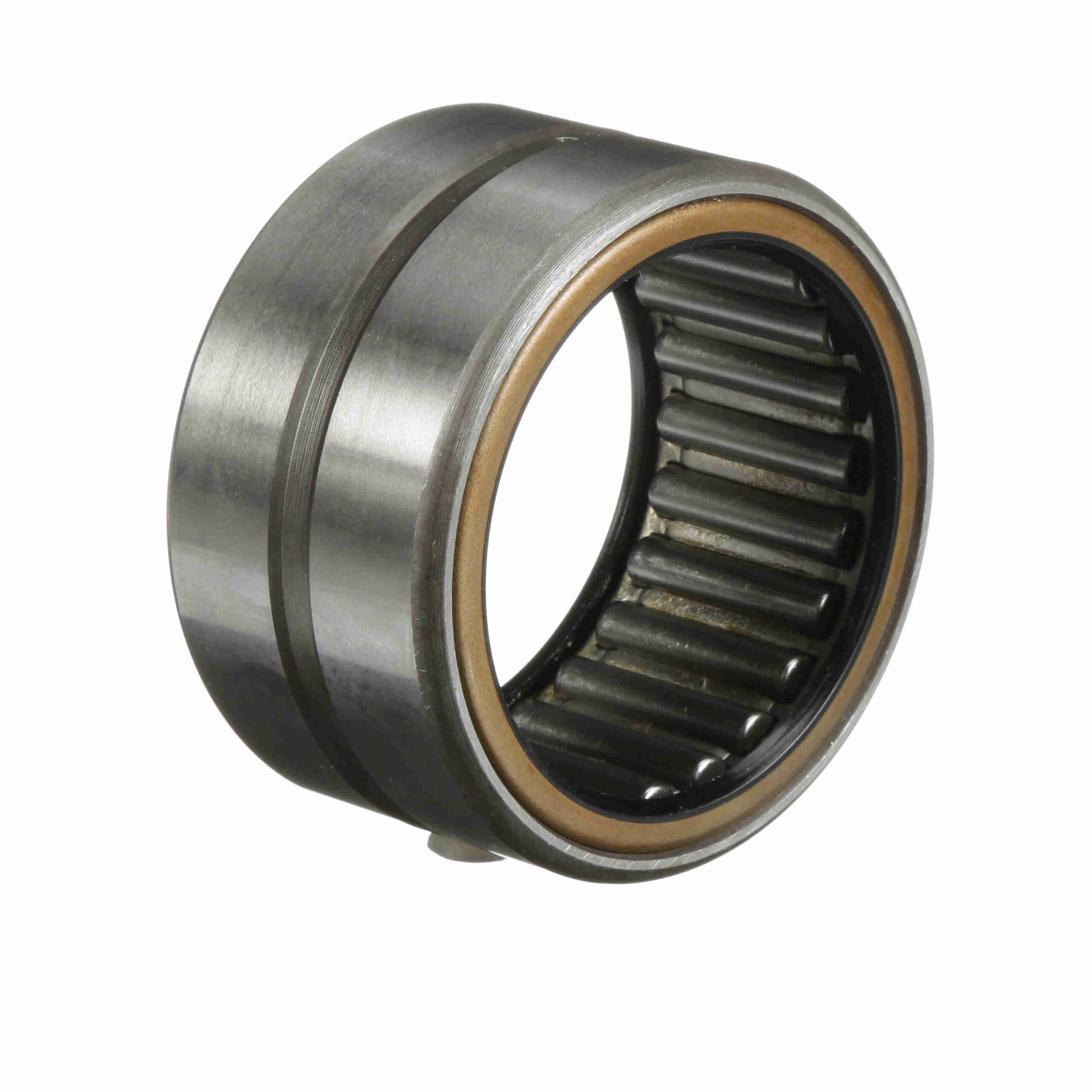

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 40 SS
$80.11
Out of stock
Out of stock
| Material: | 52100 Bearing Steel | Series: | Standard |
|---|---|---|---|
| Includes Inner Ring: | No | Cage Material: | Steel |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Static Load Rating (lb): | 42, 900 lb | Sealed: | Sealed - Both Sides |
| Speed [Max] Grease (RPM): | 1, 530 rpm | Duplexing: | No |
| Dynamic Load Rating (lb): | 23, 400 lb | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Related Inner Ring: | MI 31, MI 32, MI 34 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Precision Rating: | RBEC-1 |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166067649 |
| Weight: | 1.64 LB | Packaged Length: | 3.31 Inches |
| Packaged Width: | 1.81 Inches | Packaged Height: | 3.31 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
