- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Narrow width configuration
MR 18 N

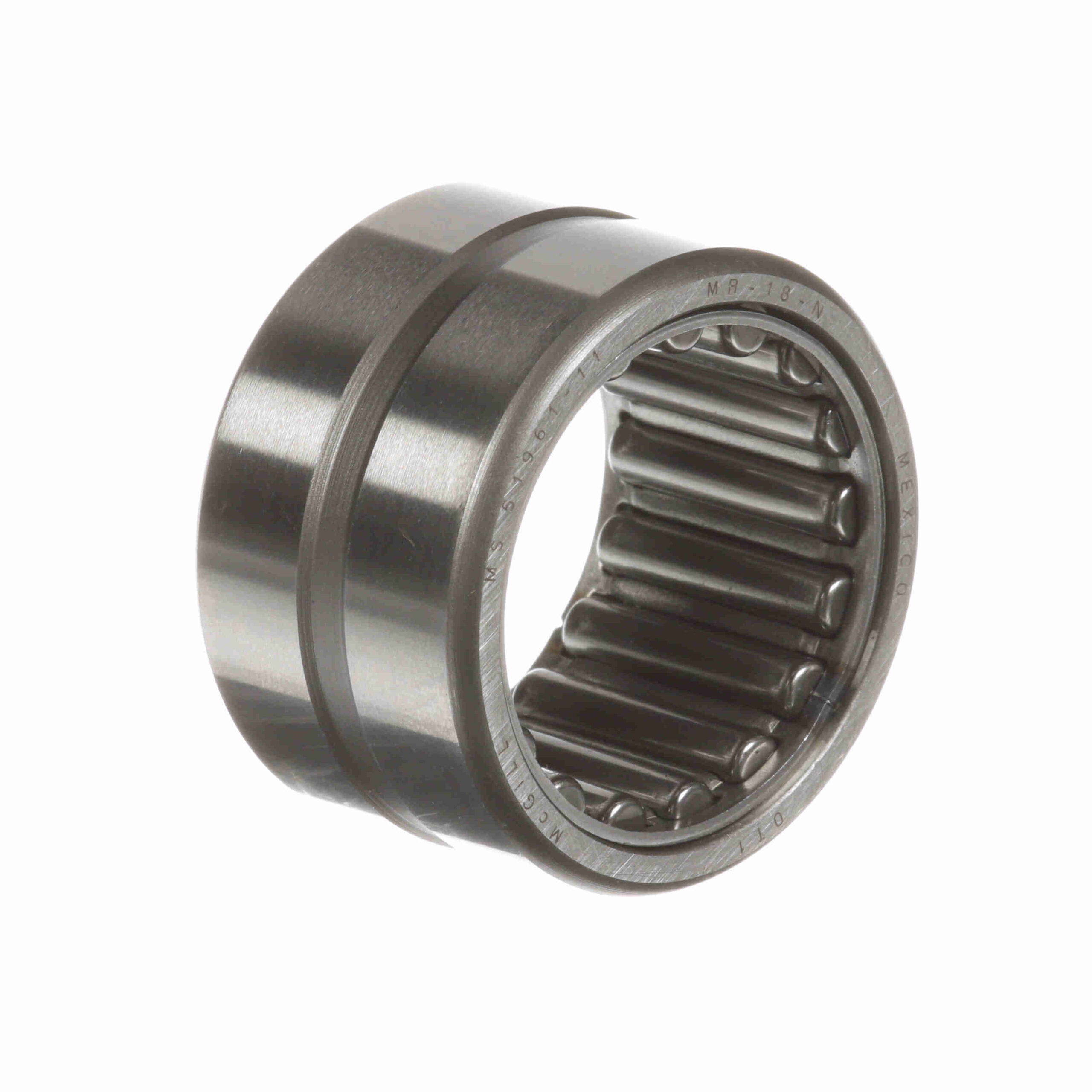

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 18 N
$25.82
Out of stock
Out of stock
| Includes Inner Ring: | No | Series: | Narrow |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Dynamic Load Rating (lb): | 8, 720 lb | Duplexing: | No |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Speed [Max] Oil (RPM): | 10, 700 rpm | Static Load Rating (lb): | 12, 200 lb |
| Sealed: | None | Speed [Max] Grease (RPM): | 5, 350 rpm |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 14 N, MI 15 N |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166065706 | Weight: | 0.23 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
