- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned out
- With separable inner ring
MR 16 RSS/MI 12

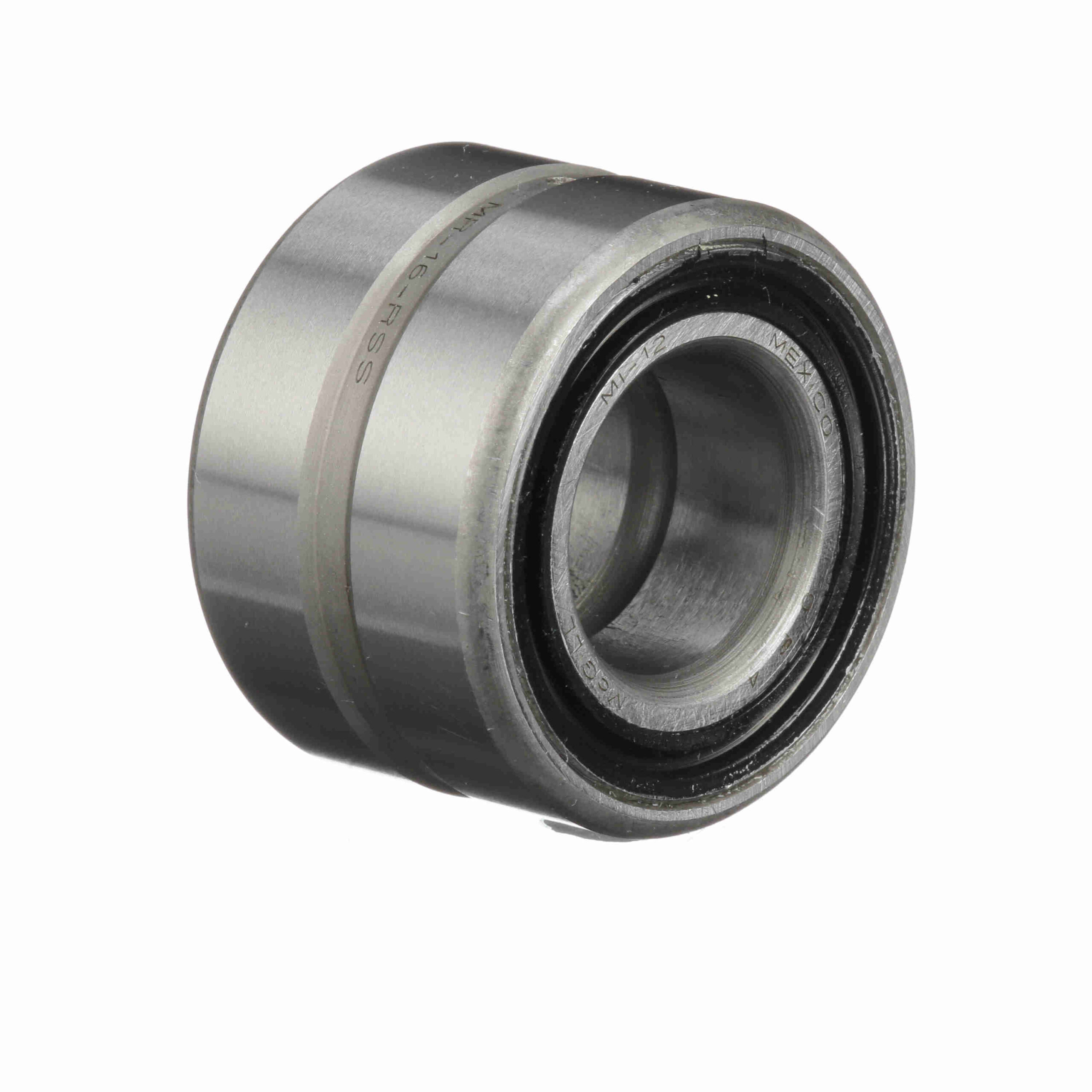

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – MR 16 RSS/MI 12
$113.06
Out of stock
Out of stock
| Includes Inner Ring: | Yes | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Series: | Standard | Cage Material: | Steel |
| Misalignment: | No | Radial Clearance: | Normal |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Platform: | Guiderol Bearing | Dynamic Load Rating (lb): | 5, 840 lb |
| Duplexing: | No | Static Load Rating (lb): | 7, 100 lb |
| Full Complement/Caged: | Full Complement | Speed [Max] Oil (RPM): | 3, 800 rpm |
| Speed [Max] Grease (RPM): | 1, 900 rpm | Sealed: | Sealed - Both Sides |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Separable: | Inner ring - both sides | Enclosure: | Sealed Both Sides |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166140908 | Weight: | 0.33 LB |
| Packaged Length: | 7.75 Inches | Packaged Width: | 3.63 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
