- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Narrow width configuration
- With separable inner ring
MR 16 N/MI 12 N

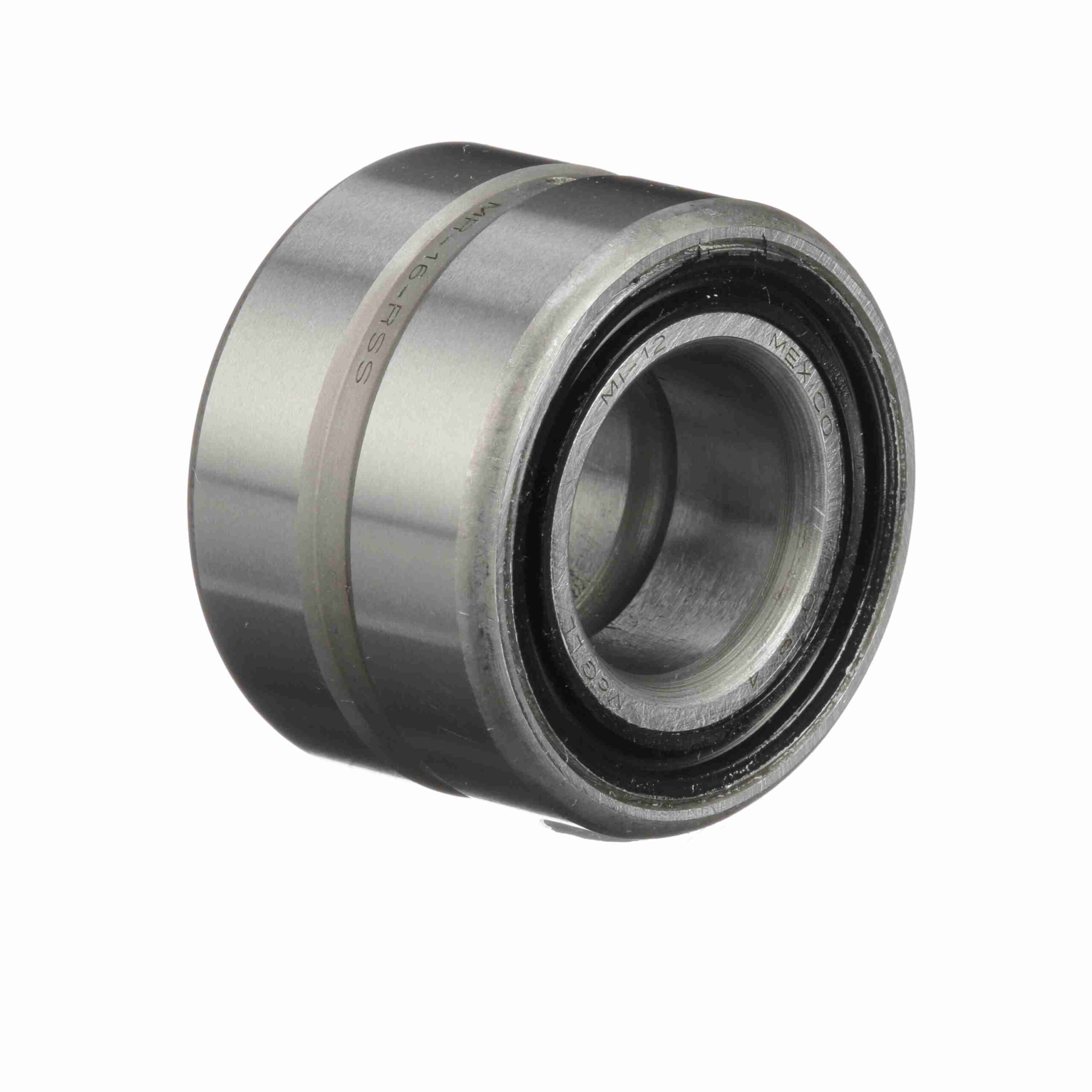

McGill Cagerol® Radial Needle Roller Bearing (with inner) – MR 16 N/MI 12 N
$42.01
Availability: 2 in stock
Availability: 2 in stock
| Series: | Narrow | Includes Inner Ring: | Yes |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Misalignment: | No | Seal Type: | Unsealed |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Sealed: | None | Speed [Max] Oil (RPM): | 12, 000 rpm |
| Static Load Rating (lb): | 7, 100 lb | Full Complement/Caged: | Caged |
| Speed [Max] Grease (RPM): | 6, 000 rpm | Duplexing: | No |
| Dynamic Load Rating (lb): | 5, 840 lb | Platform: | Cagerol Bearing |
| Standard Met: | ABMA, ISO, MS 51961-8 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | Not Rated | Separable: | Inner ring - both sides |
| Component Type: | Outer race only | Enclosure: | Open |
| Retainer: | Yes | Operating Temperature Range (F): | -20F to 250 °F °F |
| UPC: | 726166065508 | Weight: | 0.21 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
