- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- With separable inner ring
MR 16/MI 12

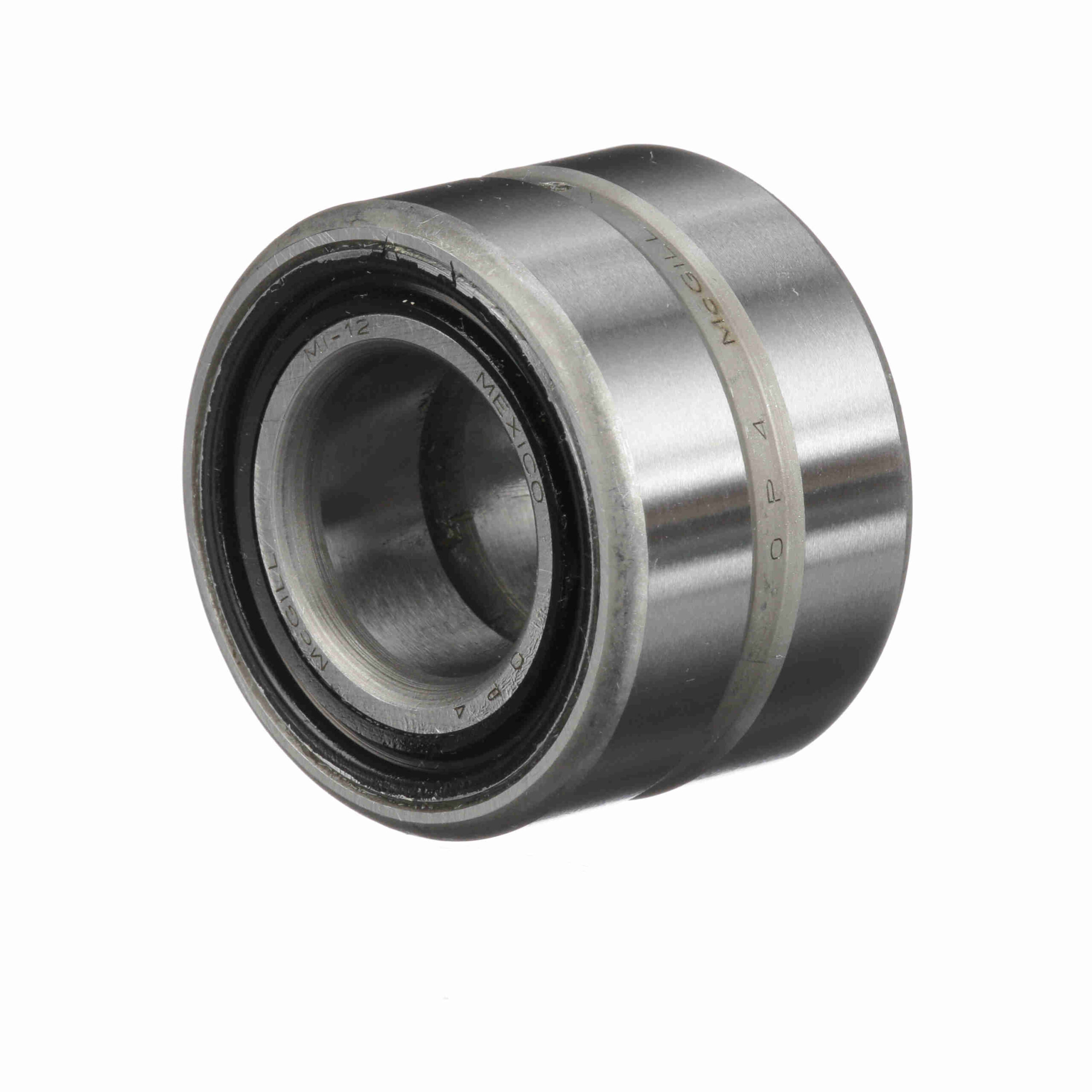

McGill Cagerol® Radial Needle Roller Bearing (with inner) – MR 16/MI 12
$154.21
Out of stock
Out of stock
| Material: | 52100 Bearing Steel | Includes Inner Ring: | Yes |
|---|---|---|---|
| Series: | Standard | Cage Material: | Steel |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Speed [Max] Oil (RPM): | 12, 000 rpm | Platform: | Cagerol Bearing |
| Speed [Max] Grease (RPM): | 6, 000 rpm | Full Complement/Caged: | Caged |
| Duplexing: | No | Dynamic Load Rating (lb): | 8, 000 lb |
| Static Load Rating (lb): | 10, 600 lb | Sealed: | None |
| Standard Met: | ABMA, ISO, MS 51961-9 | Precision Rating: | Not Rated |
| Lubrication Hole Type: | Lubrication Groove & Hole | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Inner ring - both sides |
| Retainer: | Yes | Operating Temperature Range (F): | -20F to 250 °F °F |
| UPC: | 726166065331 | Weight: | 0.28 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
