- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
BK95X 1 3/8

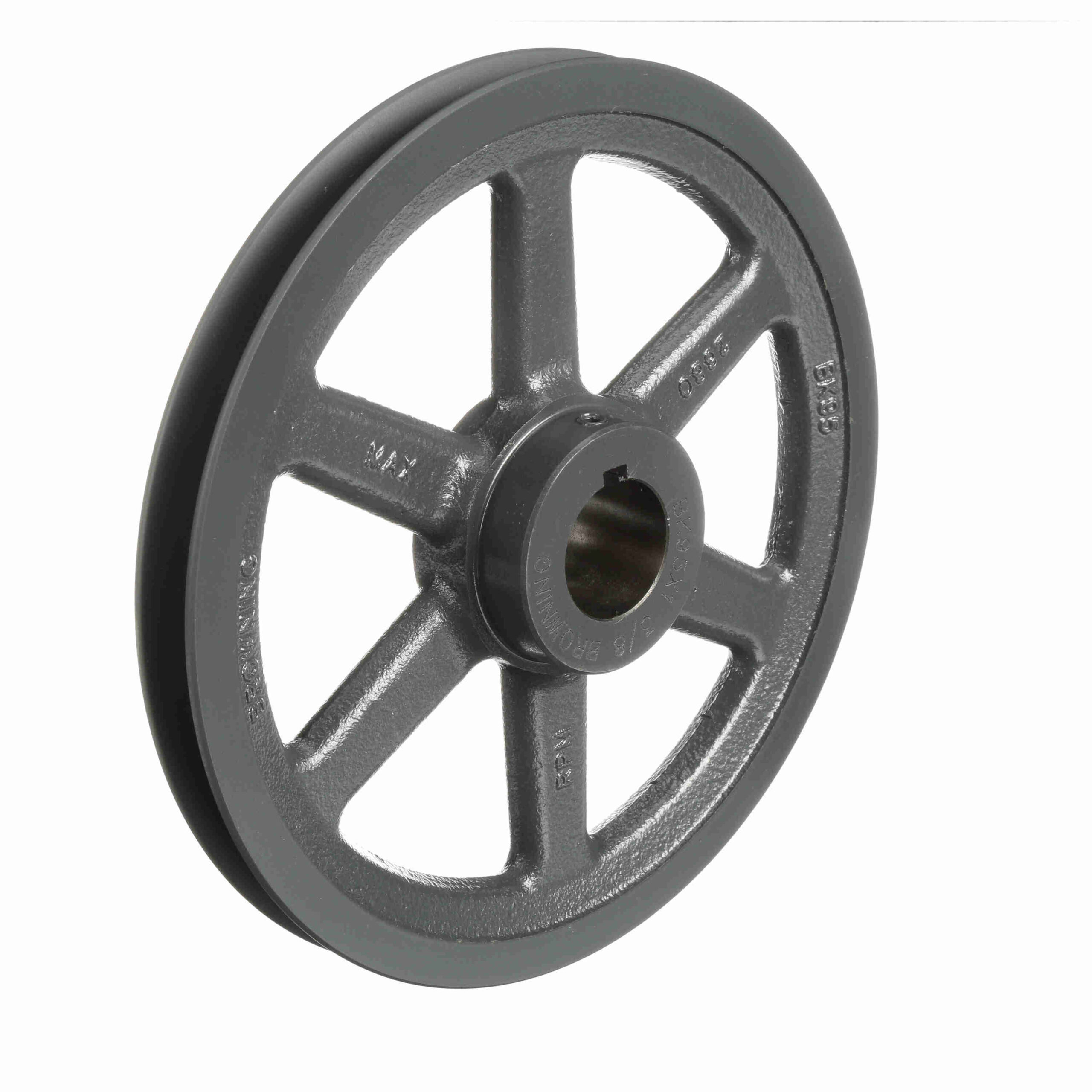

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – BK95X 1 3/8
$269.88
Out of stock
Out of stock
| Model Name: | BK_Sheave_Master2 | Material: | Cast Iron |
|---|---|---|---|
| Pitch Diameter (A): | 8.7 | Outside Diameter (in): | 9.25 in |
| Number of Grooves: | 1 | Pitch Diameter (B): | 9.2 |
| Bore (in): | 1.375 in | Product Type: | FHP - Finished Bore |
| Belt Section: | A, B | Bore Type: | Finished with Keyway and SS |
| Keyway Size: | .3125 | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| Set Screw Tightening Torque (in-lb): | 165 | UPC: | 662289591657 |
| Weight: | 6.34 LB | Packaged Length: | 9.90 Inches |
| Packaged Width: | 9.90 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
