- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

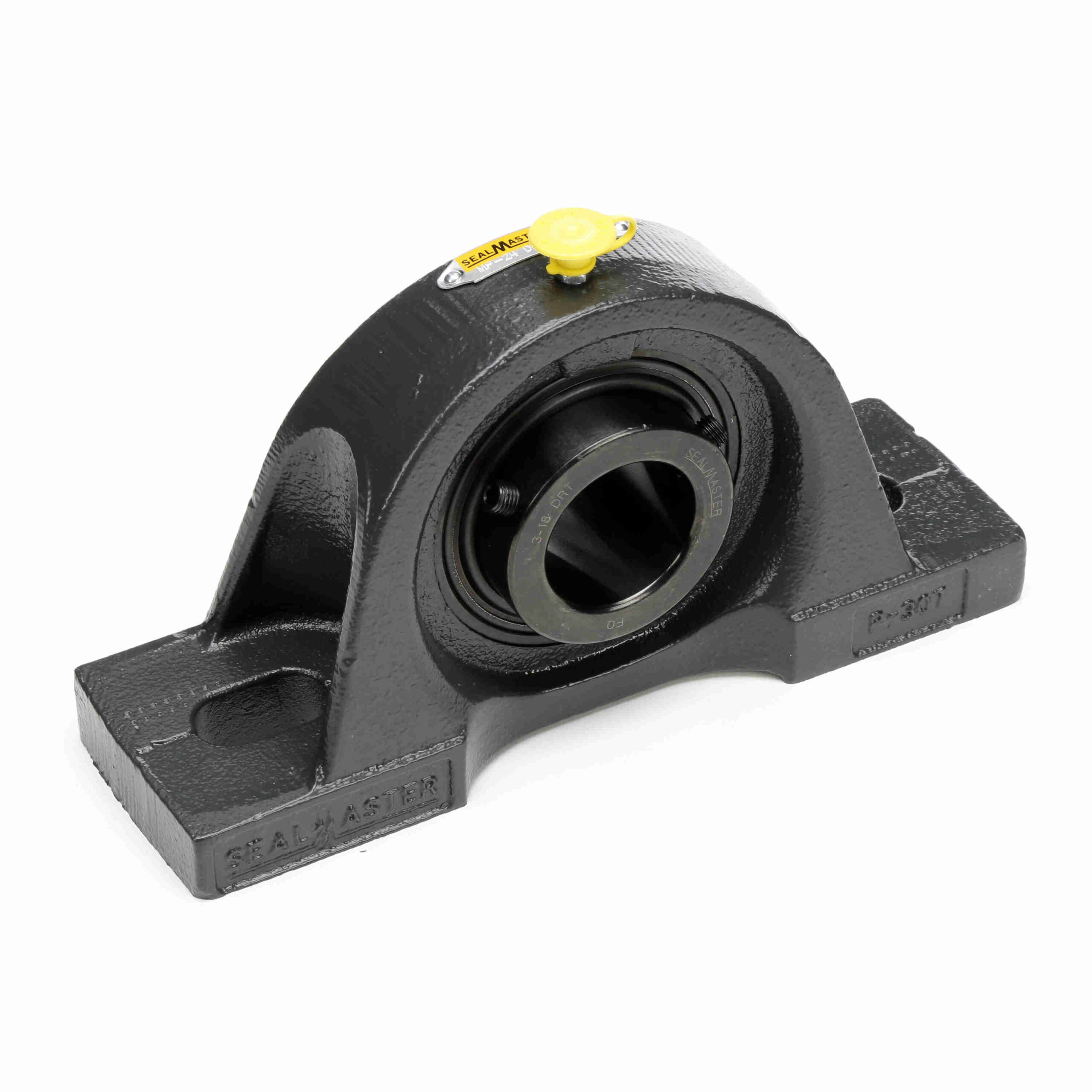

MP-39 DRT
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Contamination – MP-39 DRT
$782.33
Out of stock
Out of stock
| Seal Type: | Multi-Lip Contact Seal | Measure Units: | Inch |
|---|---|---|---|
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Options: | High Contamination | Replaceable Insert: | Yes |
| Housing Color: | Gray | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Medium Duty | Maximum Speed (RPM): | 550 rpm |
| Housing Style: | Pillow Block | Housing Material: | Cast Iron |
| Retainer Type: | Land Riding Retainer | Locking Type: | Setscrew |
| Lubrication Type: | Lithium Complex NLGI 2 Grease - 100% Fill | Housing Type: | Pillow Block, Two Bolt |
| Ability to Relubricate: | Yes | Insert Number: | 3-27 DRT |
| Inner Race Heat Treat Method: | Zone-Hardened | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461000000 | Weight: | 21.50 LB |
| Packaged Length: | 12.38 Inches | Packaged Width: | 7.13 Inches |
| Packaged Height: | 3.56 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
