- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MP-23 HT

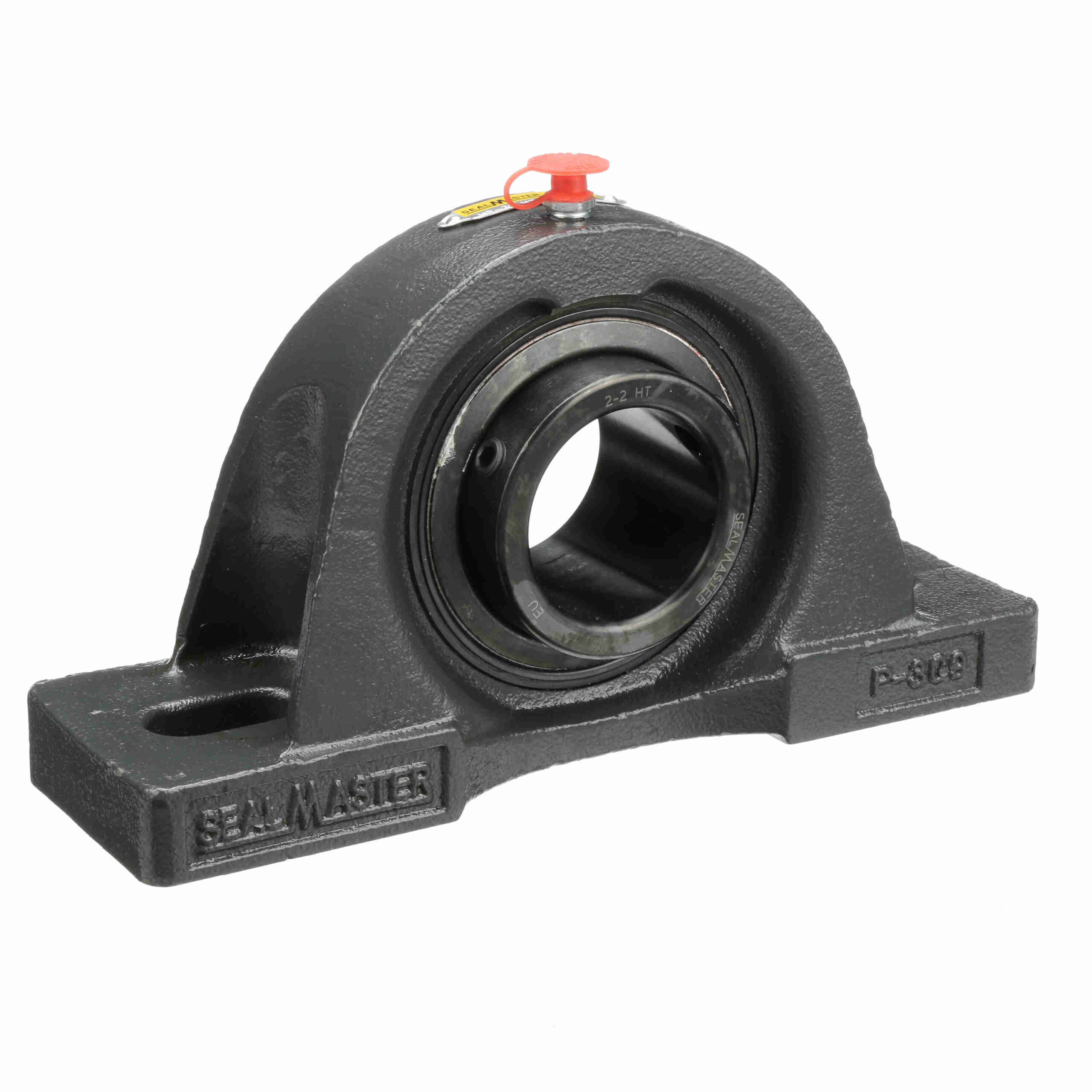

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Temperature – MP-23 HT
$628.28
Out of stock
Out of stock
| Housing Type: | Pillow Block, Two Bolt | Maximum Operating Temperature: | 400 °F |
|---|---|---|---|
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
| Internal Clearance: | Increased | Seal Type: | High Temp Labyrinth |
| Speed (Max): | 1800 | Duty Series: | Medium Duty |
| Housing Base: | Solid | Measure Units: | Inch |
| Rolling Element: | Ball Bearing | Insert No.: | 3-17 HT |
| Expansion: | No | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Bore Shape: | Straight | Lubrication: | Synthetic NLGI 2 High Temperature Grease |
| Locking Type: | Setscrew | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Relubricatable: | Yes | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Housing Color: | Gray |
| Options: | High Temperature | Operating Temperature Range: | Max. +400°F |
| UPC: | 662461313886 | Weight: | 6.80 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
