- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry , dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
- Reduced maintenance design with plug and includes Sealmaster? Tapered Lands ensures that lubricant will be easily redirected back to the raceway.

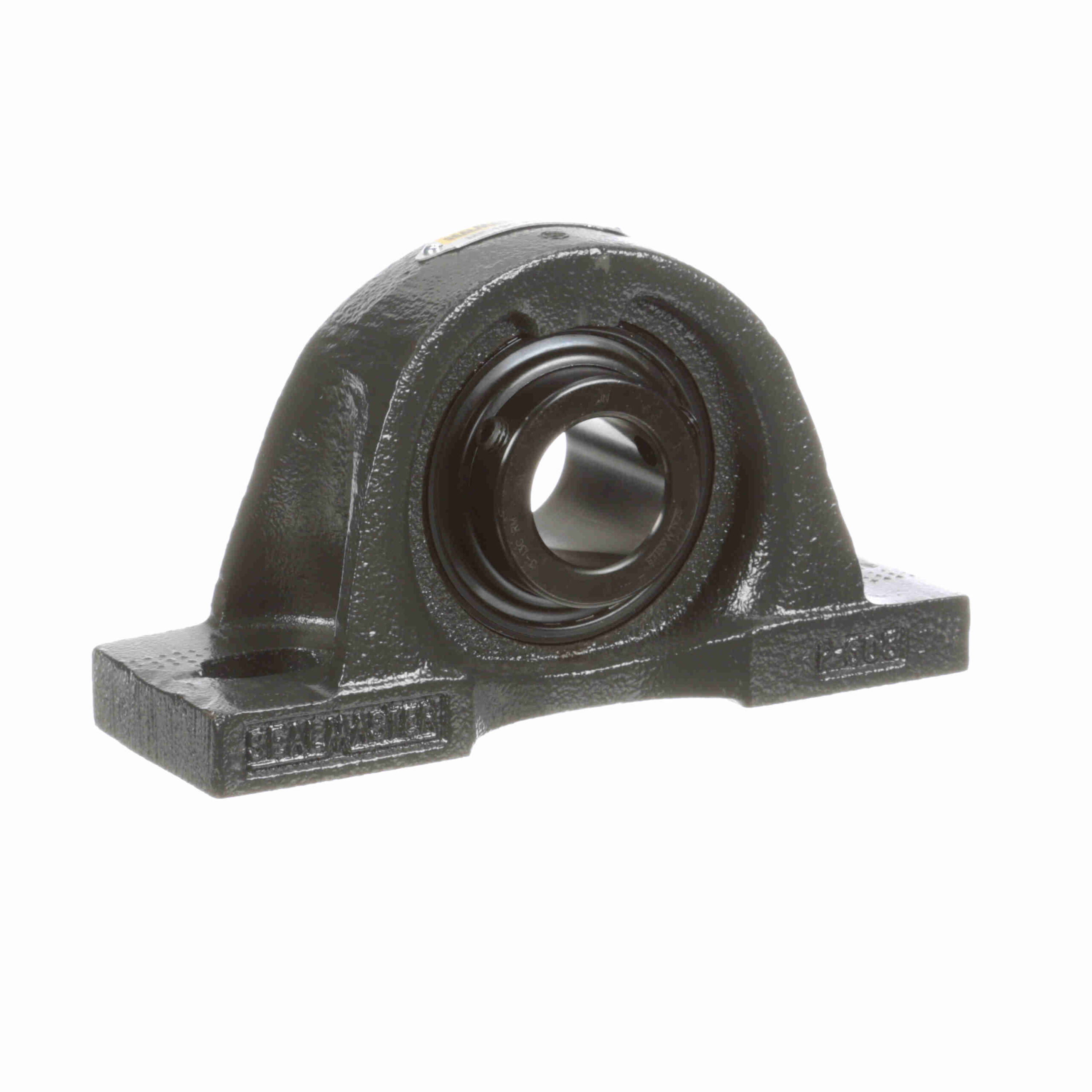

MP-19C RMA
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Reduced Maintenance – Lubed for Life – Air Handling – MP-19C RMA
$227.68
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Housing Material: | Cast Iron |
|---|---|---|---|
| Expansion: | No | Rolling Element: | Ball Bearing |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Retainer Type: | Land Riding Retainer |
| Duty Series: | Medium Duty | Measure Units: | Inch |
| Housing Type: | Pillow Block; Two Bolt | Insert No.: | 3-13C RM |
| Internal Clearance: | Standard | Housing Base: | Solid |
| Seal Type: | Single Lip Contact Seal | Speed (Max): | 4650 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Locking Type: | Setscrew |
| Relubricatable: | No | Housing Construction: | One Piece |
| Bore Shape: | Straight | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | End Cap: | No |
| Options: | Reduced Maintenance - Lubed for Life - Air Handling | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Tapered Lands |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Housing Color: | Gray | UPC: | 662461368893 |
| Weight: | 5.40 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
