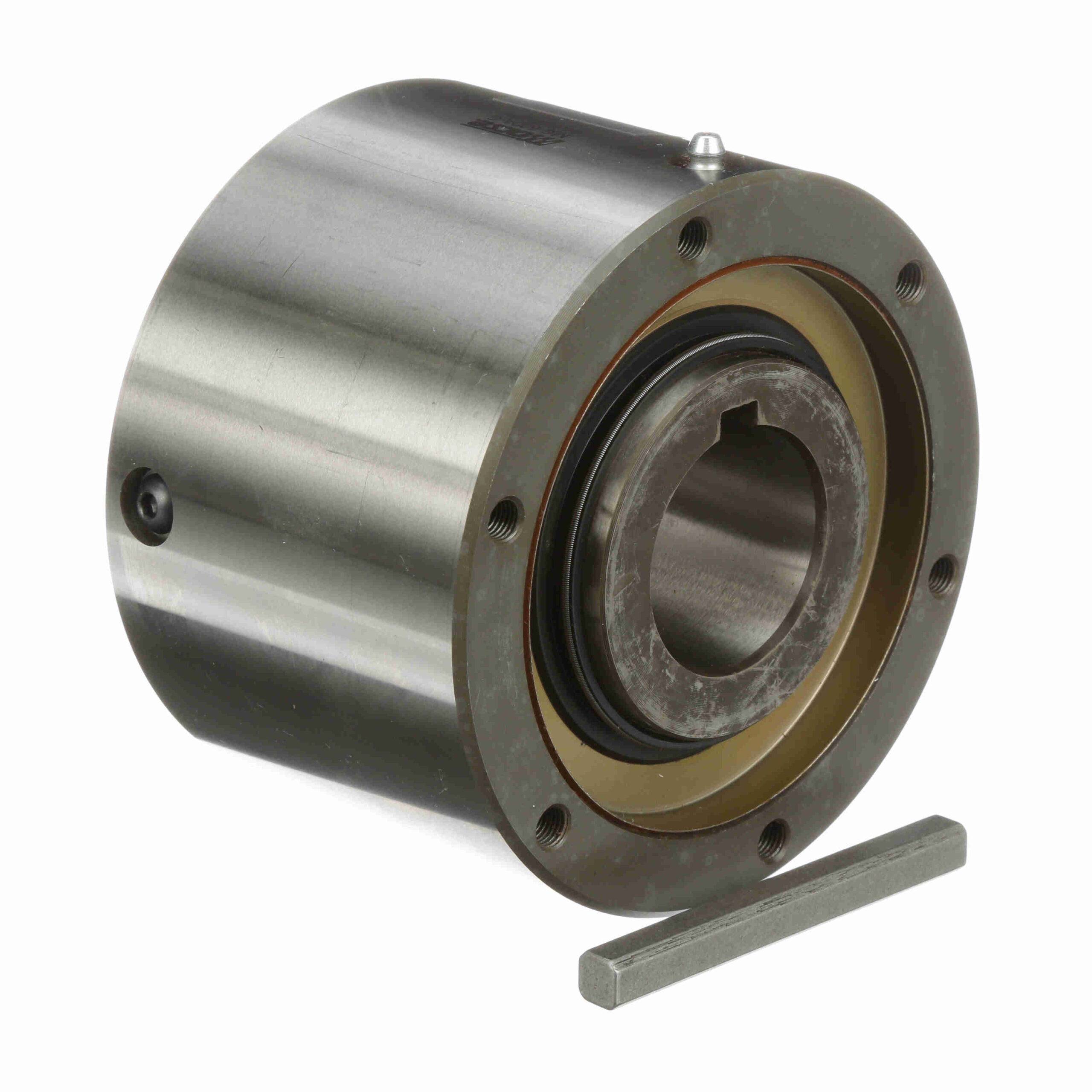

MG600A-G 1-1/2FB CL

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Type:	CAM Clutches	Mode of Operation:	General duty all types
Rated Torque Capacity (ft.-lbs.):	2, 250	Outer Width (in):	3.625 in
Inner Race Width (in):	3.75 in	RPM Max. - Outer Race:	700
Product Type:	M Series	Model:	MG
Clutch size code:	600	Overall Diameter (in):	5.375 in
Add'l Bearing Support Requirement:	No	Overrunning Clutch:	Yes
Bore (Min) (in):	1.25 in	Bore Size (in):	1.5 in
Backstopping Clutch:	Yes	Bore (Max) (in):	2 in
Indexing Clutch:	Yes	Lubrication Type:	Grease
Nominal Overrunning Drag (ft-lb):	0.63	RPM Max. -inner Race:	1, 800
UPC:	662288501510	Weight:	19.00 LB
Packaged Length:	5.19 Inches	Packaged Width:	5.19 Inches
Packaged Height:	4.57 Inches	HTC:	8483.60.4040
Country of Origin:	Mexico
