- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
- MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.
MG400A-G 7/8FB CL

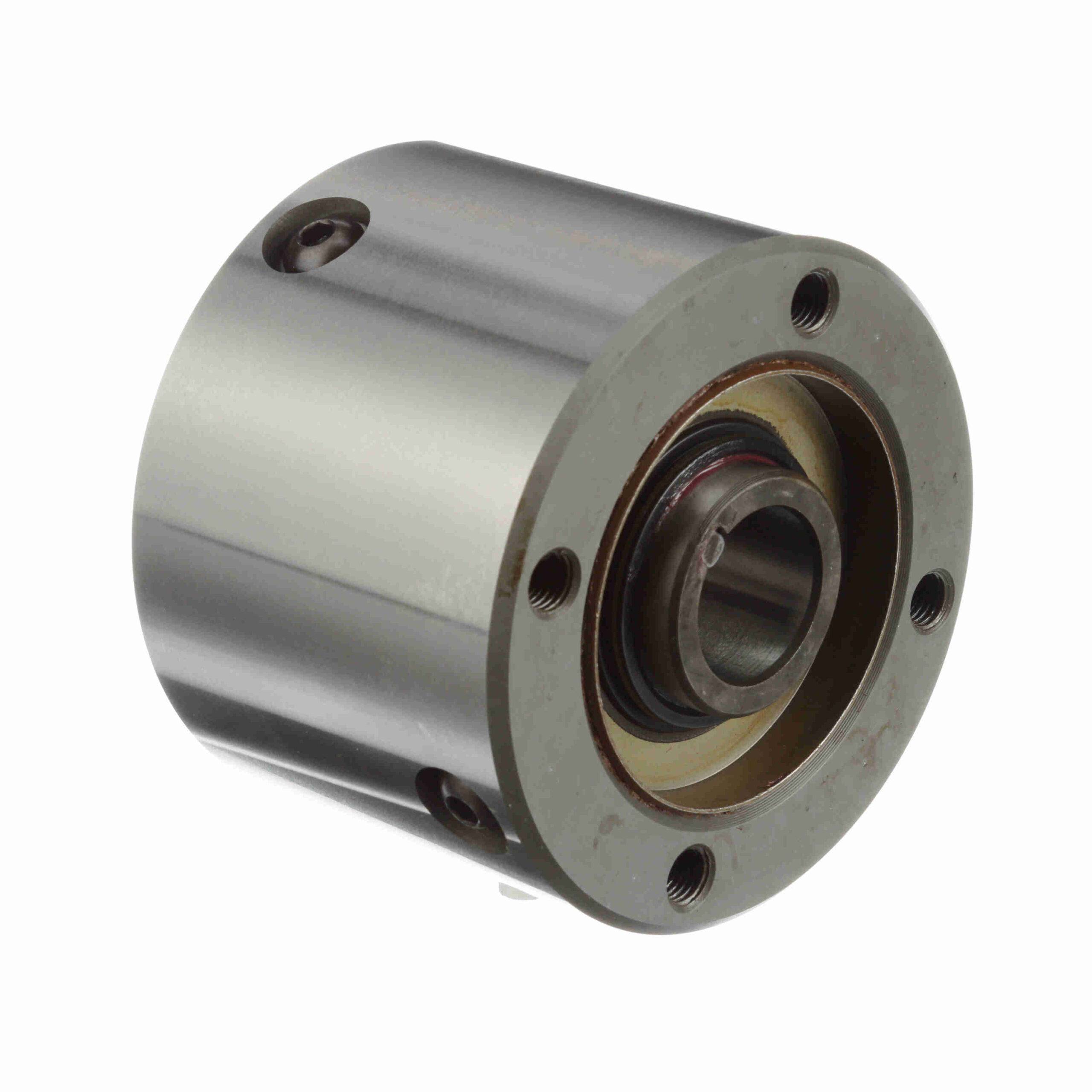

Morse M Series CAM Clutch – MG400A-G 7/8FB CL
$2,356.02
Out of stock
Out of stock
| Overall Diameter (in): | 3.5 in | RPM Max. - Outer Race: | 800 |
|---|---|---|---|
| Model: | MG | Clutch size code: | 400 |
| Product Type: | M Series | Mode of Operation: | General duty all types |
| Outer Width (in): | 2.625 in | Inner Race Width (in): | 2.75 in |
| Type: | CAM Clutches | Rated Torque Capacity (ft.-lbs.): | 400 |
| RPM Max. - Inner Race: | 2700 | Add'l Bearing Support Requirement: | No |
| Bore (Min) (in): | 0.625 in | Bore Size (in): | 0.875 in |
| Bore (Max) (in): | 0.875 in | Backstopping Clutch: | Yes |
| Overrunning Clutch: | Yes | Lubrication Type: | Grease |
| Indexing Clutch: | Yes | Nominal Overrunning Drag (ft-lb): | 0.21 |
| UPC: | 662288501121 | Weight: | 5.67 LB |
| Packaged Length: | 4.70 Inches | Packaged Width: | 4.40 Inches |
| Packaged Height: | 3.30 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Mexico |
