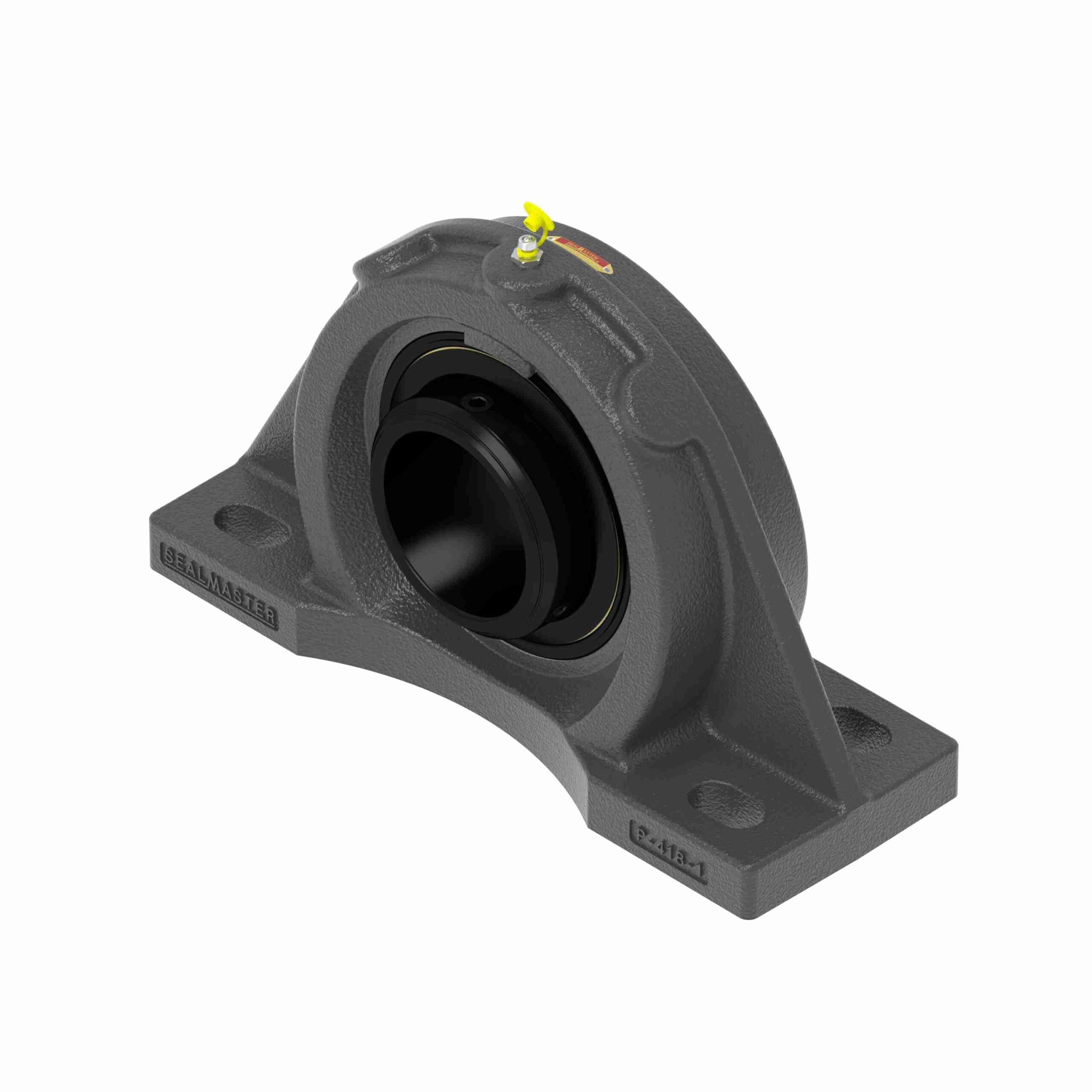

MFPD-71

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Measure Units:	Inch	Housing Base:	Solid
Retainer Type:	Land Riding Retainer	Housing Type:	Pillow Block, Four Bolt
Rolling Element:	Ball Bearing	Seal Type:	Felt Labyrinth Seal
Housing Material:	Cast Iron	Insert No.:	3-47D
Duty Series:	Medium Duty	Expansion:	No
Inner-Race Heat-Treat Method:	Zone-Hardened	Speed (Max):	1950
Insert Material:	52100 Bearing Steel, Black Oxided	Maximum Operating Temperature:	220 °F
Relubricatable:	Yes	Lubrication:	Lithium Complex NLGI 2 Grease
Bore Shape:	Straight	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Locking Type:	Double Setscrew
Internal Clearance:	Standard	Platform:	Gold Line Ball Bearing
End Cap:	No	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Replaceable Insert:	Yes
Housing Color:	Gray	Misalignment Type:	Static Only
UPC:	662461016626	Weight:	121.50 LB
Packaged Length:	14.13 Inches	Packaged Width:	20.13 Inches
Packaged Height:	6.75 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
