- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MFP-40C

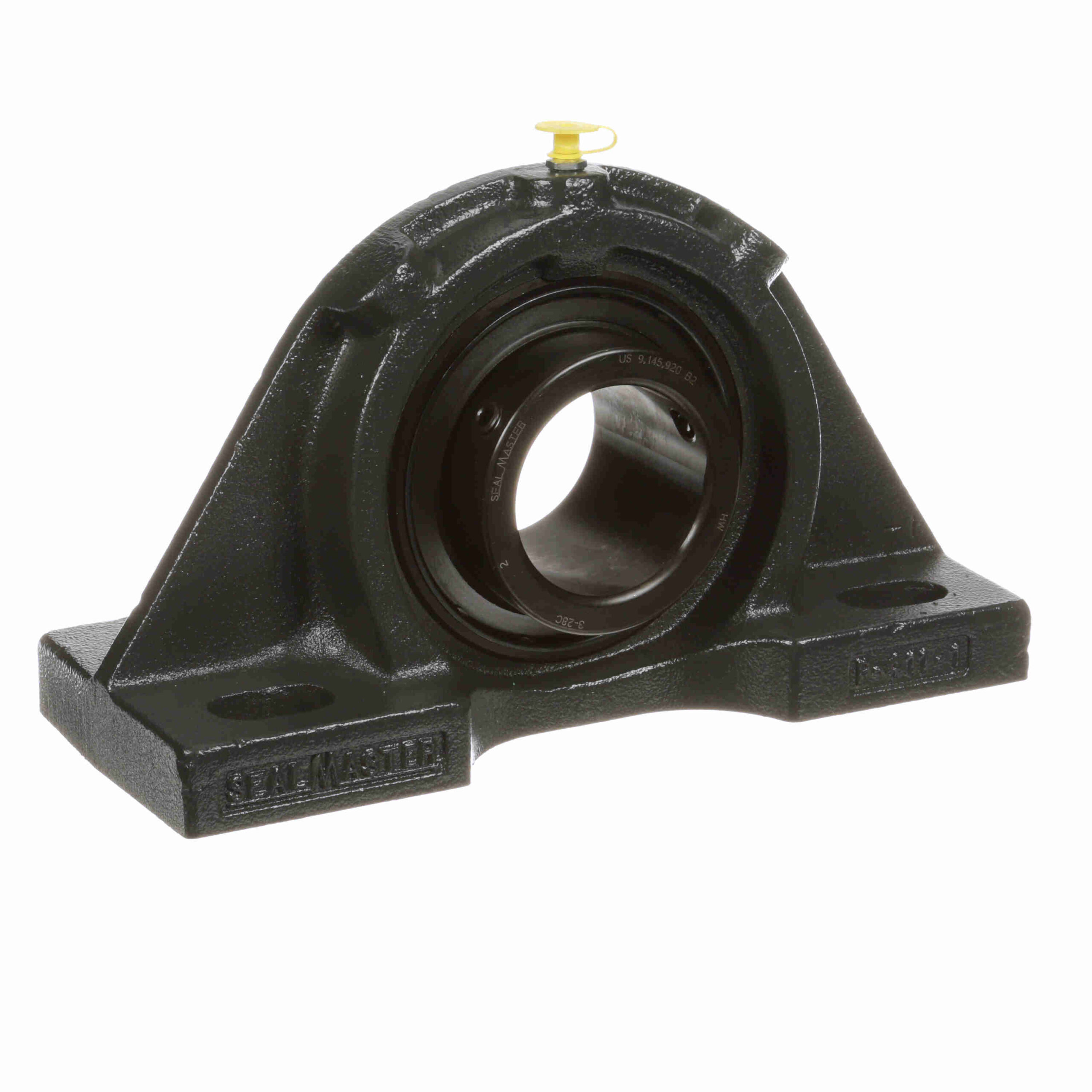

Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MFP-40C
$1,560.73
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Measure Units: | Inch | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Misalignment: | ±2.0° Misalignment - Static Only | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Housing Color: | Gray |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Type: | Pillow Block, Four Bolt |
| Maximum Speed (RPM): | 2225 rpm | Housing Style: | Pillow Block |
| Duty/Series: | Medium Duty | Fixed vs. Expansion: | Fixed |
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
| Locking Type: | Setscrew | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Inner Race Heat Treat Method: | Zone-Hardened |
| Insert Number: | 3-28C | UPC: | 662461000000 |
| Weight: | 23.30 LB | Packaged Length: | 14 Inches |
| Packaged Width: | 8.13 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
