- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MFCD-39

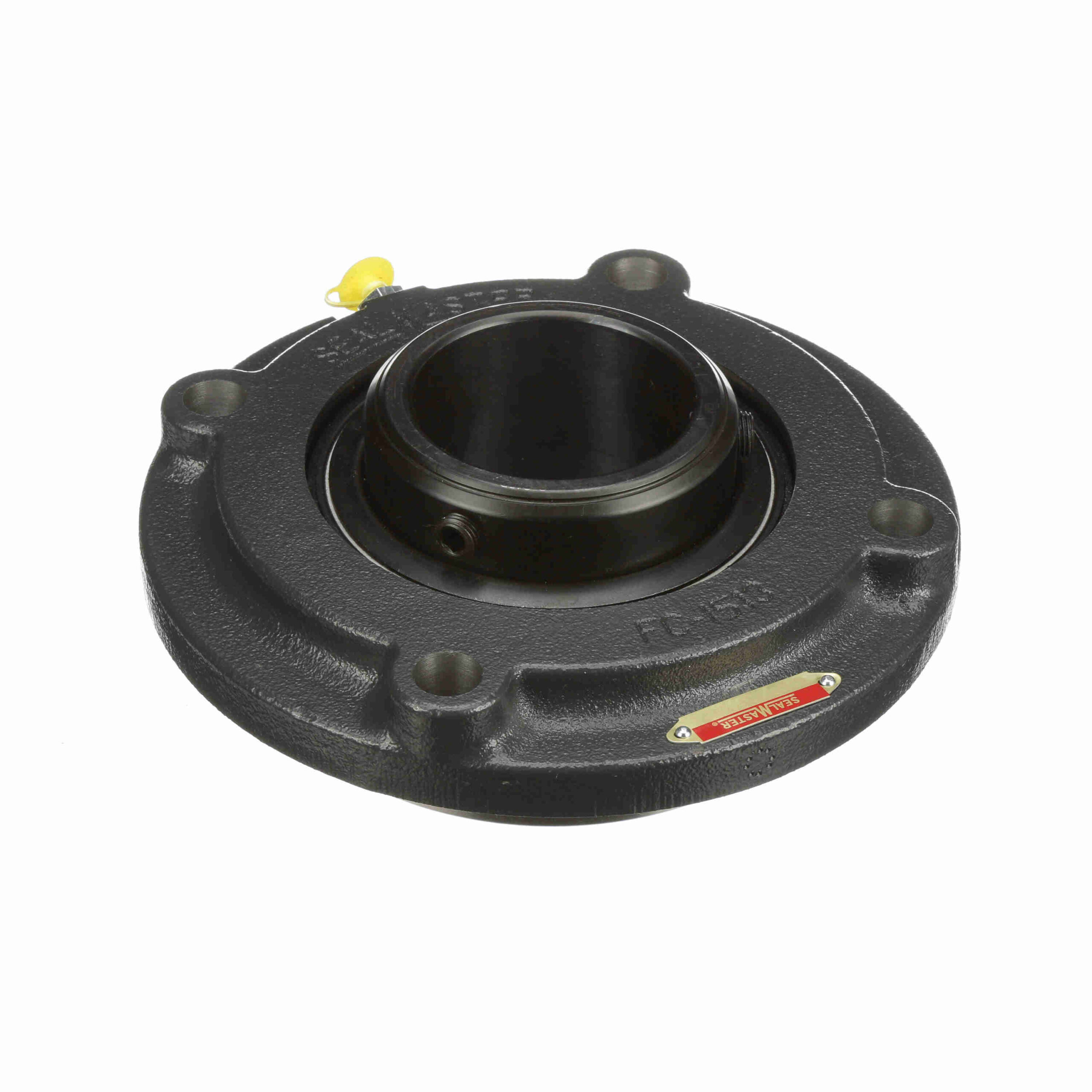

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – MFCD-39
$782.13
Out of stock
Out of stock
| Grease Fitting Thread Size: | 0.125 | Replaceable Insert: | Yes |
|---|---|---|---|
| Housing Construction: | One Piece | Precision Rating: | ABEC 1 |
| Insert No.: | 3-27D | Misalignment: | ±2.0° Misalignment - Static Only |
| Retainer Type: | Land Riding Retainer | Rolling Element: | Ball Bearing |
| Measure Units: | Inch | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Platform: | Gold Line Ball Bearing |
| Series: | MFCD | Seal Type: | Felt Labyrinth Seal |
| Insert Material: | 52100 Bearing Steel | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Duty Series: | Medium Duty |
| Maximum Operating Temperature: | 220 °F | Radial Static Load Capacity (lb): | 10, 063 |
| Internal Clearance: | Standard | Cage Material: | Brass |
| Radial Dynamic Load Capacity (lb): | 13, 971 | Housing Type: | Flange Cartridge |
| End Cap: | No | Bore Shape: | Straight |
| Locking Type: | Setscrew | Outer Ring Land Profile: | Standard |
| Expansion: | No | Housing Material: | Cast Iron |
| Speed (Max): | 3600 | Housing Color: | Gray |
| UPC: | 662461017043 | Weight: | 14.00 LB |
| Packaged Length: | 8.13 Inches | Packaged Width: | 7.94 Inches |
| Packaged Height: | 3.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
