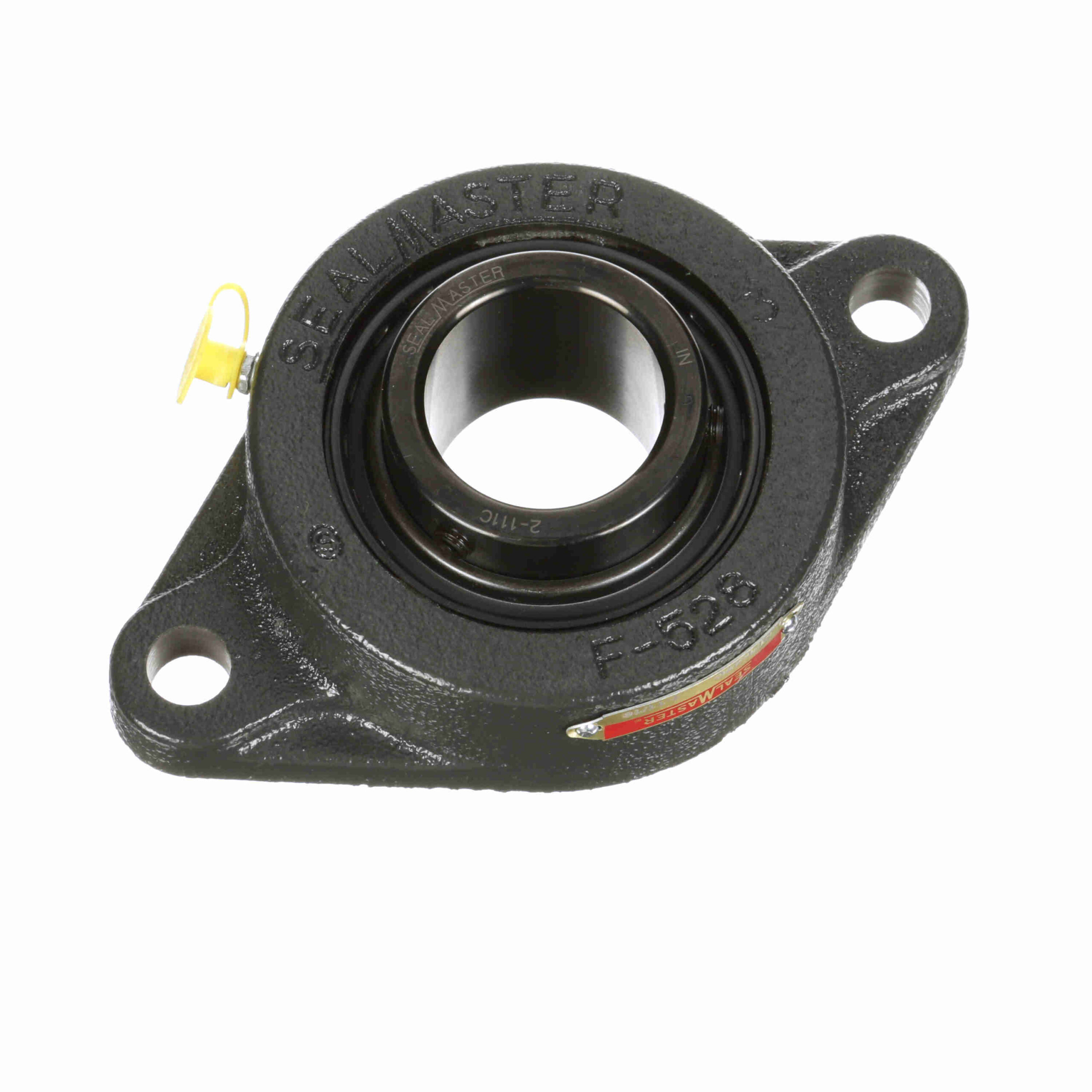

SFT-27C

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Single Lip Contact Seal	Housing Material:	Cast Iron
Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel, Black Oxided
Expansion:	No	Duty Series:	Standard Duty
Inner-Race Heat-Treat Method:	Zone-Hardened	Rolling Element:	Ball Bearing
Housing Base:	Solid	Measure Units:	Inch
Retainer Type:	Land Riding Retainer	Insert No.:	2-111C
Relubricatable:	Yes	Pilot Configuration:	No Pilot
Bore Shape:	Straight	Housing Construction:	One Piece
Speed (Max):	3800	Lubrication:	Lithium Complex NLGI 2 Grease
Misalignment:	±2.0° Misalignment - Static Only	Locking Type:	Setscrew
Housing Type:	Flange, Two Bolt	Internal Clearance:	Standard
End Cap:	No	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Housing Color:	Gray
Bearing Insert Coating:	Black Oxide Coated	Misalignment Type:	Static Only
Platform:	Gold Line Ball Bearing	UPC:	662461022702
Weight:	4.85 LB	Packaged Length:	4.63 Inches
Packaged Width:	2.31 Inches	Packaged Height:	7.5 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
