- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MFC-36T

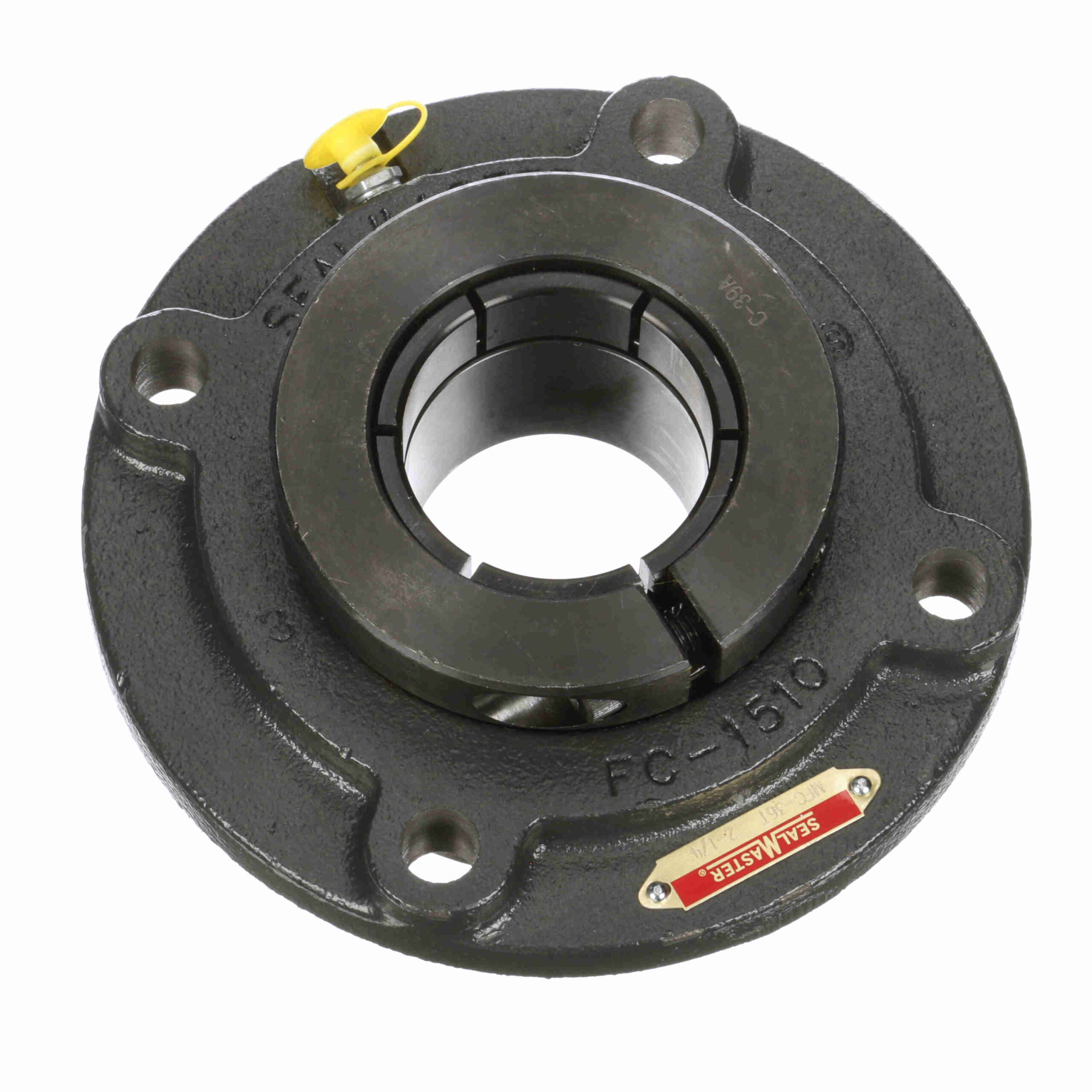

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – MFC-36T
$560.32
Out of stock
Out of stock
| Measure Units: | Inch | Housing Type: | Flange, Piloted |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Seal Type: | Felt Labyrinth Seal | Bore Shape: | Straight |
| Maximum Operating Temperature: | 220 °F | Housing Base: | Solid |
| Insert No.: | 2-24T | Duty Series: | Medium Duty |
| Expansion: | No | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Internal Clearance: | Standard | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Locking Type: | Concentric | Speed (Max): | 4100 |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| Housing Color: | Gray | UPC: | 662461031803 |
| Weight: | 10.54 LB | Packaged Length: | 7.5 Inches |
| Packaged Width: | 7.38 Inches | Packaged Height: | 2.63 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
