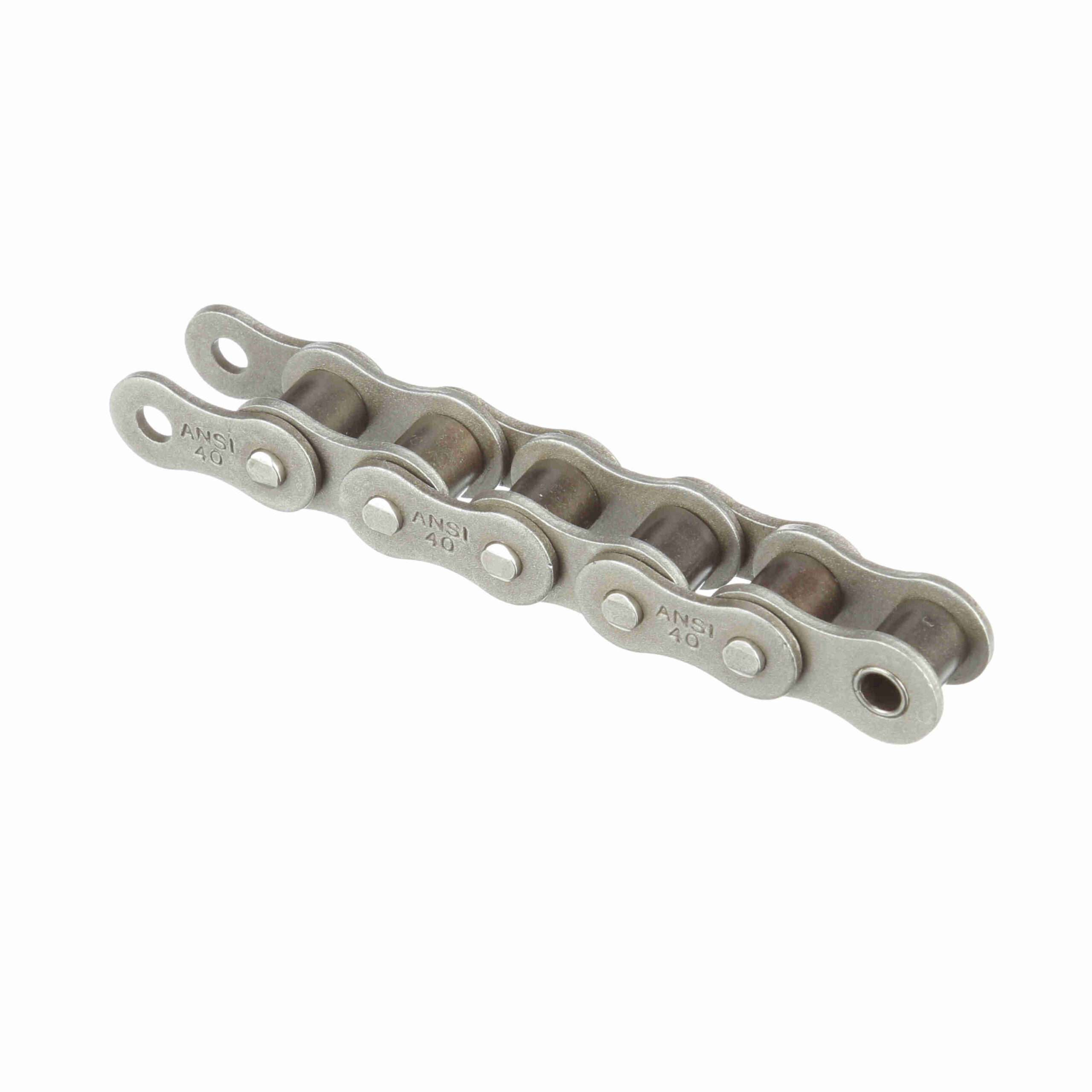

J40 RIV 100 FT CH

Exceptional Quality and Performance in Browning Chain
Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Chain Construction:	Riveted	Centerline to Opposite cotter Pin Side:	0.315
Number of Strands/Width:	1	Centerline to Outside of cotter Pin:	0.38
Average Ultimate Tensile Strength (psi):	3, 700	Material:	Steel
Plate Thickness:	0.06	Inside Plate Height:	0.466
Roller Width (in):	0.3125 in	Pin Diameter (in):	0.156 in
Roller Diameter (in):	0.312 in	Chain Size:	40
Chain Type:	Standard	Product Type:	Roller Chain
Chain Pitch (in):	0.5 in	Width Over Pins/Total Width:	0.7
Total Length:	100 ft	Coating:	Uncoated
Standard Met:	ANSI B29.1	Measurement System:	Imperial
Pin Length - Riveted:	0.647	UPC:	662289500871
Weight:	0.44 LB	Packaged Length:	12.70 Inches
Packaged Width:	9.60 Inches	Packaged Height:	10.80 Inches
HTC:	7315.11.0060	Country of Origin:	Thailand
