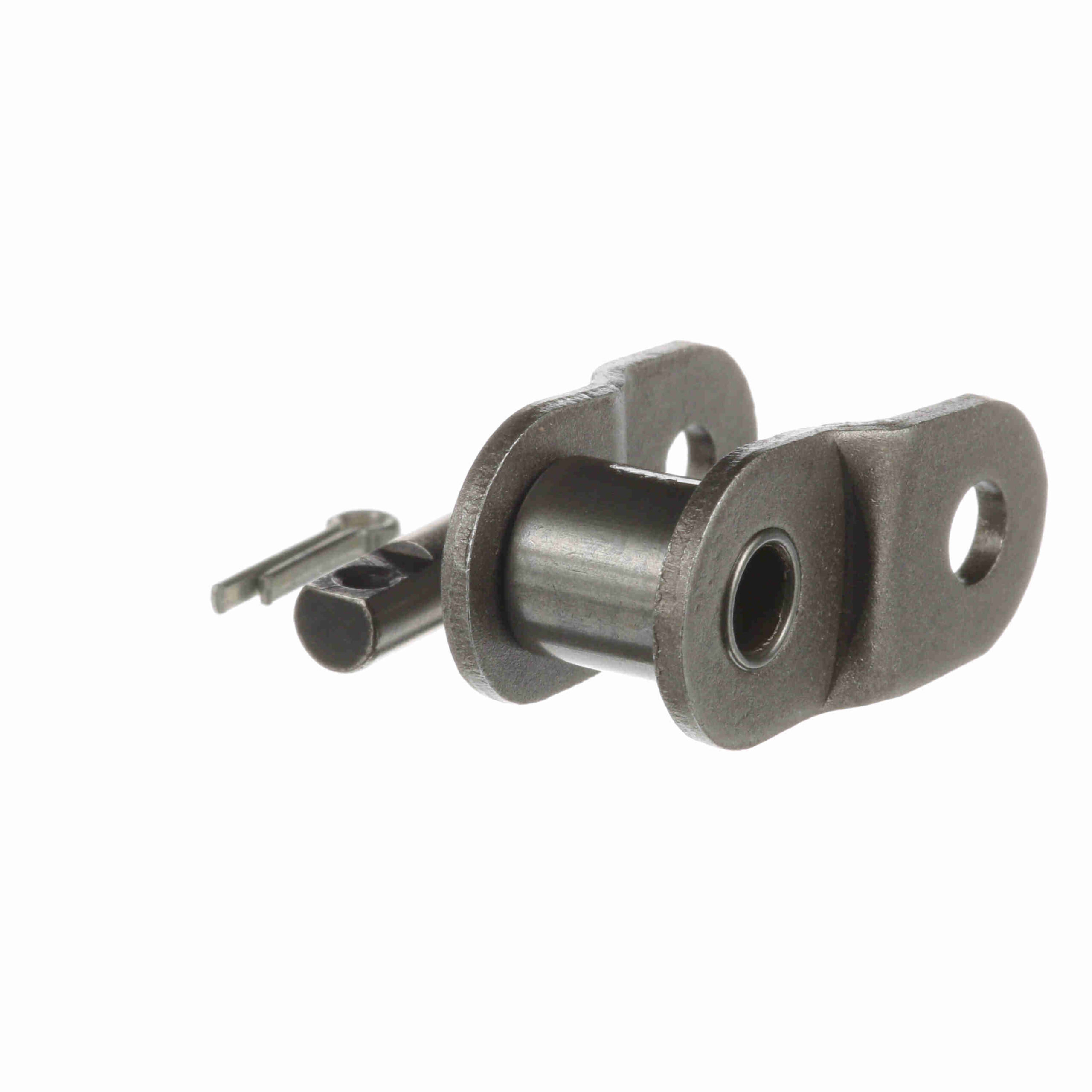

J40 O/S C/L

Exceptional Quality and Performance in Browning Chain
Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Chain Size:	40	Roller Diameter (in):	0.312 in
Inside Plate Height:	0.466	Centerline to Outside of cotter Pin:	0.38
Roller Width (in):	0.3125 in	Material:	Steel
Plate Thickness:	0.06	Pin Diameter (in):	0.156 in
Centerline to Opposite cotter Pin Side:	0.315	Number of Strands/Width:	1
Average Ultimate Tensile Strength (psi):	3, 700	Chain Type:	Standard
Chain Pitch (in):	0.5 in	Product Type:	Roller Chain
Chain Construction:	Cottered	Link Type:	Offset Connecting
UPC:	662289198269	Weight:	0.02 LB
Packaged Length:	2.20 Inches	Packaged Width:	1.10 Inches
Packaged Height:	0.45 Inches	HTC:	7315.19.0000
Country of Origin:	Taiwan, Republic of China
