- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H80Q19

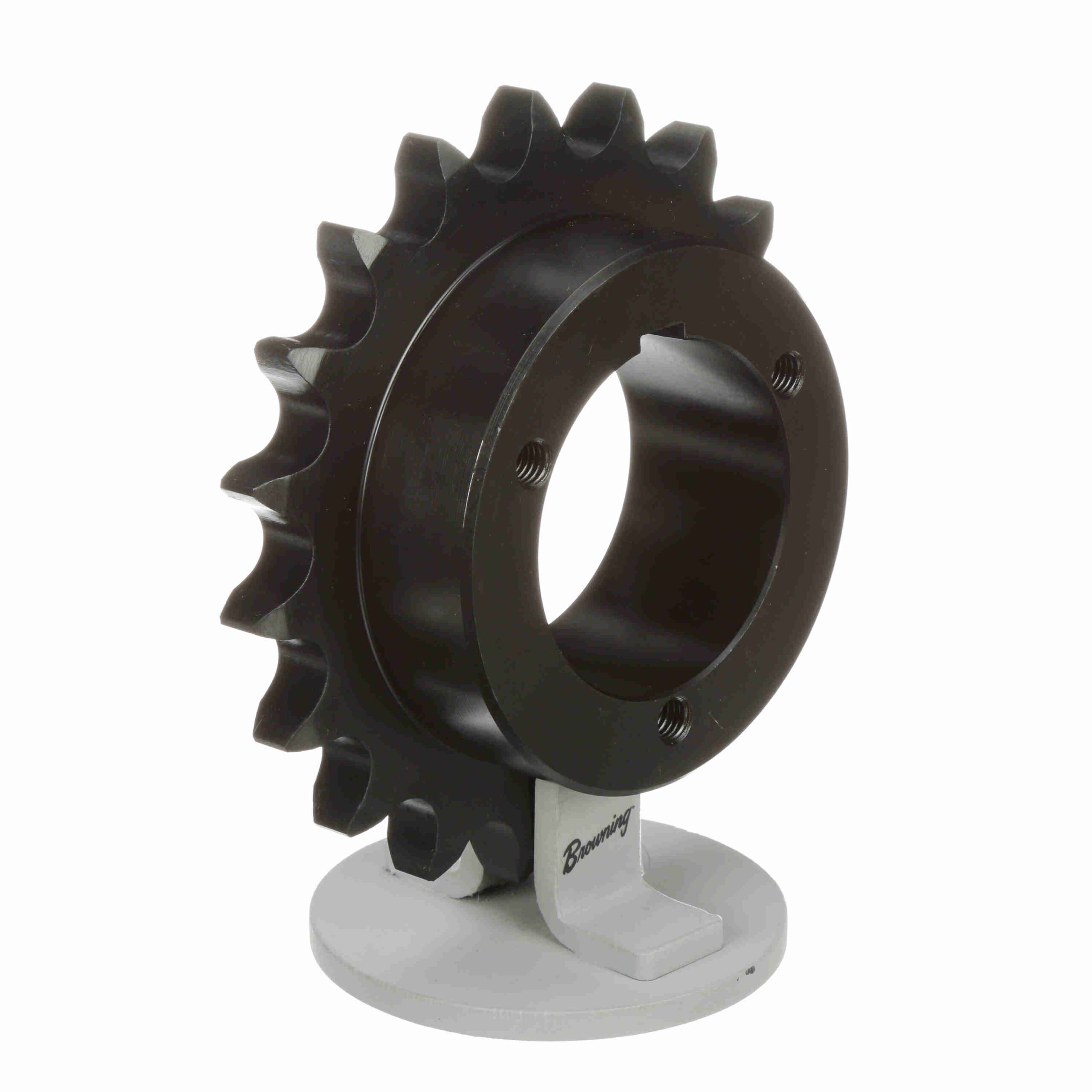

Browning Steel Bushed Bore Roller Chain Sprocket – H80Q19
$320.18
Out of stock
Out of stock
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Number of teeth: | 19 |
| Bushing Used: | Split Taper | Pitch Diameter (in): | 6.076 in |
| Bore (Min) (in): | 0.75 in | Chain Pitch (in): | 1 in |
| Bore (Max) (in): | 2.6875 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 6.593 in | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.575 | UPC: | 662289126194 |
| Weight: | 6.70 LB | Packaged Length: | 8.60 Inches |
| Packaged Width: | 8.60 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
