- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60Q25

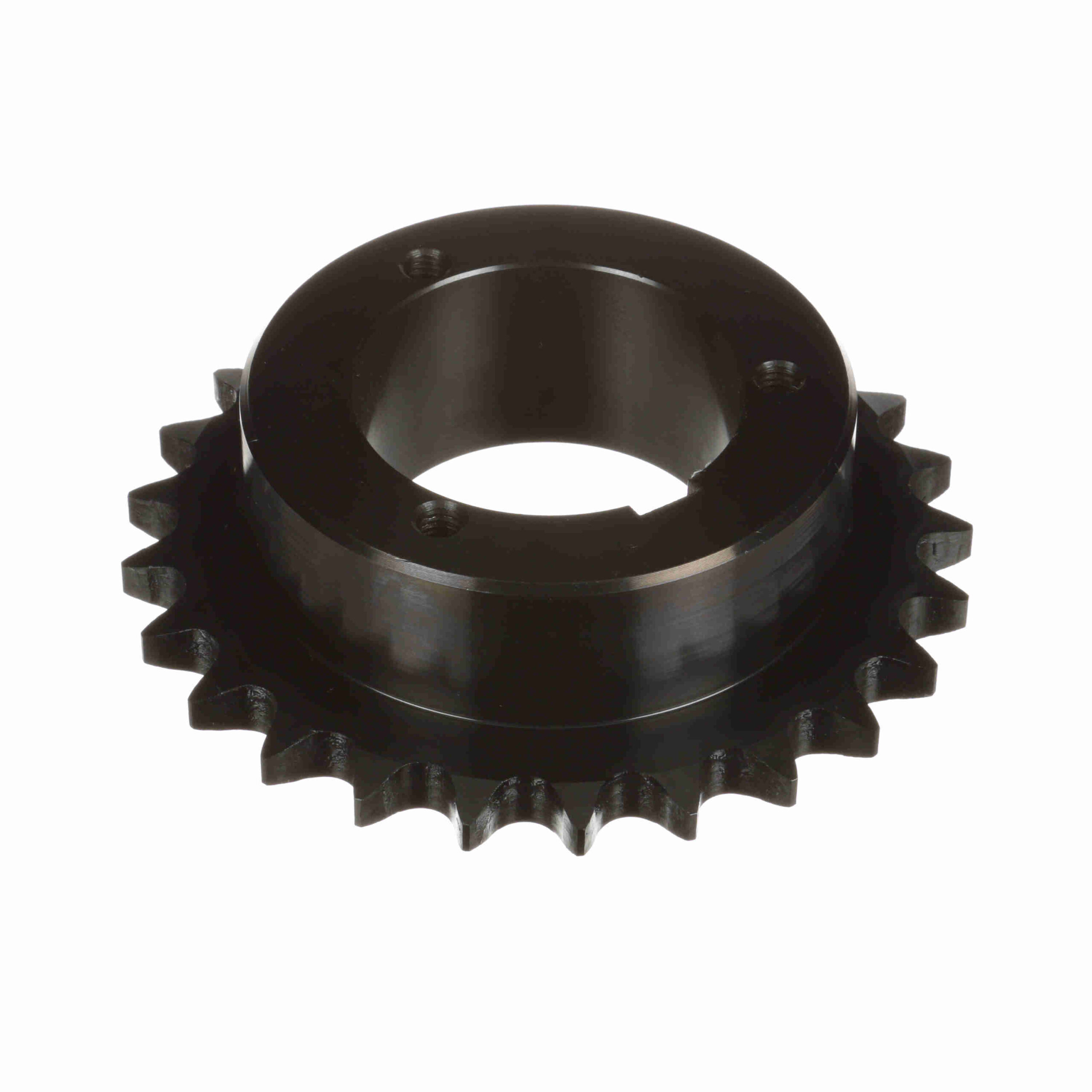

Browning Steel Bushed Bore Roller Chain Sprocket – H60Q25
$267.03
Out of stock
Out of stock
| Bore (Max) (in): | 2.6875 in | Number of teeth: | 25 |
|---|---|---|---|
| Bushing Used: | Split Taper | Material: | Steel, Hardened Teeth |
| Pitch Diameter (in): | 5.984 in | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Product Type: | Bushed Roller Chain Sprocket | Chain Pitch (in): | 0.75 in |
| Bore (Min) (in): | 0.75 in | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 6.387 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.459 | UPC: | 662289265916 |
| Weight: | 6.16 LB | Packaged Length: | 7.30 Inches |
| Packaged Width: | 7.20 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
