- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H100Q12

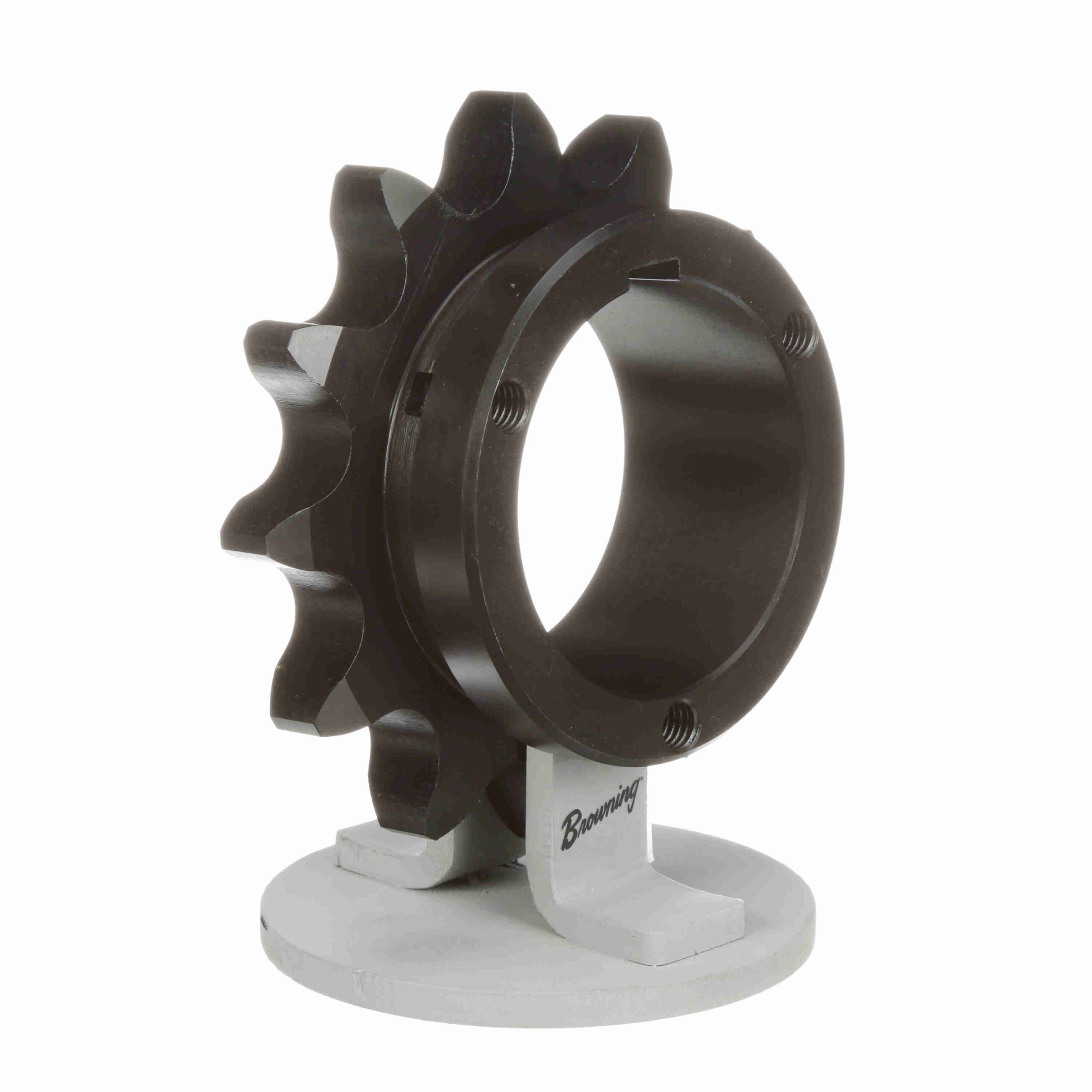

Browning Steel Bushed Bore Roller Chain Sprocket – H100Q12
$220.59
Out of stock
Out of stock
| Pitch Diameter (in): | 4.83 in | Number of teeth: | 12 |
|---|---|---|---|
| Chain Pitch (in): | 1.25 in | Bore (Max) (in): | 2.6875 in |
| Product Type: | Bushed Roller Chain Sprocket | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Material: | Steel, Hardened Teeth | Bore (Min) (in): | 0.75 in |
| Bushing Used: | Split Taper | Overall Length (in): | 2.828125 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 5.415 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.692 |
| Number of Hubs: | 1 | UPC: | 662289196302 |
| Weight: | 3.32 LB | Packaged Length: | 5.80 Inches |
| Packaged Width: | 5.70 Inches | Packaged Height: | 2.10 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
