- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60P24

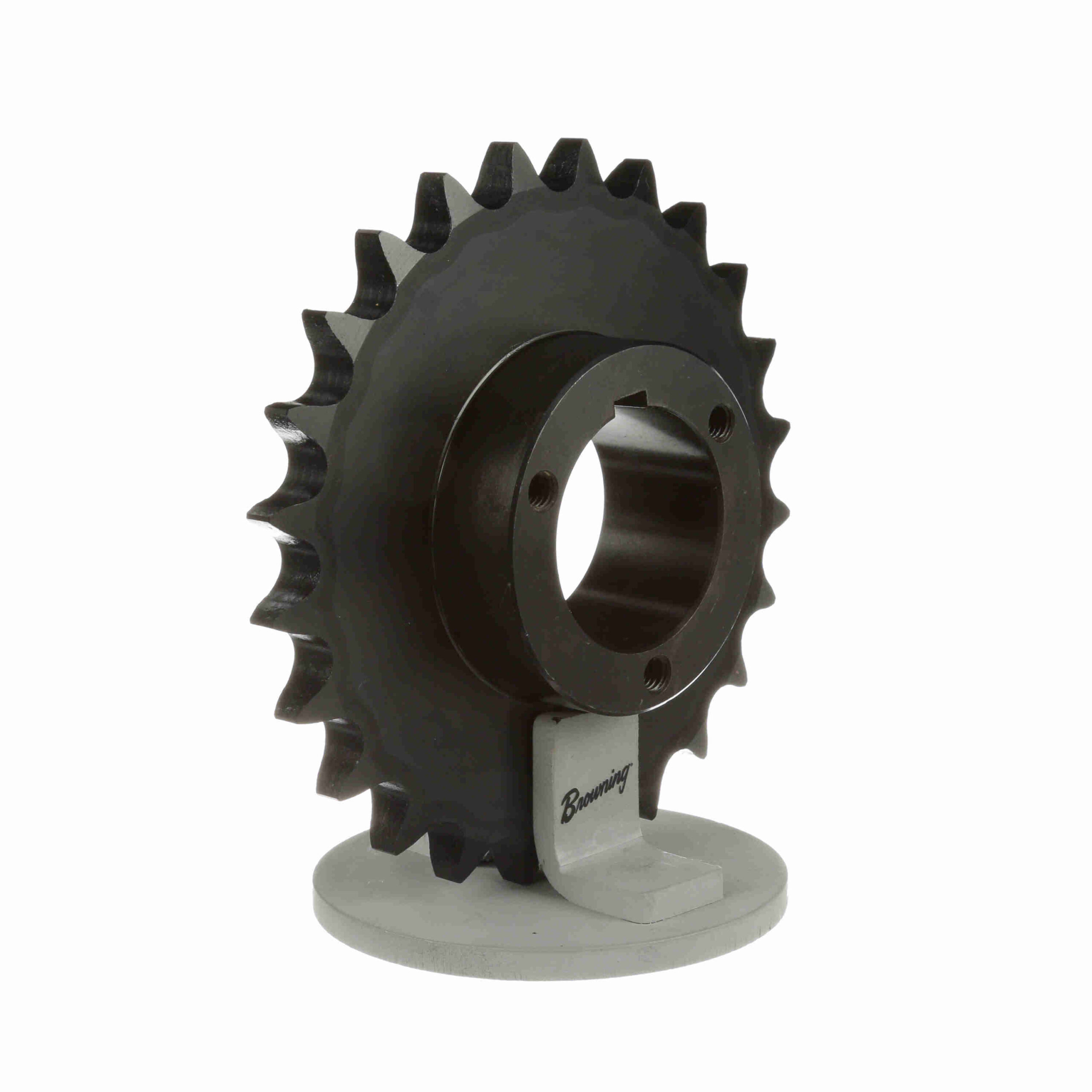

Browning Steel Bushed Bore Roller Chain Sprocket – H60P24
$261.00
Out of stock
Out of stock
| Bore (Max) (in): | 1.75 in | Chain Pitch (in): | 0.75 in |
|---|---|---|---|
| Bore (Min) (in): | 0.5 in | Pitch Diameter (in): | 5.746 in |
| Material: | Steel, Hardened Teeth | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Number of teeth: | 24 | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Outside Diameter (in): | 6.147 in |
| Overall Length (in): | 2.140625 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.459 | UPC: | 662289155835 |
| Weight: | 3.83 LB | Packaged Length: | 6.50 Inches |
| Packaged Width: | 6.10 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
