- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60P20

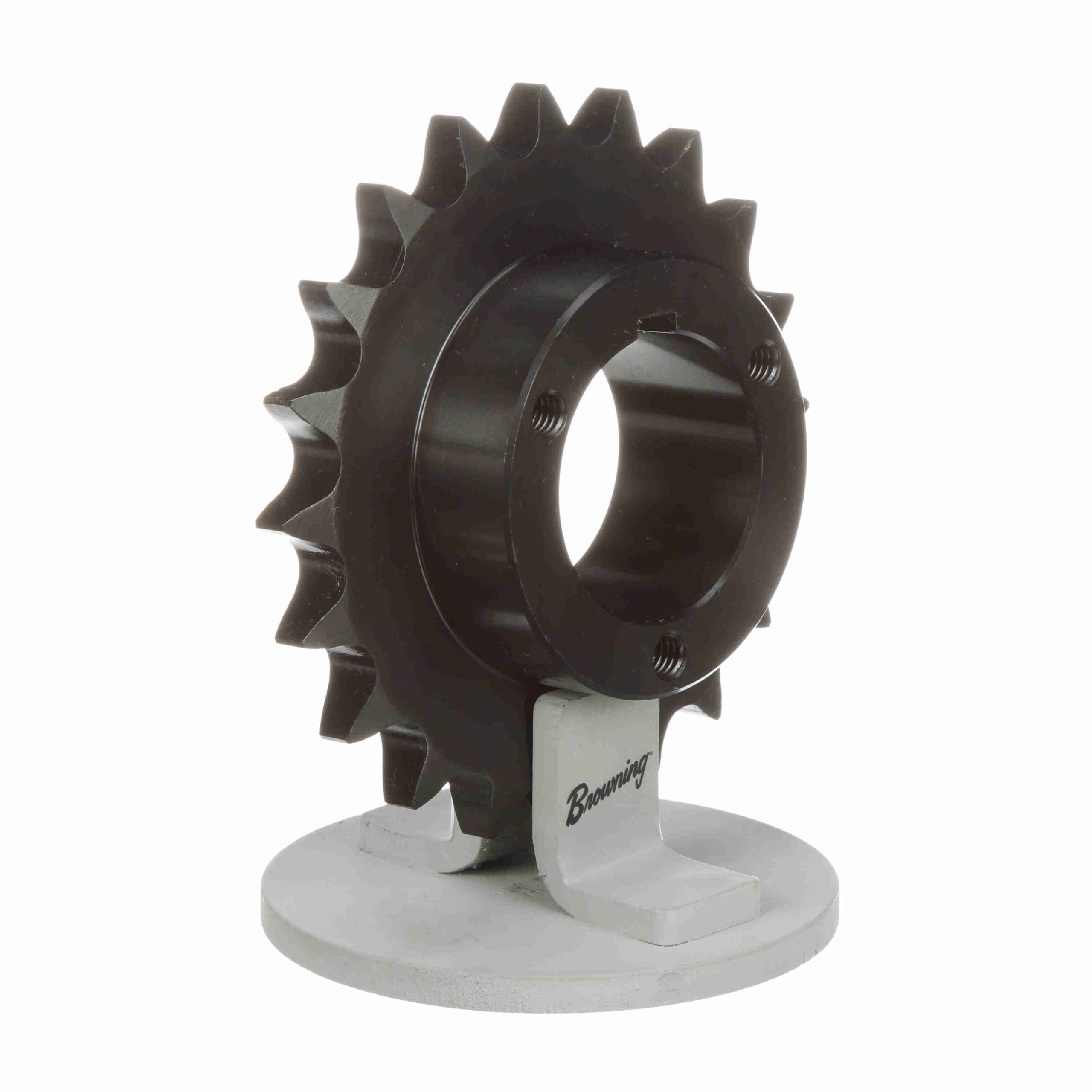

Browning Steel Bushed Bore Roller Chain Sprocket – H60P20
$204.84
Availability: 4 in stock
Availability: 4 in stock
| Bore (Max) (in): | 1.75 in | Material: | Steel, Hardened Teeth |
|---|---|---|---|
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Bore (Min) (in): | 0.5 in |
| Number of teeth: | 20 | Bushing Used: | Split Taper |
| Chain Pitch (in): | 0.75 in | Pitch Diameter (in): | 4.794 in |
| Product Type: | Bushed Roller Chain Sprocket | Outside Diameter (in): | 5.185 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.140625 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.459 | UPC: | 662289205783 |
| Weight: | 2.84 LB | Packaged Length: | 5.90 Inches |
| Packaged Width: | 5.10 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
