- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60P18

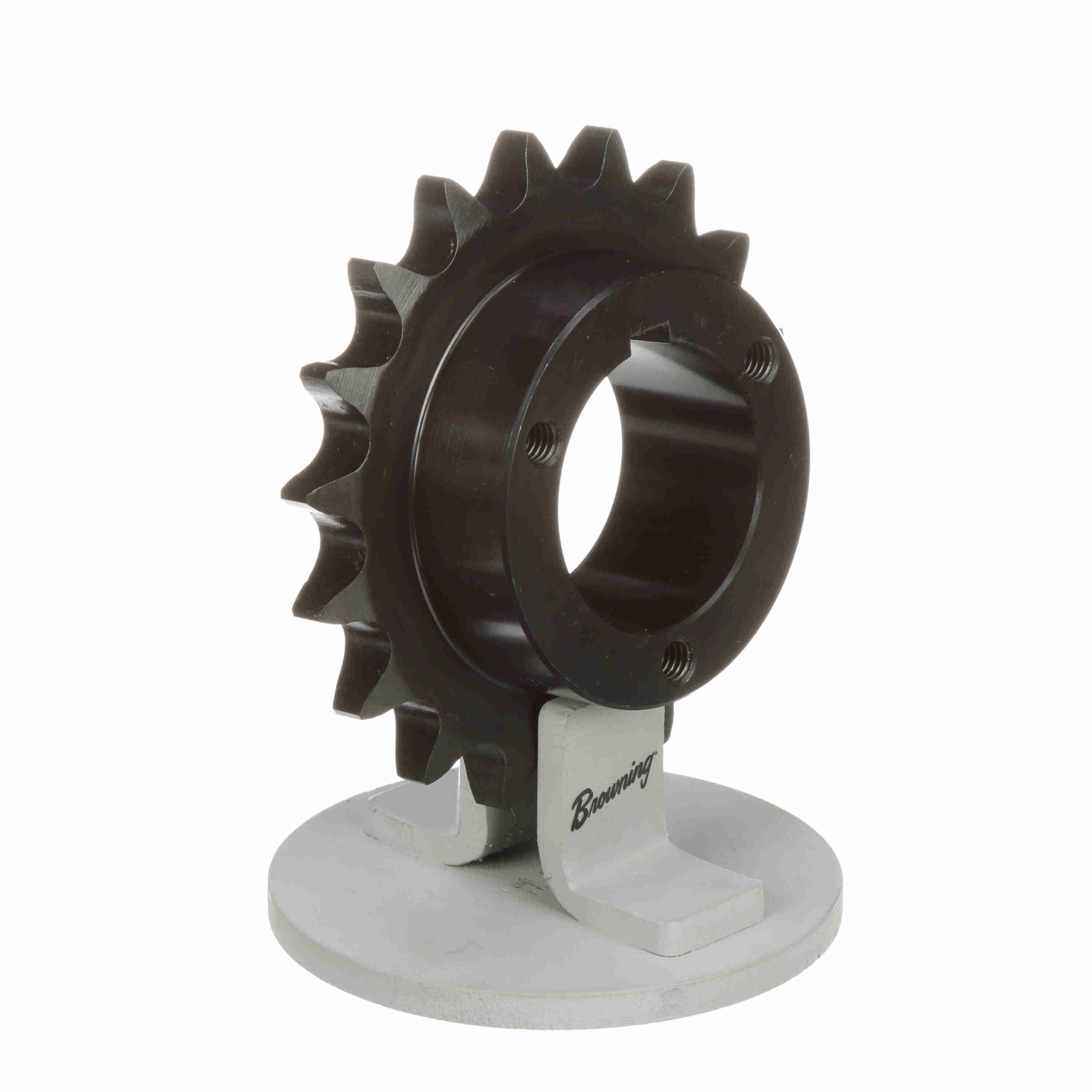

Browning Steel Bushed Bore Roller Chain Sprocket – H60P18
$204.69
Out of stock
Out of stock
| Bushing Used: | Split Taper | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Number of teeth: | 18 |
| Pitch Diameter (in): | 4.319 in | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Bore (Min) (in): | 0.5 in | Bore (Max) (in): | 1.75 in |
| Chain Pitch (in): | 0.75 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 4.703 in | Overall Length (in): | 2.140625 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Width Across Tooth Sets: | 0.459 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289215775 |
| Weight: | 2.41 LB | Packaged Length: | 5.80 Inches |
| Packaged Width: | 5.40 Inches | Packaged Height: | 1.80 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
