- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50H15

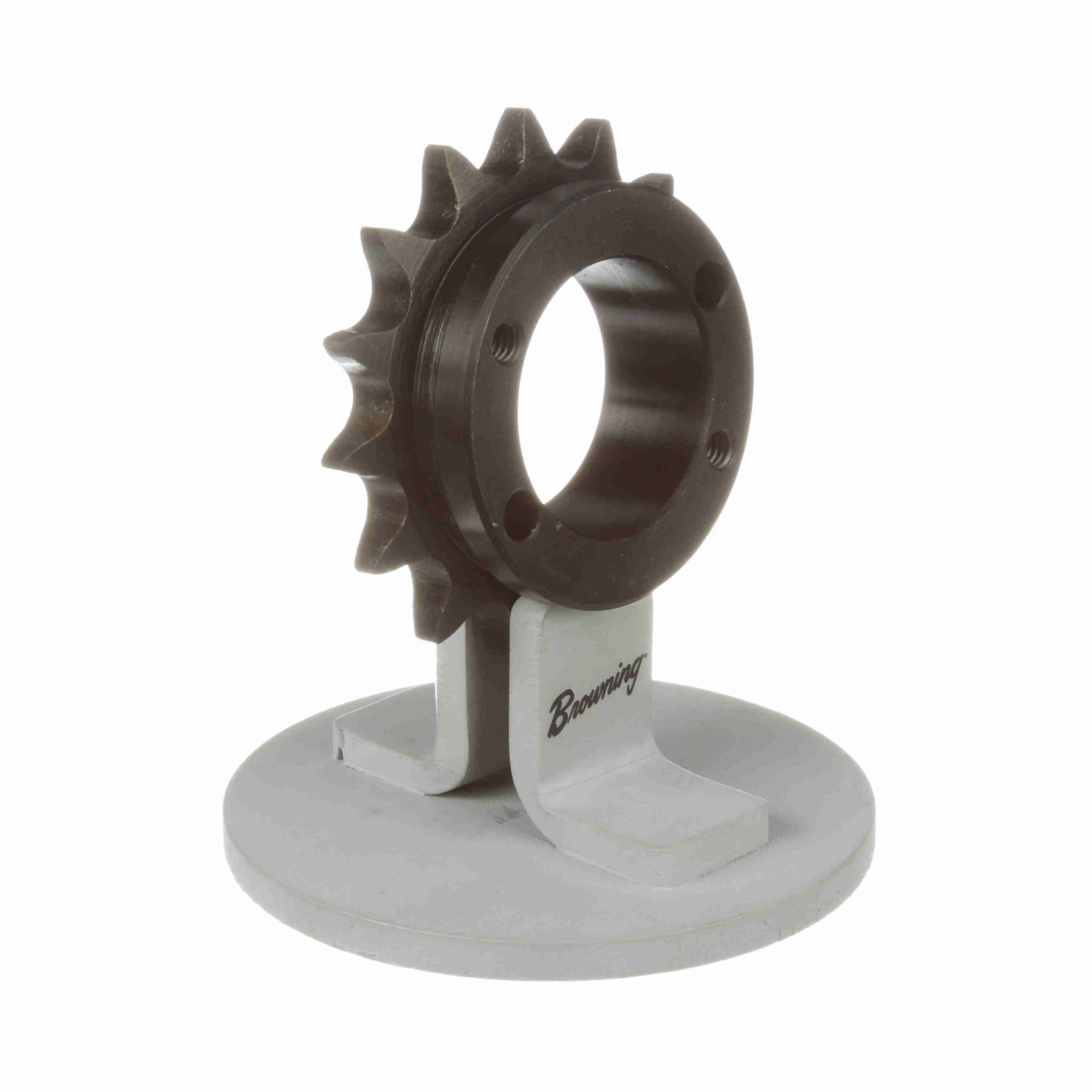

Browning Steel Bushed Bore Roller Chain Sprocket – H50H15
$111.70
Out of stock
Out of stock
| Chain Pitch (in): | 0.625 in | Bushing Used: | Split Taper |
|---|---|---|---|
| Bore (Max) (in): | 1.5 in | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
| Number of teeth: | 15 | Product Type: | Bushed Roller Chain Sprocket |
| Material: | Steel, Hardened Teeth | Pitch Diameter (in): | 3.006 in |
| Bore (Min) (in): | 0.375 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 1.50625 in | Outside Diameter (in): | 3.315 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Maximum Bore (in): | 1.5 | Minimum Bore (in): | 0.375 |
| Width Across Tooth Sets: | 0.343 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289305063 |
| Weight: | 0.79 LB | Packaged Length: | 3.50 Inches |
| Packaged Width: | 3.50 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
