- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H5010X1

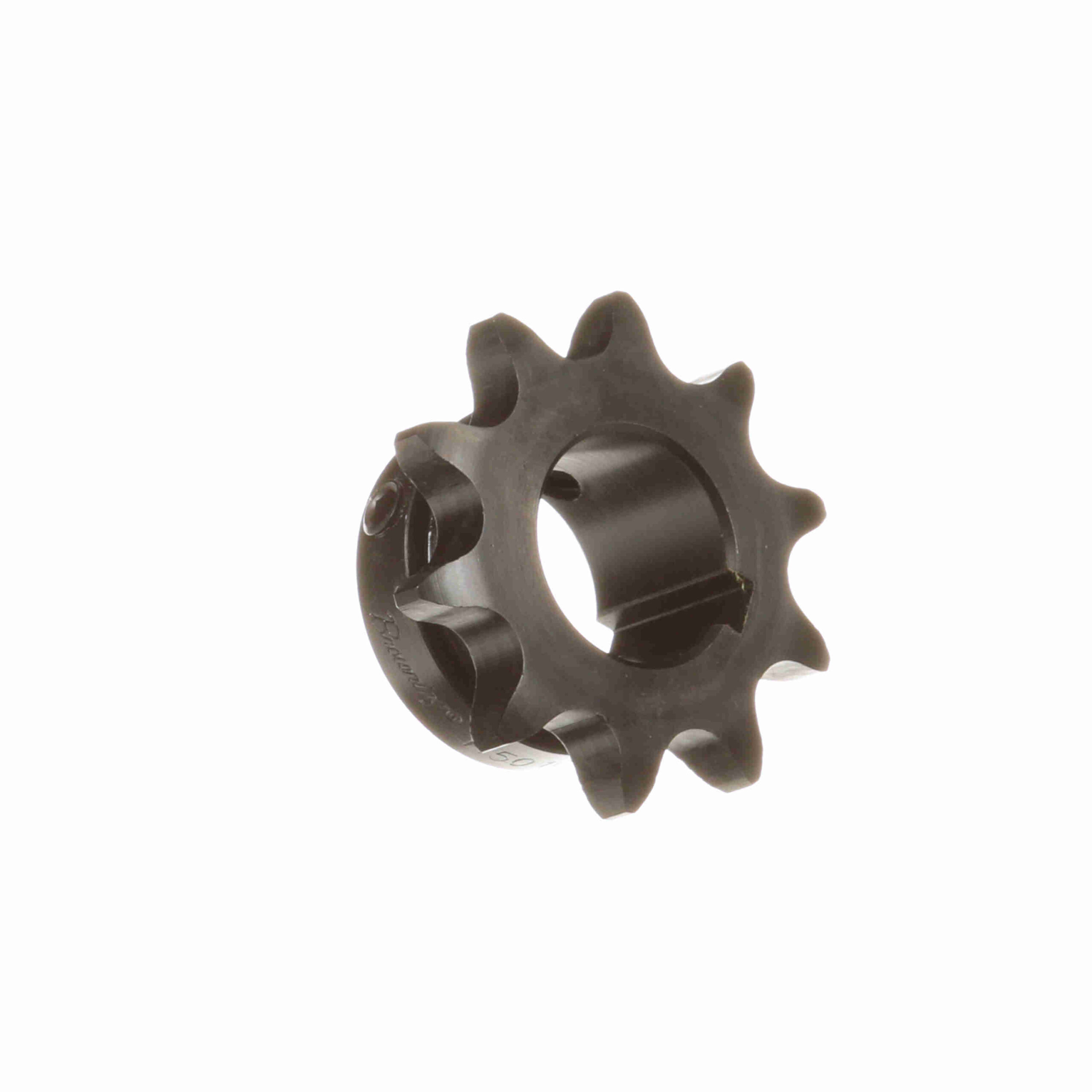

Browning Steel Finished Bore Roller Chain Sprocket – H5010X1
Out of stock
| Number of teeth: | 10 | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
|---|---|---|---|
| Pitch Diameter (in): | 2.023 in | Product Type: | Finished Bore Roller Chain Sprocket |
| Material: | Steel, Hardened Teeth | Print Revision Level: | D |
| Chain Pitch (in): | 0.625 in | Outside Diameter (in): | 2.299 in |
| Bore Type: | Finished Bore | Bore (in): | 1 in |
| Number of Strands/Width: | 1 | Tooth Width (in): | 0.343 in |
| Hub Diameter (in): | 1.59375 in | Hub Type: | Type B |
| Hub Projection (in): | 0.662 in | Length Through Bore (in): | 1.016 in |
| Hardened Teeth: | With Hardened Teeth | Pitch Type: | Single |
| Keyway Size: | 1/4 x 1/8 | UPC: | 662289862634 |
| Weight: | 0.39 LB | Packaged Length: | 2.90 Inches |
| Packaged Width: | 3.00 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
