- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50P22

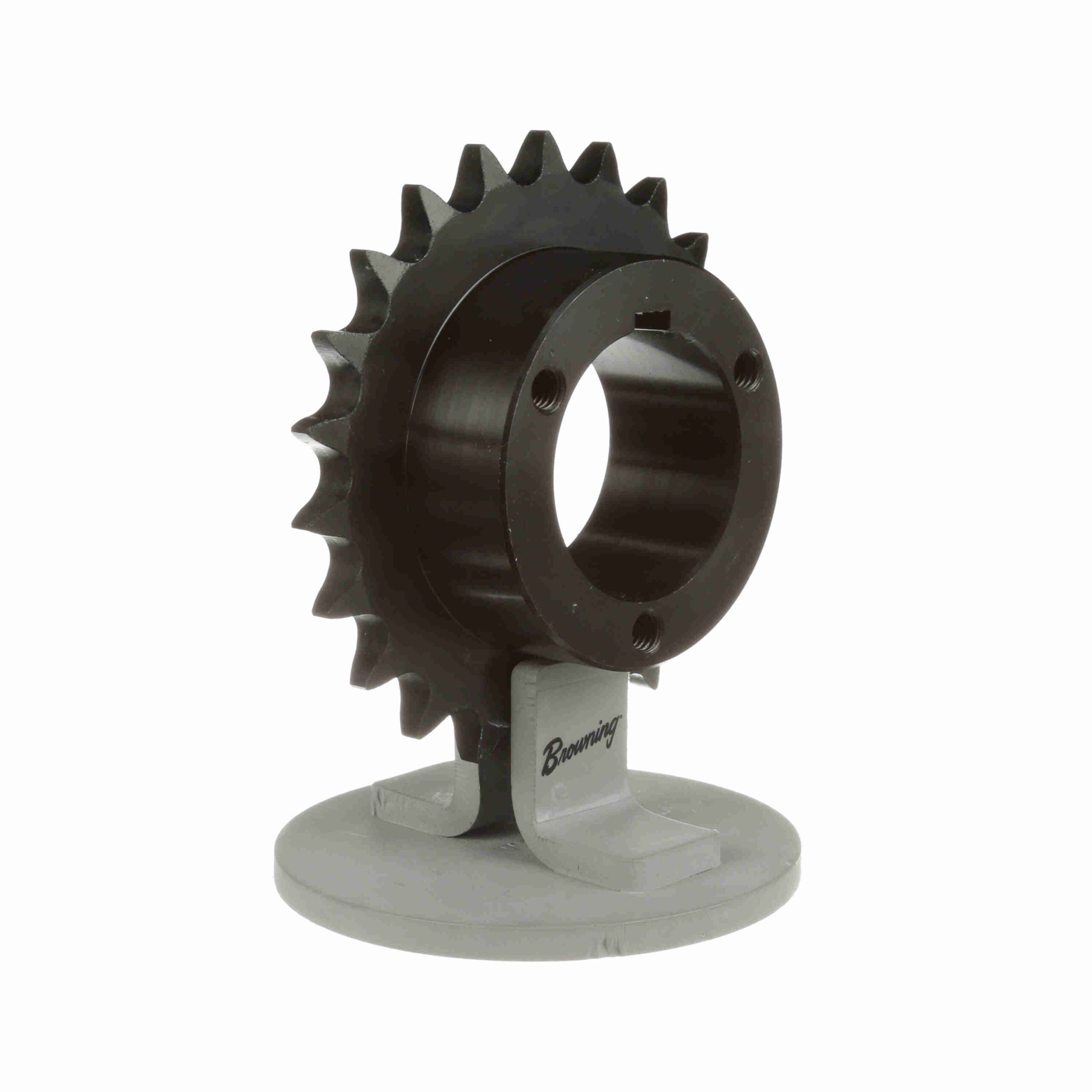

Browning Steel Bushed Bore Roller Chain Sprocket – H50P22
$224.08
Availability: 1 in stock
Availability: 1 in stock
| Number of teeth: | 22 | Bore (Max) (in): | 1.75 in |
|---|---|---|---|
| Bore (Min) (in): | 0.5 in | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
| Material: | Steel, Hardened Teeth | Chain Pitch (in): | 0.625 in |
| Bushing Used: | Split Taper | Product Type: | Bushed Roller Chain Sprocket |
| Pitch Diameter (in): | 4.392 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 2.221225 in | Outside Diameter (in): | 4.722 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 1 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.343 |
| Pitch Type: | Single | UPC: | 662289225200 |
| Weight: | 2.29 LB | Packaged Length: | 6.40 Inches |
| Packaged Width: | 6.20 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
