- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50H27

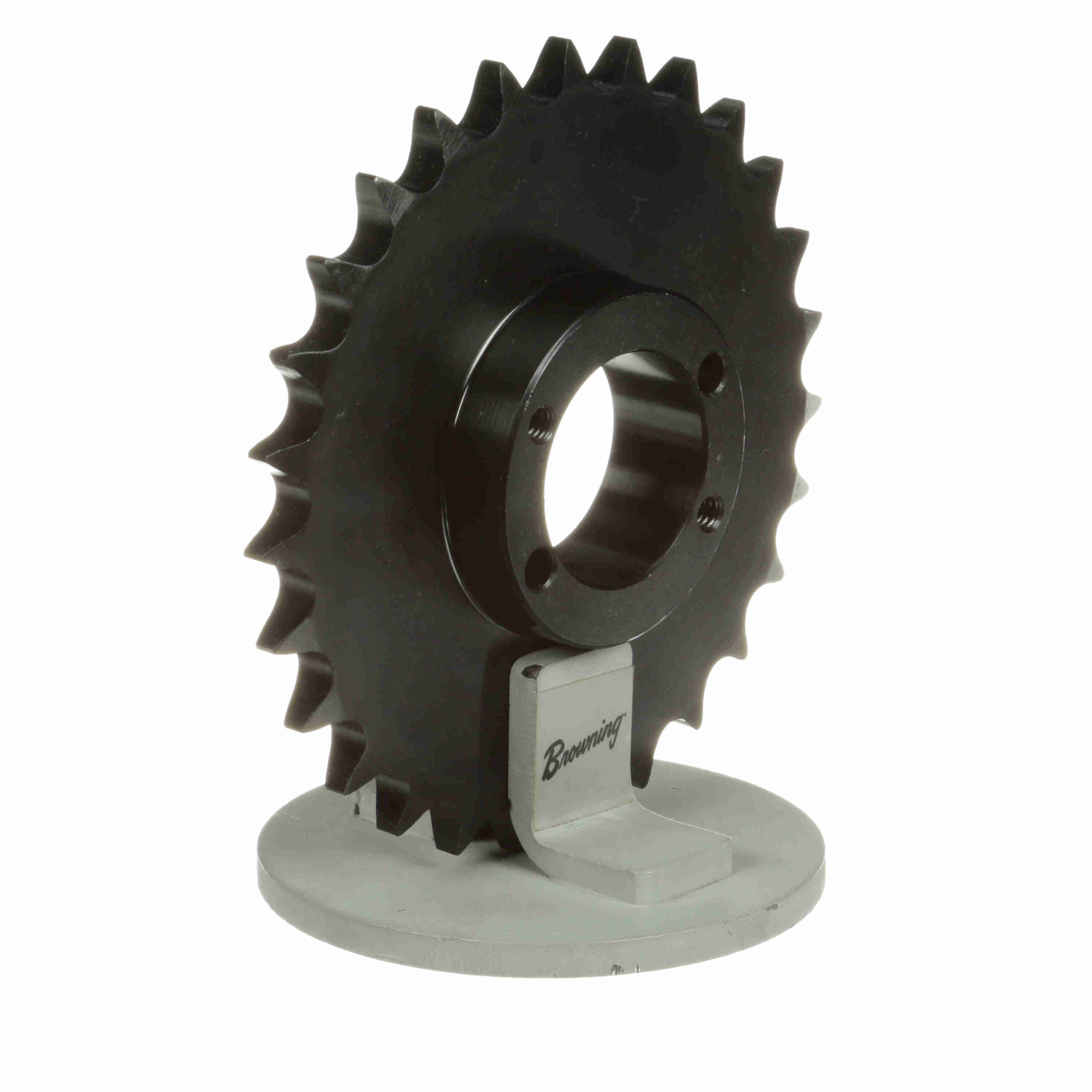

Browning Steel Bushed Bore Roller Chain Sprocket – H50H27
Out of stock
| Product Type: | Bushed Roller Chain Sprocket | Bore (Max) (in): | 1.5 in |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Chain Pitch (in): | 0.625 in |
| Pitch Diameter (in): | 5.384 in | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
| Bushing Used: | Split Taper | Number of teeth: | 27 |
| Bore (Min) (in): | 0.375 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 1.51225 in | Outside Diameter (in): | 5.722 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1.5 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.343 |
| Pitch Type: | Single | UPC: | 662289255382 |
| Weight: | 2.42 LB | Packaged Length: | 7.31 Inches |
| Packaged Width: | 7.31 Inches | Packaged Height: | 1.13 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
