- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H5013X1

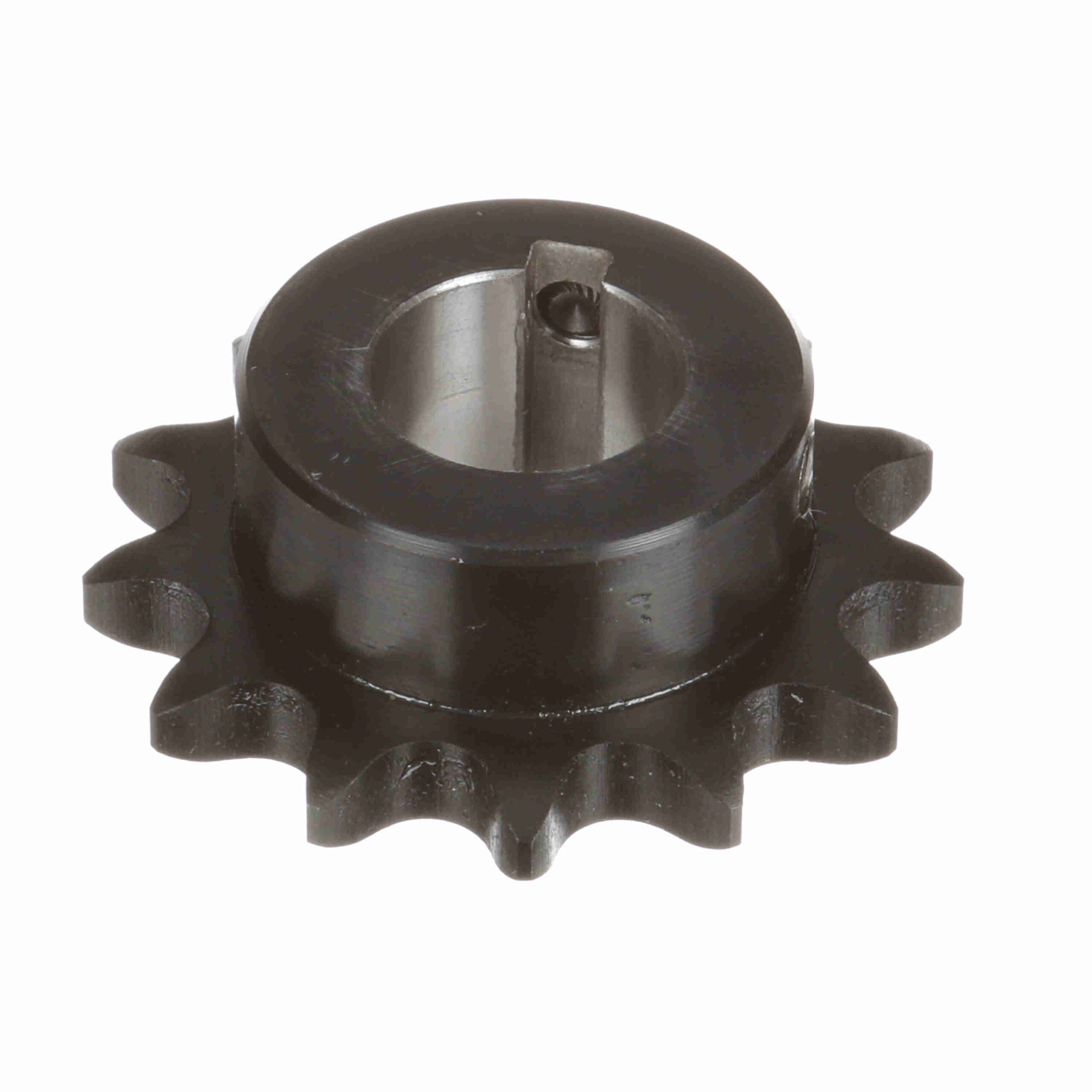

Browning Steel Finished Bore Roller Chain Sprocket – H5013X1
Out of stock
| Product Type: | Finished Bore Roller Chain Sprocket | Pitch Diameter (in): | 2.612 in |
|---|---|---|---|
| Number of teeth: | 13 | Chain Pitch (in): | 0.625 in |
| Material: | Steel, Hardened Teeth | Print Revision Level: | K |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore Type: | Finished Bore |
| Outside Diameter (in): | 2.911 in | Bore (in): | 1 in |
| Number of Strands/Width: | 1 | Hub Type: | Type B |
| Hub Projection (in): | 0.656 in | Length Through Bore (in): | 1.016 in |
| Tooth Width (in): | 0.343 in | Hub Diameter (in): | 2.171875 in |
| Pitch Type: | Single | Keyway Size: | 1/4 x 1/8 |
| Hardened Teeth: | With Hardened Teeth | UPC: | 662289113606 |
| Weight: | 0.82 LB | Packaged Length: | 3.06 Inches |
| Packaged Width: | 3.06 Inches | Packaged Height: | 1.31 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
