- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H40P19

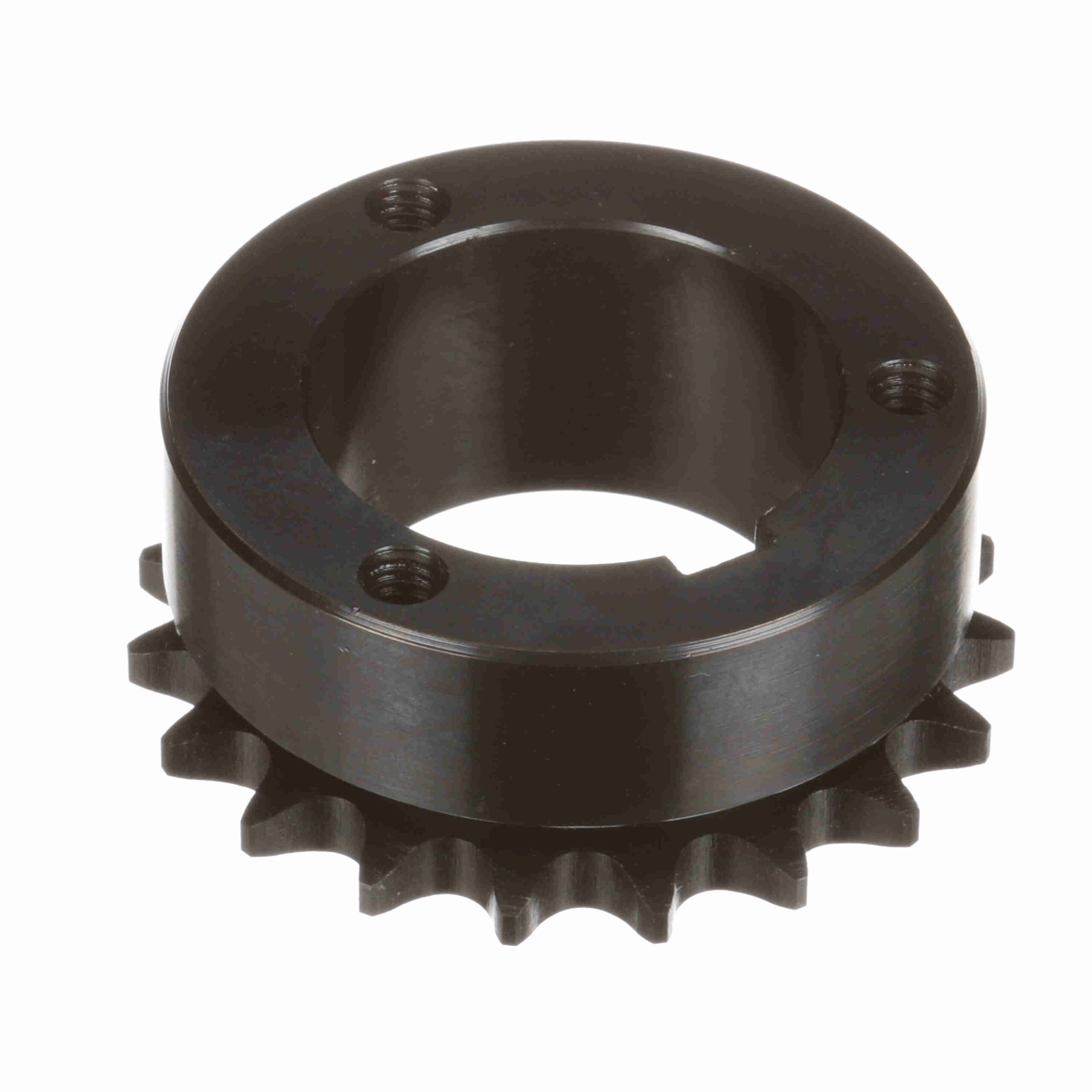

Browning Steel Bushed Bore Roller Chain Sprocket – H40P19
$246.94
Availability: 2 in stock
Availability: 2 in stock
| Number of teeth: | 19 | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Bore (Max) (in): | 1.75 in |
| Bore (Min) (in): | 0.5 in | Chain Pitch (in): | 0.5 in |
| Bushing Used: | Split Taper | Material: | Steel, Hardened Teeth |
| Pitch Diameter (in): | 3.038 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 2.216225 in | Outside Diameter (in): | 3.296 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.284 | UPC: | 662289124770 |
| Weight: | 1.35 LB | Packaged Length: | 3.56 Inches |
| Packaged Width: | 3.56 Inches | Packaged Height: | 1.44 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
