- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H4023X1

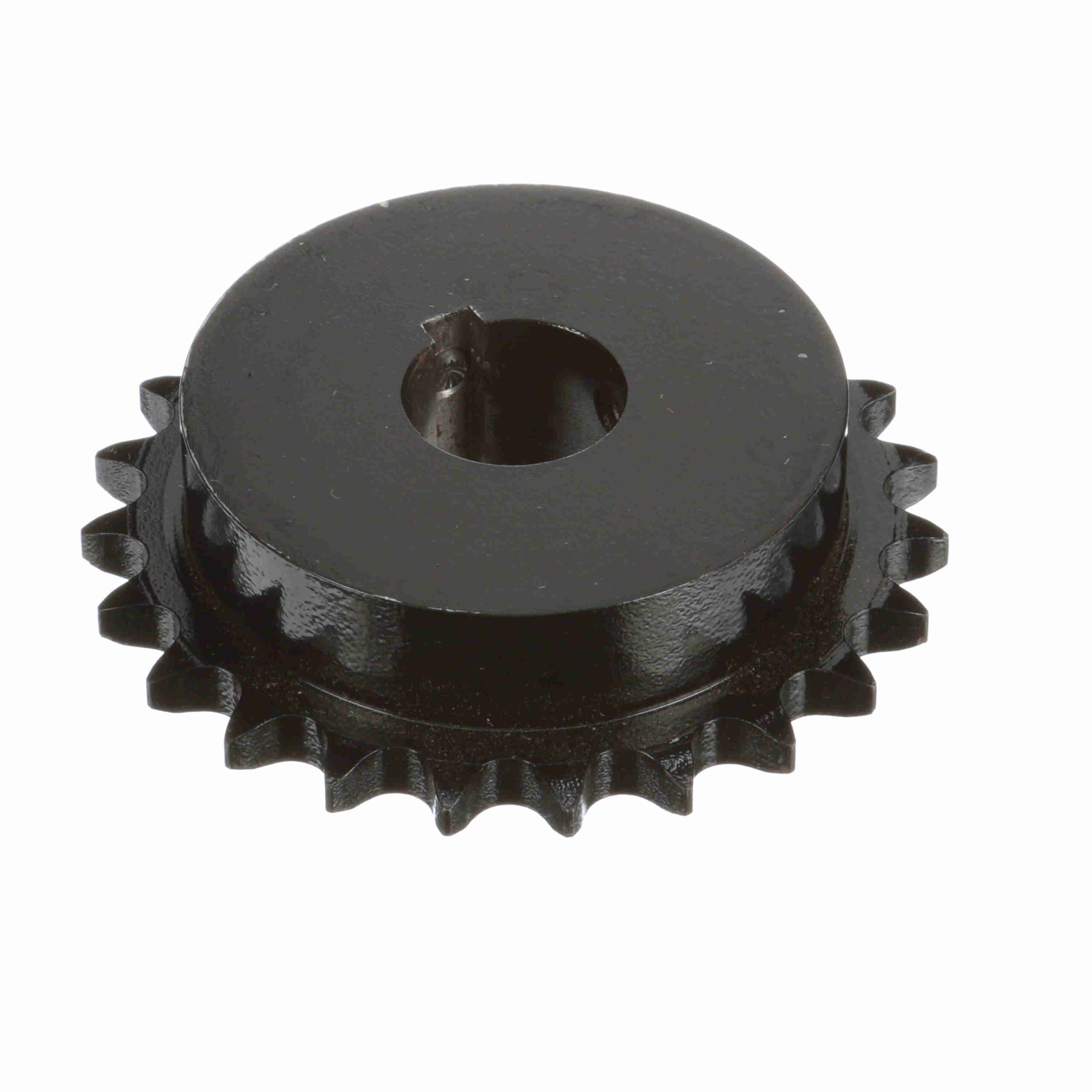

Browning Steel Finished Bore Roller Chain Sprocket – H4023X1
$82.56
Out of stock
Out of stock
| Pitch Diameter (in): | 3.672 in | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
|---|---|---|---|
| Chain Pitch (in): | 0.5 in | Product Type: | Finished Bore Roller Chain Sprocket |
| Material: | Steel, Hardened Teeth | Print Revision Level: | J |
| Number of teeth: | 23 | Bore Type: | Finished Bore |
| Outside Diameter (in): | 3.938 in | Bore (in): | 1 in |
| Number of Strands/Width: | 1 | Hub Type: | Type B |
| Tooth Width (in): | 0.284 in | Hub Projection (in): | 0.71875 in |
| Length Through Bore (in): | 1 in | Hub Diameter (in): | 3.016 in |
| Hardened Teeth: | With Hardened Teeth | Keyway Size: | 1/4 x 1/8 |
| Pitch Type: | Single | UPC: | 662289153350 |
| Weight: | 1.94 LB | Packaged Length: | 4.56 Inches |
| Packaged Width: | 4.56 Inches | Packaged Height: | 1.56 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
