- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H4017X1

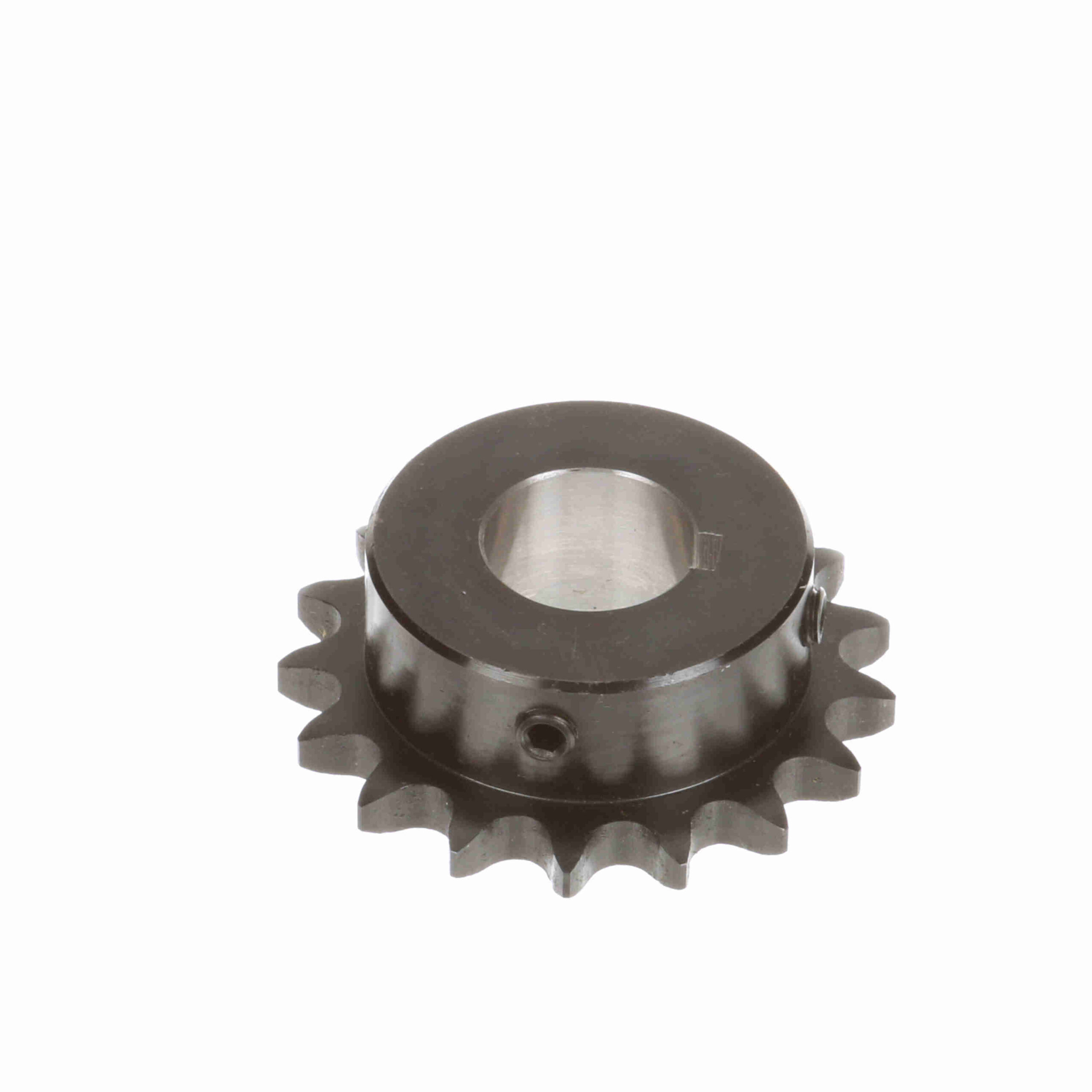

Browning Steel Finished Bore Roller Chain Sprocket – H4017X1
Out of stock
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Print Revision Level: | M |
|---|---|---|---|
| Chain Pitch (in): | 0.5 in | Number of teeth: | 17 |
| Material: | Steel, Hardened Teeth | Pitch Diameter (in): | 2.721 in |
| Product Type: | Finished Bore Roller Chain Sprocket | Outside Diameter (in): | 2.975 in |
| Bore Type: | Finished Bore | Bore (in): | 1 in |
| Number of Strands/Width: | 1 | Tooth Width (in): | 0.284 in |
| Hub Type: | Type B | Length Through Bore (in): | 1 in |
| Hub Projection (in): | 0.71875 in | Hub Diameter (in): | 2.203 in |
| Pitch Type: | Single | Keyway Size: | 1/4 x 1/8 |
| Hardened Teeth: | With Hardened Teeth | UPC: | 662289193165 |
| Weight: | 0.88 LB | Packaged Length: | 3.06 Inches |
| Packaged Width: | 3.06 Inches | Packaged Height: | 1.31 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
