- Browning 358 Notched Belts are constructed of EPDM material wrapped top and bottom increased operating temperature range of -60F to 250F degrees.
- More horsepower in less space – Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts. This enables you to reduce drive cost.
- Greater Horsepower allows for smaller drive sheaves – Using 358 Belts can allow for smaller drive components while still meeting the drive requirements , thus lowering the overall drive cost.
- Close Belt tolerance – Browning Belts offer the “Code 1” Match belt system on all classical and “358” Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.
3VX1180

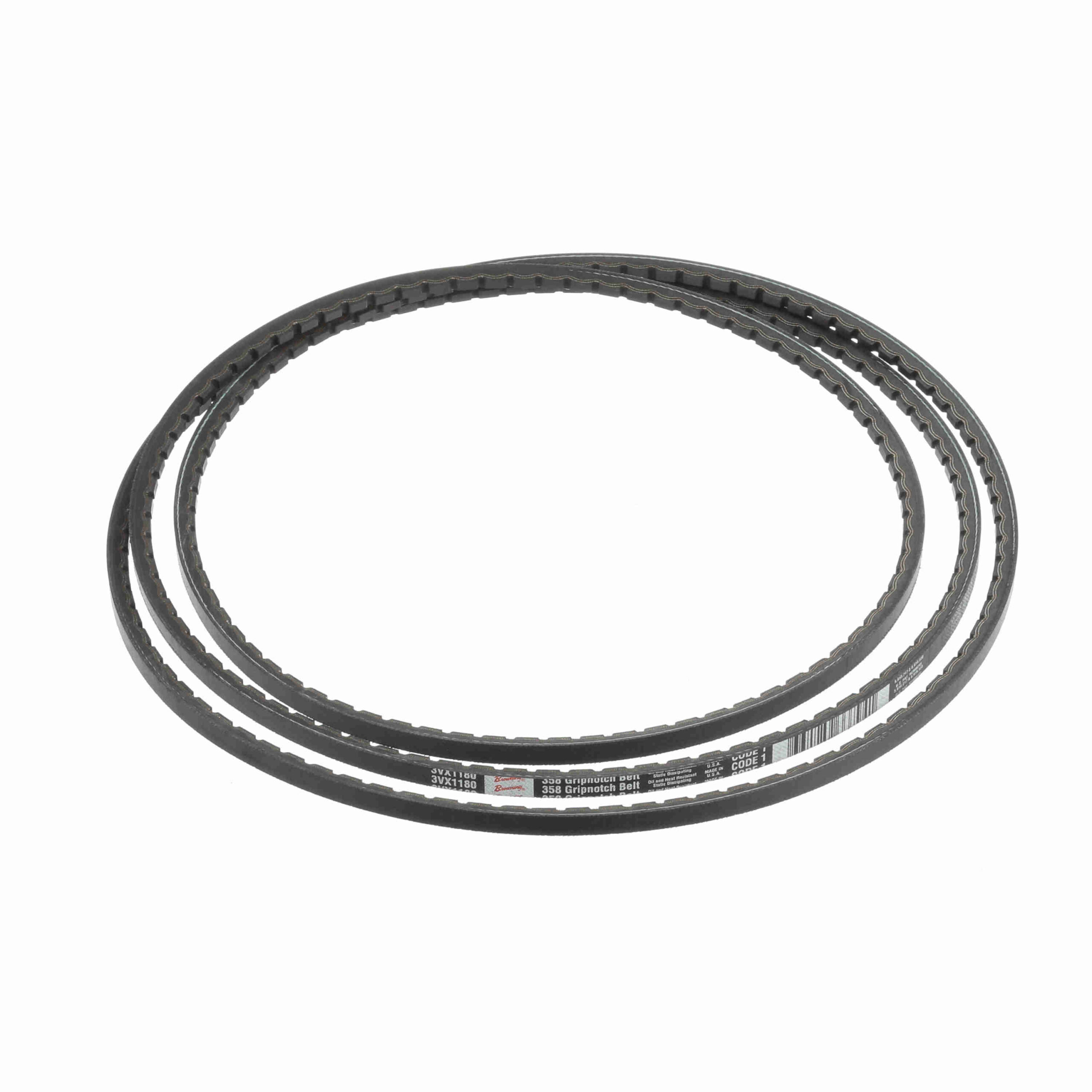

Browning EPDM Notched Belt 98% Efficient – 3VX1180
$45.65
Availability: 9 in stock
Availability: 9 in stock
| Belt Section: | 3VX | Type: | Gripnotch Notched V-Belts |
|---|---|---|---|
| Material: | EPDM | Efficiency (%): | 0.98 |
| Product Type: | Notched Belt | Operating Temperature [Max] ?C: | 121 ?C |
| Outside Diameter (in): | 118 in | Operating Temperature [Max] ?F: | 250 ?F |
| Outside Length/Diameter (in): | 118 in | Pitch Length: | 118 |
| UPC: | 662289337941 | Weight: | 0.44 LB |
| Packaged Length: | 6.35 Inches | Packaged Width: | 17.8 Inches |
| Packaged Height: | 1.55 Inches | HTC: | 4010.39.1000 |
| Country of Origin: | United States of America |
