- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H4010X5/8

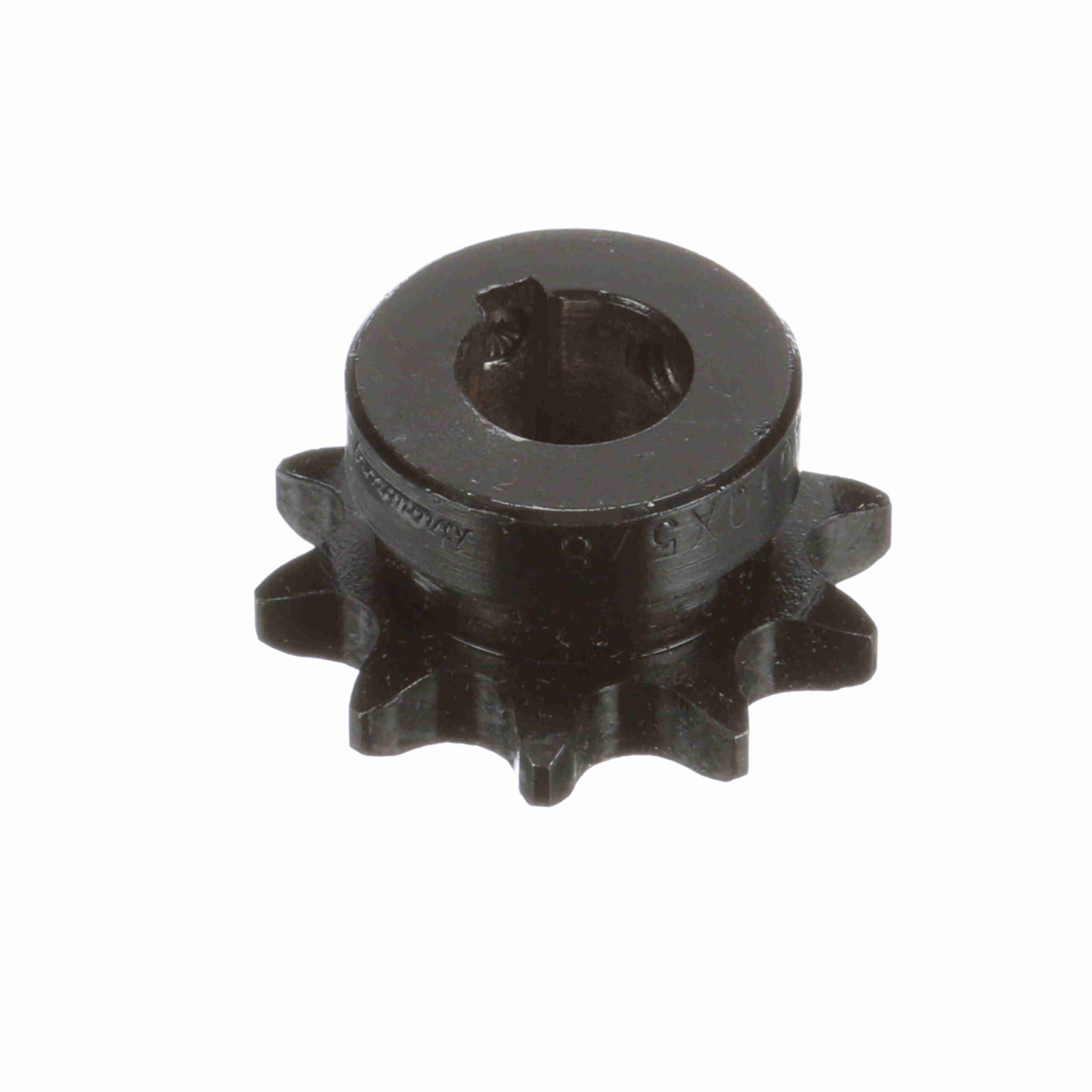

Browning Steel Finished Bore Roller Chain Sprocket – H4010X5/8
$48.88
Out of stock
Out of stock
| Product Type: | Finished Bore Roller Chain Sprocket | Chain Pitch (in): | 0.5 in |
|---|---|---|---|
| Number of teeth: | 10 | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
| Material: | Steel, Hardened Teeth | Print Revision Level: | K |
| Pitch Diameter (in): | 1.618 in | Bore Type: | Finished Bore |
| Outside Diameter (in): | 1.839 in | Number of Strands/Width: | 1 |
| Bore (in): | 0.625 in | Hub Projection (in): | 0.596 in |
| Hub Diameter (in): | 1.297 in | Hub Type: | Type B |
| Length Through Bore (in): | 0.891 in | Tooth Width (in): | 0.284 in |
| Pitch Type: | Single | Keyway Size: | 3/16 x 3/32 |
| Hardened Teeth: | With Hardened Teeth | UPC: | 662289242818 |
| Weight: | 0.30 LB | Packaged Length: | 2.56 Inches |
| Packaged Width: | 2.56 Inches | Packaged Height: | 1.38 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
