- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H3524X1

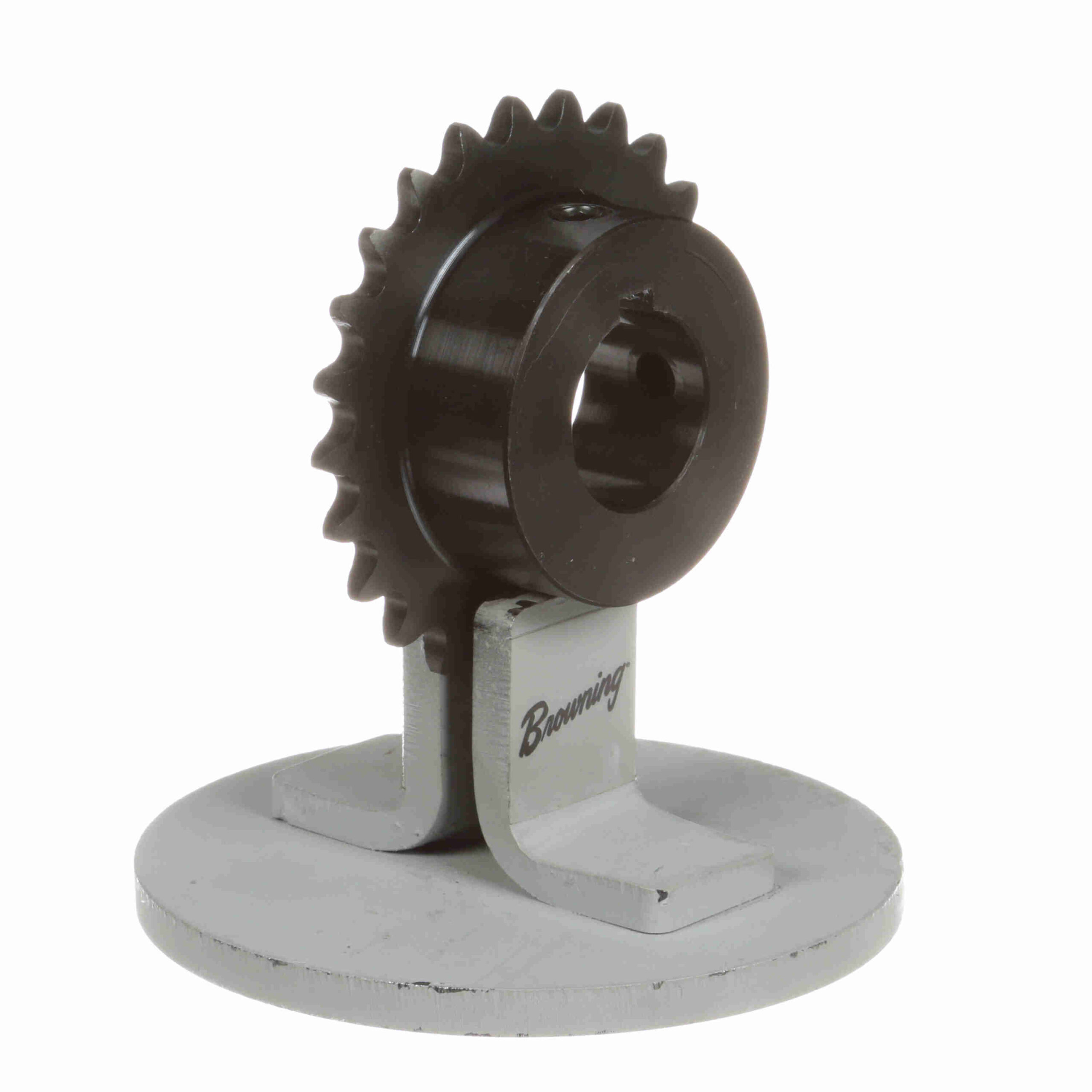

Browning Steel Finished Bore Roller Chain Sprocket – H3524X1
Out of stock
| Material: | Steel, Hardened Teeth | Print Revision Level: | P |
|---|---|---|---|
| Chain Pitch (in): | 0.375 in | Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain |
| Product Type: | Finished Bore Roller Chain Sprocket | Pitch Diameter (in): | 2.873 in |
| Number of teeth: | 24 | Length Through Bore (in): | 0.875 in |
| Hub Projection (in): | 0.703125 in | Tooth Width (in): | 0.168 in |
| Bore Type: | Finished Bore | Outside Diameter (in): | 3.073 in |
| Hub Diameter (in): | 2 in | Sprocket Material: | Steel, Hardened Teeth |
| Hub Type: | Type B | Overall Length (in): | 0.875 in |
| Number of Strands/Width: | 1 | Bore (in): | 1 in |
| Pitch Type: | Single | Keyway Size: | 1/4 x 1/8 |
| Hardened Teeth: | With Hardened Teeth | UPC: | 662289152773 |
| Weight: | 0.78 LB | Packaged Length: | 3.90 Inches |
| Packaged Width: | 3.70 Inches | Packaged Height: | 1.60 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
