- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H160R12

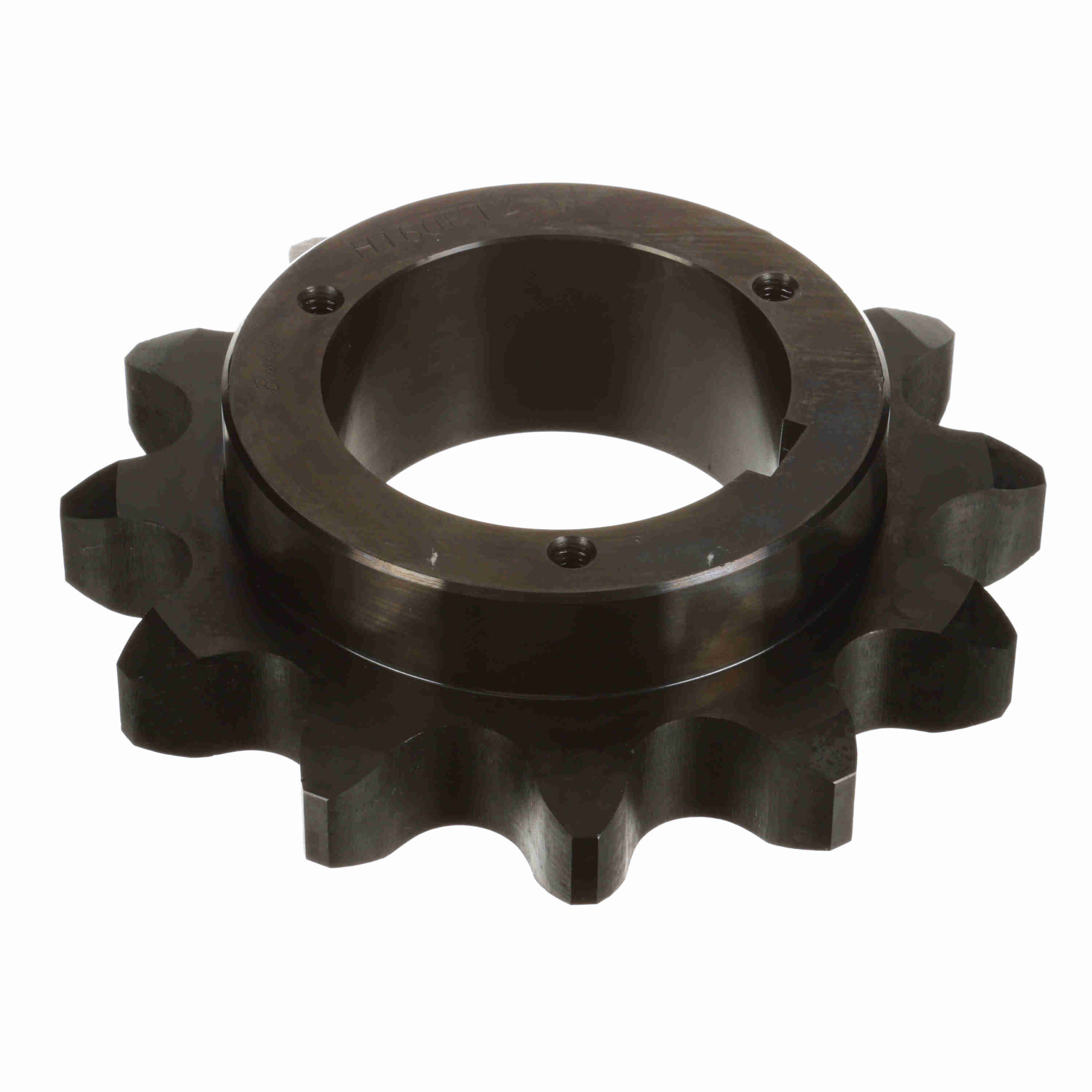

Browning Steel Bushed Bore Roller Chain Sprocket – H160R12
$1,312.56
Out of stock
Out of stock
| Number of teeth: | 12 | Pitch Diameter (in): | 7.727 in |
|---|---|---|---|
| Chain Used: | No. 160, 2 in. Pitch ANSI Chain | Chain Pitch (in): | 2 in |
| Material: | Steel, Hardened Teeth | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Min) (in): | 1.125 in | Bore (Max) (in): | 3.75 in |
| Bushing Used: | Split Taper | Overall Length (in): | 3.40625 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 8.664 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1.125 |
| Width Across Tooth Sets: | 1.156 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289296835 |
| Weight: | 14.46 LB | Packaged Length: | 8.90 Inches |
| Packaged Width: | 8.80 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
