- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H3518X5/8

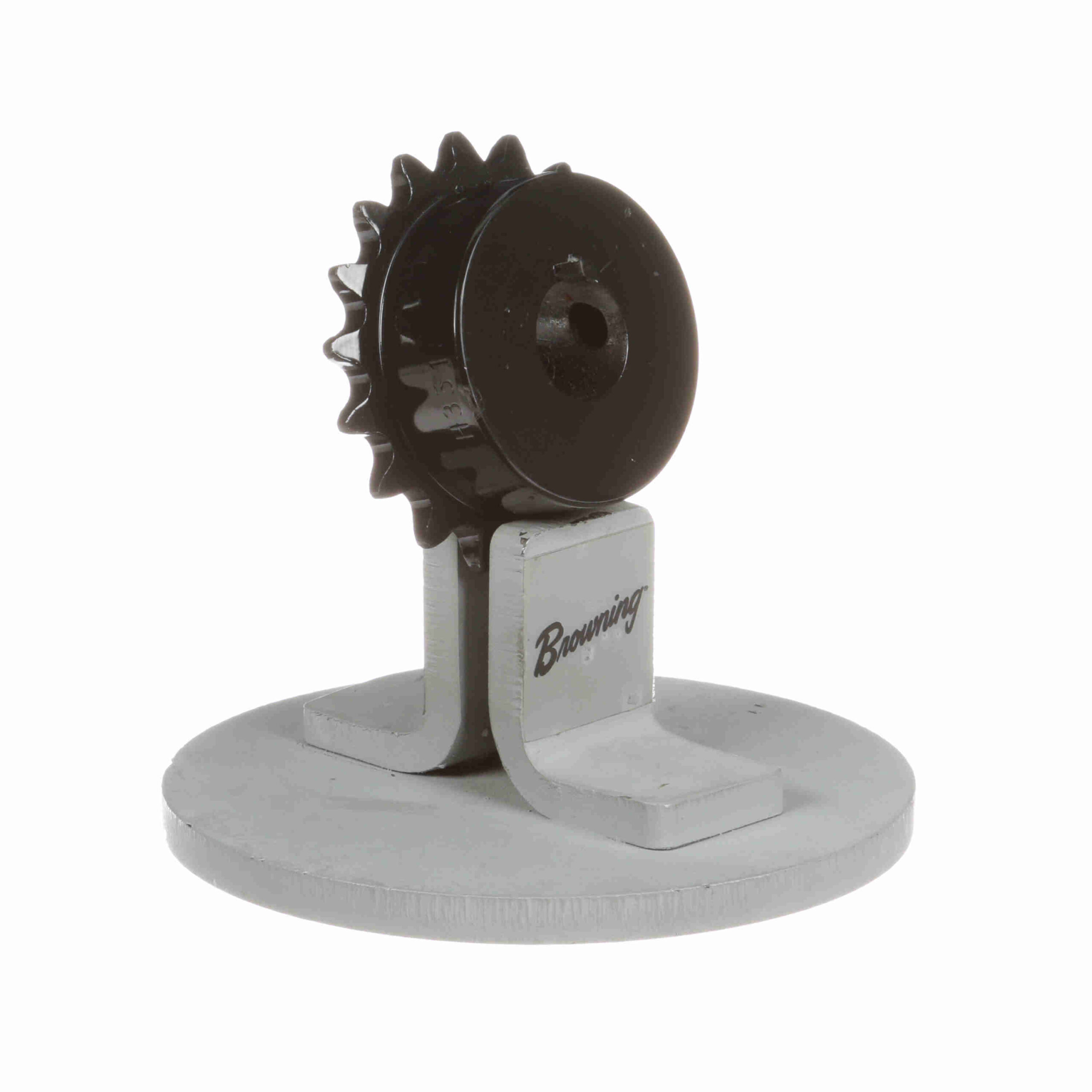

Browning Steel Finished Bore Roller Chain Sprocket – H3518X5/8
Out of stock
| Pitch Diameter (in): | 2.159 in | Print Revision Level: | M |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Product Type: | Finished Bore Roller Chain Sprocket |
| Number of teeth: | 18 | Chain Pitch (in): | 0.375 in |
| Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain | Outside Diameter (in): | 2.352 in |
| Bore Type: | Finished Bore | Bore (in): | 0.625 in |
| Number of Strands/Width: | 1 | Tooth Width (in): | 0.169 in |
| Hub Projection (in): | 0.578125 in | Length Through Bore (in): | 0.766 in |
| Hub Diameter (in): | 1.766 in | Hub Type: | Type B |
| Keyway Size: | 3/16 x 3/32 | Pitch Type: | Single |
| Hardened Teeth: | With Hardened Teeth | UPC: | 662289122677 |
| Weight: | 0.51 LB | Packaged Length: | 2.40 Inches |
| Packaged Width: | 2.30 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
