- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H140R30

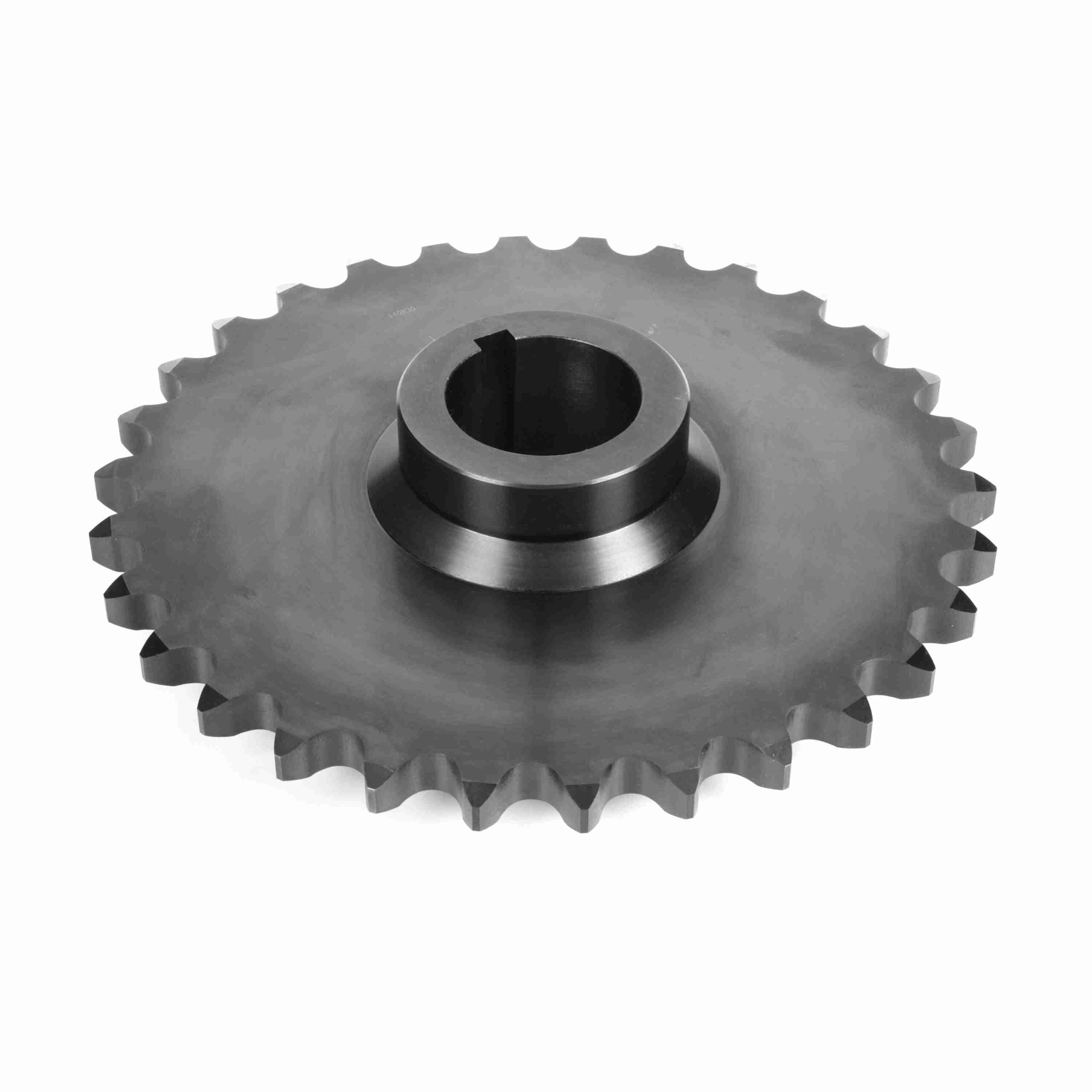

Browning Steel Bushed Bore Roller Chain Sprocket – H140R30
$2,166.51
Out of stock
Out of stock
| Product Type: | Bushed Roller Chain Sprocket | Bore (Min) (in): | 1.375 in |
|---|---|---|---|
| Bore (Max) (in): | 3.625 in | Bushing Used: | Split Taper |
| Pitch Diameter (in): | 16.742 in | Material: | Steel, Hardened Teeth |
| Number of teeth: | 30 | Chain Used: | No. 140, 1-3/4 in. Pitch ANSI Chain |
| Chain Pitch (in): | 1.75 in | Outside Diameter (in): | 17.7 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 5.219375 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.625 | Minimum Bore (in): | 1 |
| Width Across Tooth Sets: | 0.924 | Pitch Type: | Single |
| Number of Hubs: | 2 | UPC: | 662289026494 |
| Weight: | 65.00 LB | Packaged Length: | 17.70 Inches |
| Packaged Width: | 17.70 Inches | Packaged Height: | 4.02 Inches |
| HTC: | 8483.90.1050 |
