- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H140Q12

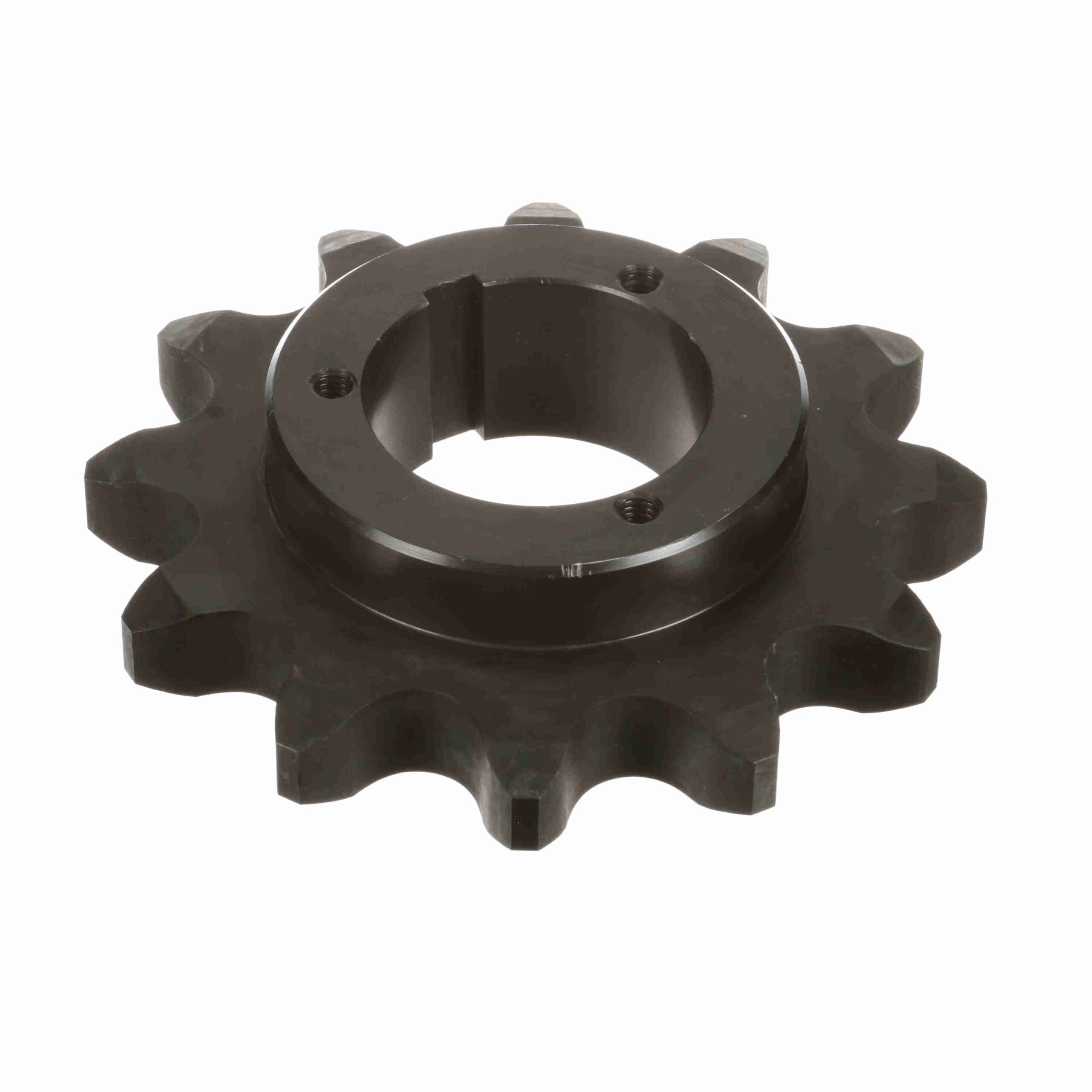

Browning Steel Bushed Bore Roller Chain Sprocket – H140Q12
$1,010.56
Out of stock
Out of stock
| Bore (Max) (in): | 2.6875 in | Number of teeth: | 12 |
|---|---|---|---|
| Chain Used: | No. 140, 1-3/4 in. Pitch ANSI Chain | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Pitch Diameter (in): | 6.761 in |
| Bore (Min) (in): | 0.75 in | Chain Pitch (in): | 1.75 in |
| Material: | Steel, Hardened Teeth | Outside Diameter (in): | 7.581 in |
| Overall Length (in): | 2.828125 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Width Across Tooth Sets: | 0.924 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289156740 |
| Weight: | 9.36 LB | Packaged Length: | 8.40 Inches |
| Packaged Width: | 8.60 Inches | Packaged Height: | 2.70 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
