- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H140R17

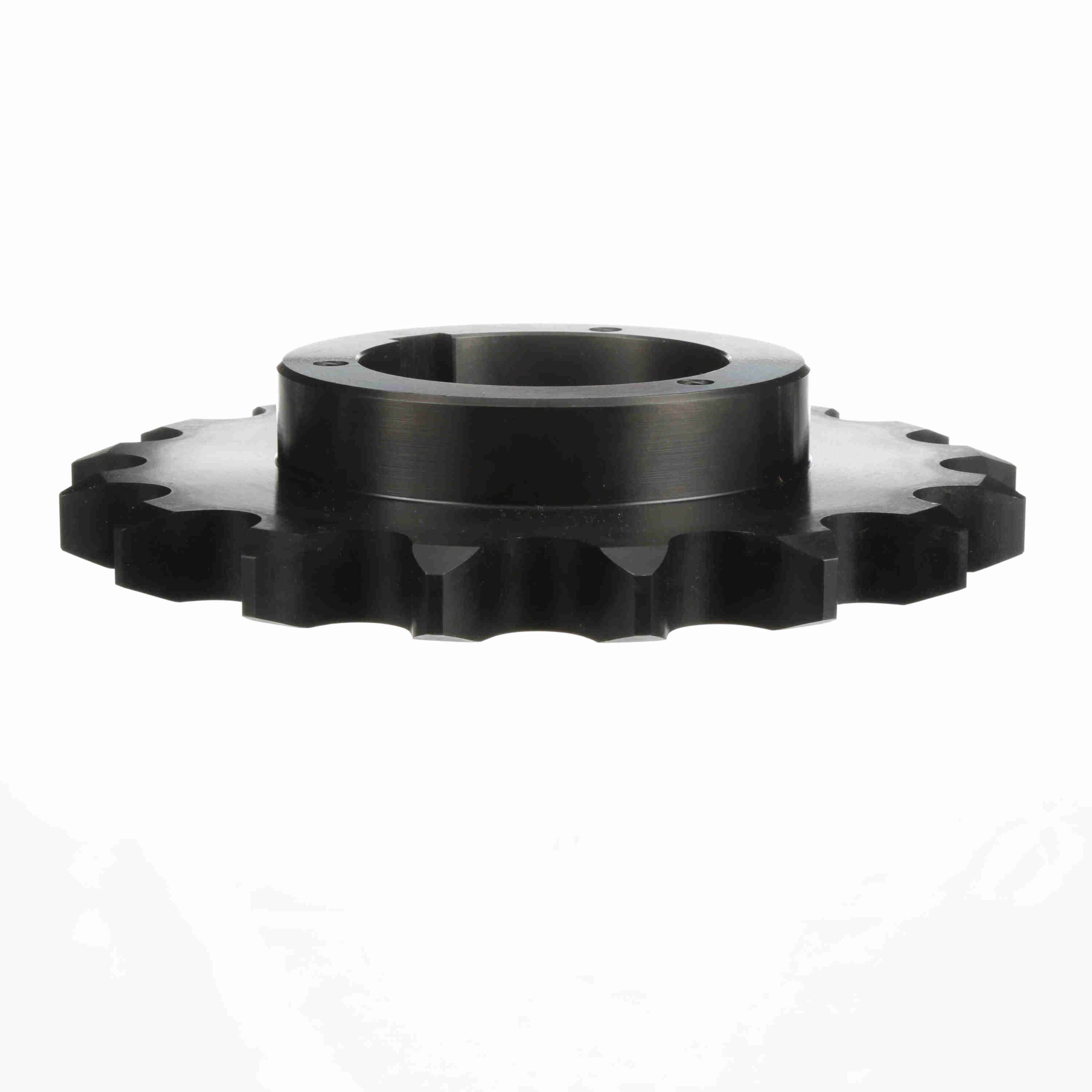

Browning Steel Bushed Bore Roller Chain Sprocket – H140R17
$953.28
Out of stock
Out of stock
| Pitch Diameter (in): | 9.524 in | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Number of teeth: | 17 | Chain Used: | No. 140, 1-3/4 in. Pitch ANSI Chain |
| Chain Pitch (in): | 1.75 in | Bore (Max) (in): | 3.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Bushing Used: | Split Taper |
| Material: | Steel, Hardened Teeth | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 10.412 in | Overall Length (in): | 3.219375 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Width Across Tooth Sets: | 0.924 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289306787 |
| Weight: | 18.77 LB | Packaged Length: | 11.60 Inches |
| Packaged Width: | 11.40 Inches | Packaged Height: | 3.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
