- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H100R30

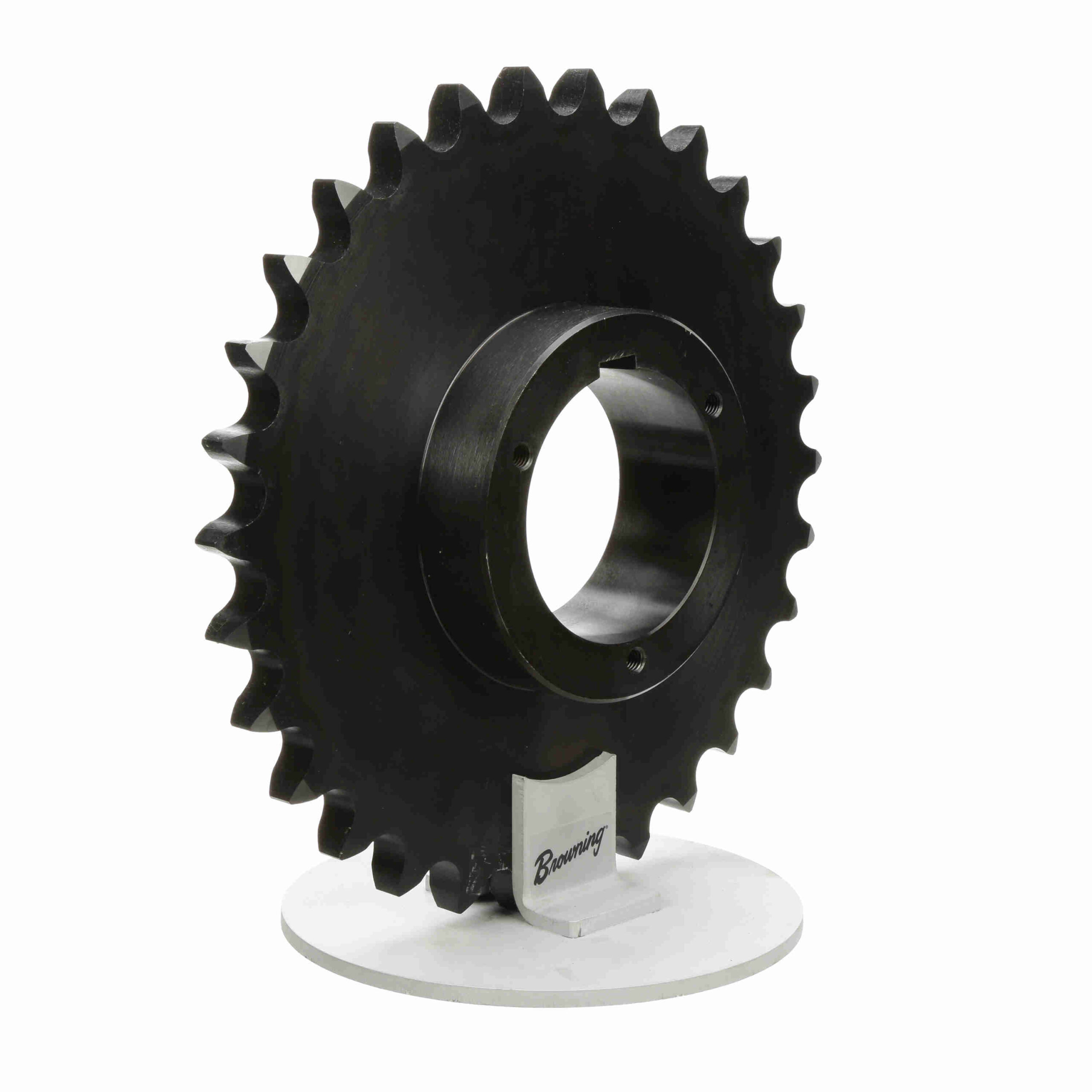

Browning Steel Bushed Bore Roller Chain Sprocket – H100R30
$800.60
Out of stock
Out of stock
| Product Type: | Bushed Roller Chain Sprocket | Pitch Diameter (in): | 11.958 in |
|---|---|---|---|
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Bore (Max) (in): | 3.75 in |
| Bushing Used: | Split Taper | Chain Pitch (in): | 1.25 in |
| Bore (Min) (in): | 1.125 in | Material: | Steel, Hardened Teeth |
| Number of teeth: | 30 | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 12.643 in | Overall Length (in): | 3.219375 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1 |
| Width Across Tooth Sets: | 0.692 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289722983 |
| Weight: | 22.70 LB | Packaged Length: | 12.75 Inches |
| Packaged Width: | 12.75 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
