- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H100R21

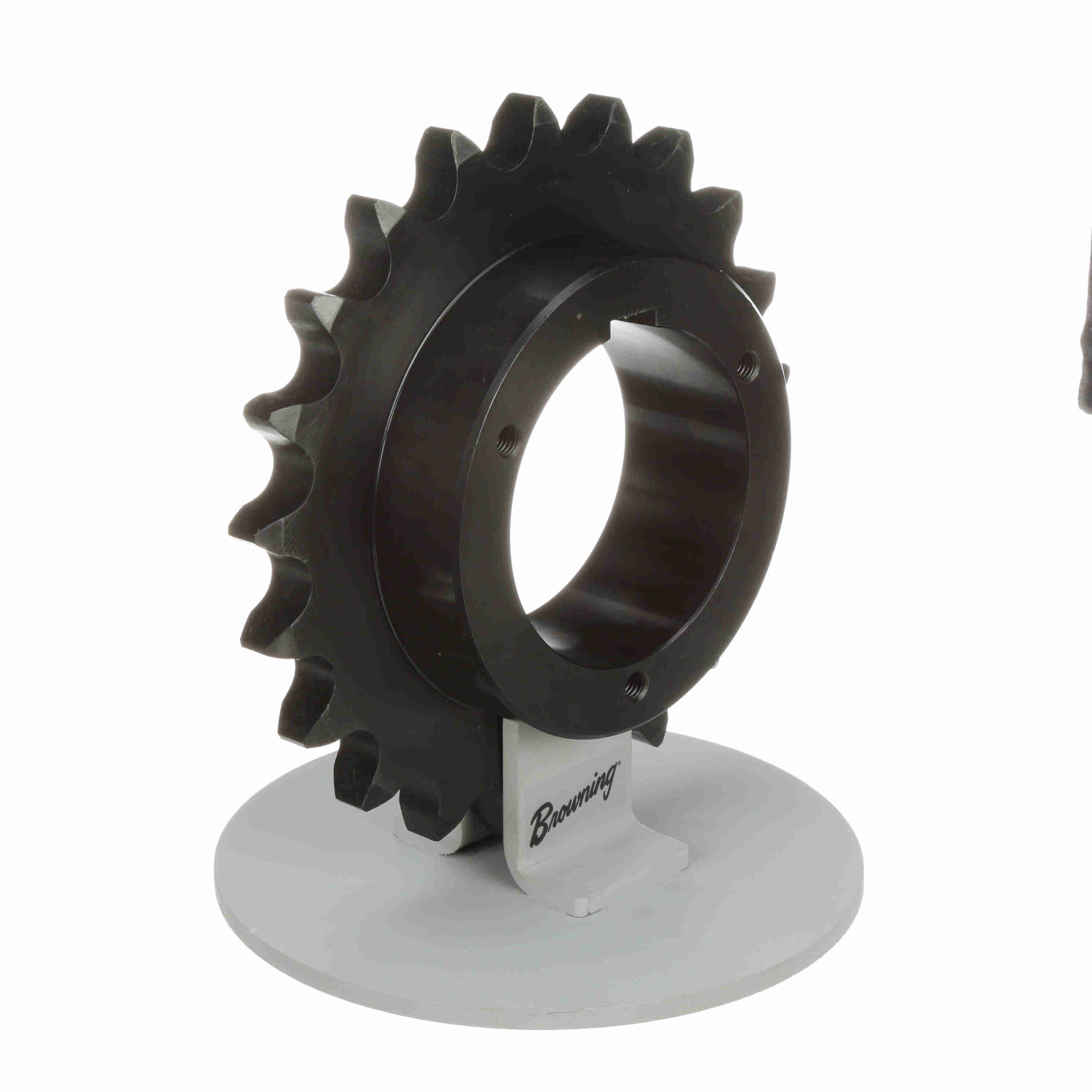

Browning Steel Bushed Bore Roller Chain Sprocket – H100R21
$640.65
Out of stock
Out of stock
| Product Type: | Bushed Roller Chain Sprocket | Bushing Used: | Split Taper |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Number of teeth: | 21 |
| Pitch Diameter (in): | 8.387 in | Chain Pitch (in): | 1.25 in |
| Bore (Min) (in): | 1.125 in | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Bore (Max) (in): | 3.75 in | Overall Length (in): | 3.219375 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 9.043 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1 | Maximum Bore (in): | 3.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.692 | UPC: | 662289722969 |
| Weight: | 12.92 LB | Packaged Length: | 10.00 Inches |
| Packaged Width: | 9.90 Inches | Packaged Height: | 2.10 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
