- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H100Q26

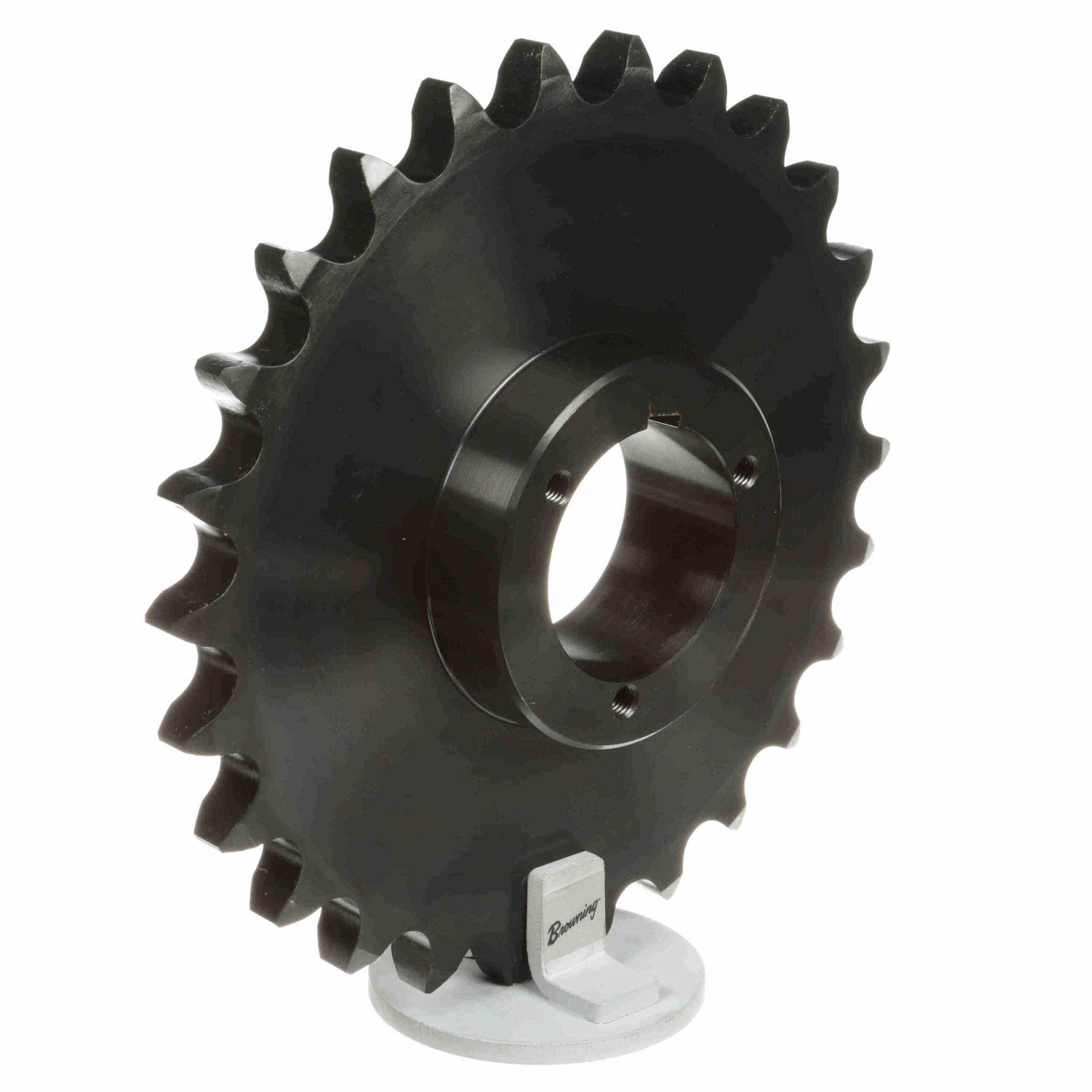

Browning Steel Bushed Bore Roller Chain Sprocket – H100Q26
$908.96
Out of stock
Out of stock
| Pitch Diameter (in): | 10.37 in | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
|---|---|---|---|
| Bore (Max) (in): | 2.6875 in | Bore (Min) (in): | 0.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Material: | Steel, Hardened Teeth |
| Chain Pitch (in): | 1.25 in | Bushing Used: | Split Taper |
| Number of teeth: | 26 | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 11.045 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.692 | UPC: | 662289106462 |
| Weight: | 17.79 LB | Packaged Length: | 12.60 Inches |
| Packaged Width: | 12.60 Inches | Packaged Height: | 3.10 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
