- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 24 MM

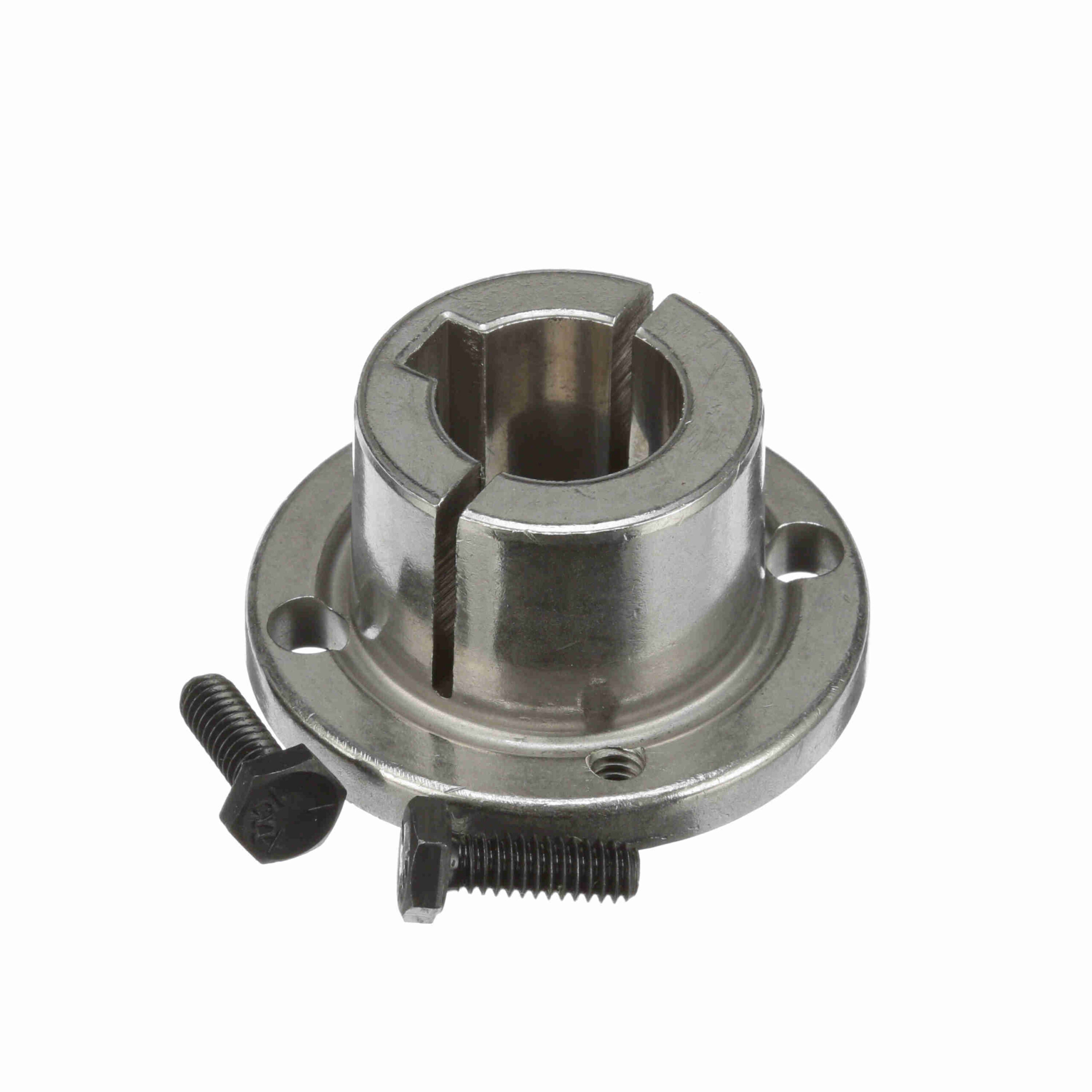

Browning Split Taper Bushing – Metric Bore Type – H 24 MM
$22.94
Out of stock
Out of stock
| Outside Diameter (in): | 2.5 in | Model Name: | H-Bushing_1_Master |
|---|---|---|---|
| Cap Screws (Size): | 1/4 x 3/4 | Total Length (in): | 1.25 in |
| Bushing Type: | H | Length Through Bore (mm): | 31.75 mm |
| Outside Diameter (mm): | 63.5 mm | Bore Size (mm): | 24 mm |
| Product Type: | Split Taper Bushing | Wrench Torque (in-lb): | 95 |
| Total Length (mm): | 31.75 mm | Material: | Sintered Steel or Ductile Iron |
| Compatible Bore Size [Max] (mm): | 24 mm | Keyseat (mm): | 8 x 3.5 mm |
| Bore Type: | Metric | Cap Screws (No.): | 2 |
| UPC: | 662289123179 | Weight: | 0.63 LB |
| Packaged Length: | 2.56 Inches | Packaged Width: | 2.56 Inches |
| Packaged Height: | 1.38 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | United States of America |
