- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry , dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
FB-23T

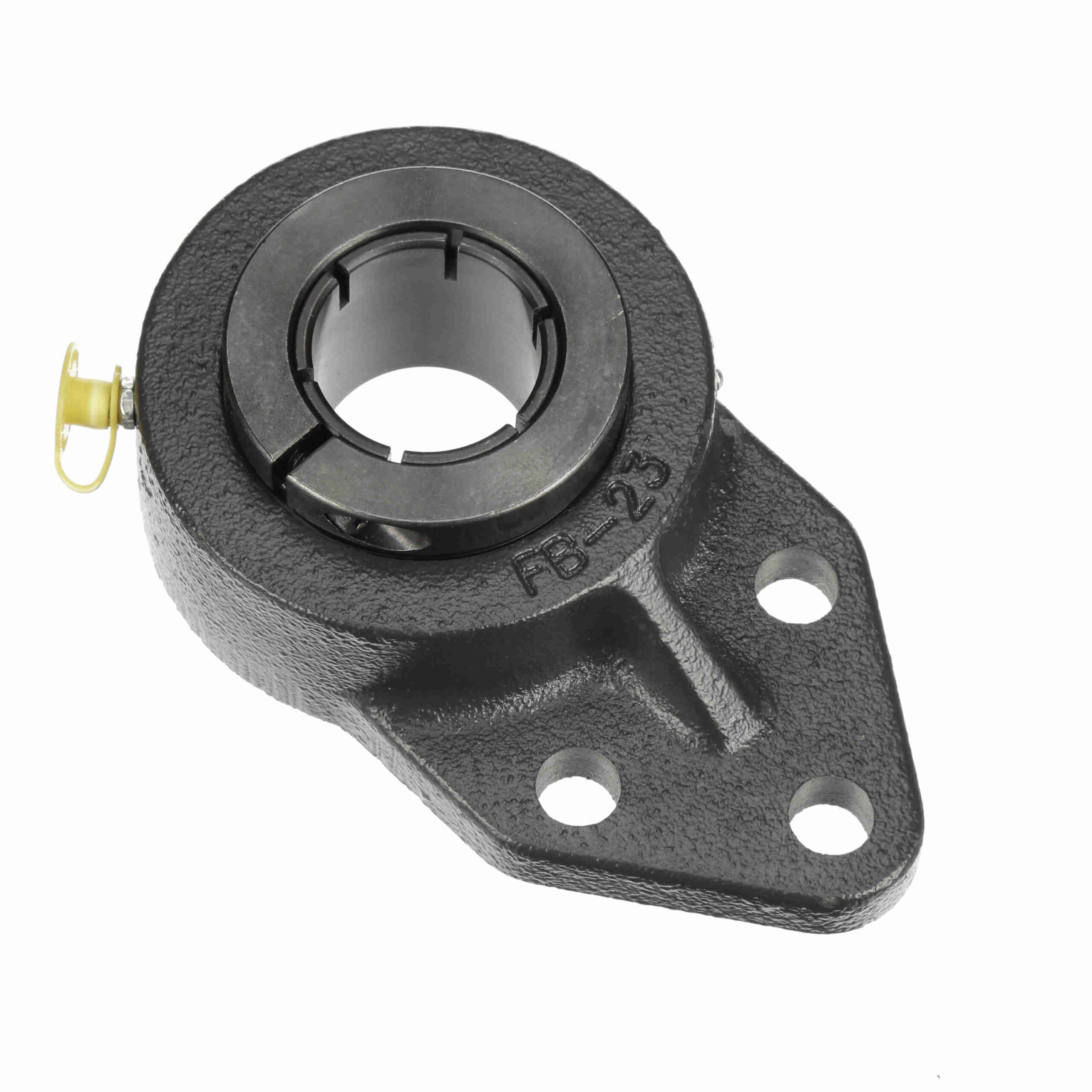

Sealmaster Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – FB-23T
$200.21
Availability: 2 in stock
Availability: 2 in stock
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel; Black Oxided |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Seal Type: | Felt Labyrinth Seal |
| Retainer Type: | Land Riding Retainer | Housing Base: | Solid |
| Housing Type: | Flange; Bracket; Three Bolt | Speed (Max): | 6500 |
| Bore Shape: | Straight | Insert No.: | 2-17T |
| Maximum Operating Temperature: | 220 °F | Housing Material: | Cast Iron |
| Expansion: | No | Duty Series: | Standard Duty |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Internal Clearance: | Standard |
| Locking Type: | Concentric | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Misalignment Type: | Static Only |
| End Cap: | No | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662461031643 |
| Weight: | 3.89 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
