- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Extra low drag seal cut down felt labyrinth seal and flinger
- Oil lubricated for reduced internal friction
- Nylon retainer to reduce overall drag
ERX-20T XLO

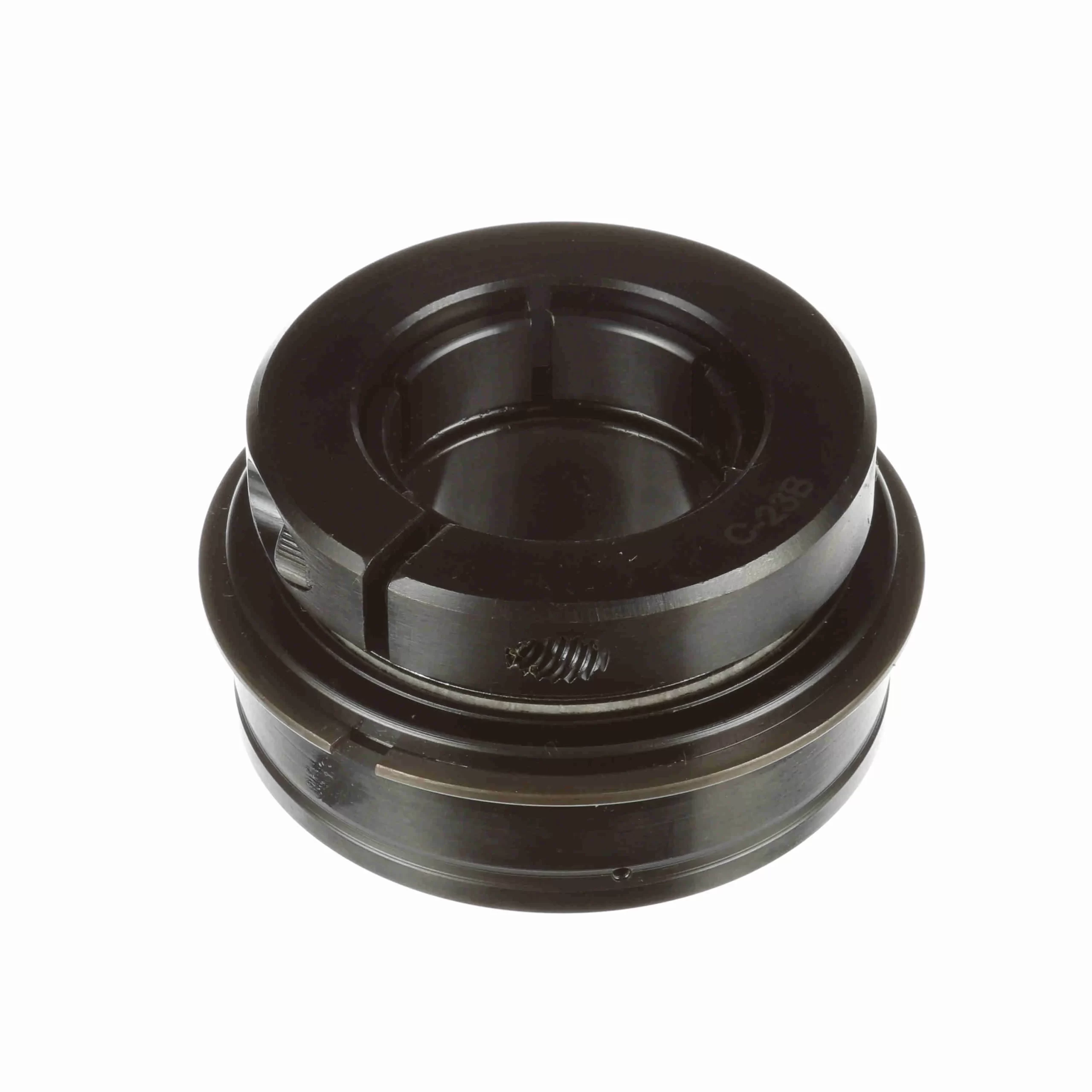

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Extra Low Drag – ERX-20T XLO
$151.38
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Duty Series: | Standard | Bore Shape: | Straight |
| Housing Type: | Insert (ER Style) | Measure Units: | Inch |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Seal Type: | Cut Down Felt Labyrinth |
| Retainer Type: | Land Riding Retainer | Radius: | 0.04 |
| Maximum Operating Temperature: | 220 °F | Speed (Max): | 1850 |
| Expansion: | No | Internal Clearance: | Standard |
| Locking Type: | Concentric | Misalignment: | None |
| Lubrication: | Oil Coated Only - No Factory Grease Fill | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Relubricatable: | Yes | Options: | Extra Low Drag |
| End Cap: | No | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Tapered Lands | Radial Static Load Capacity (lb): | 3, 493 |
| Series: | ERX-T | Precision Rating: | ABEC 1 |
| Cage Material: | Molded Nylon | Outer Race Profile: | Cylindrical |
| Inner Race Profile: | Wide Inner Ring | UPC: | 662461259290 |
| Weight: | 1.65 LB | Packaged Length: | 3.13 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 3.13 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
