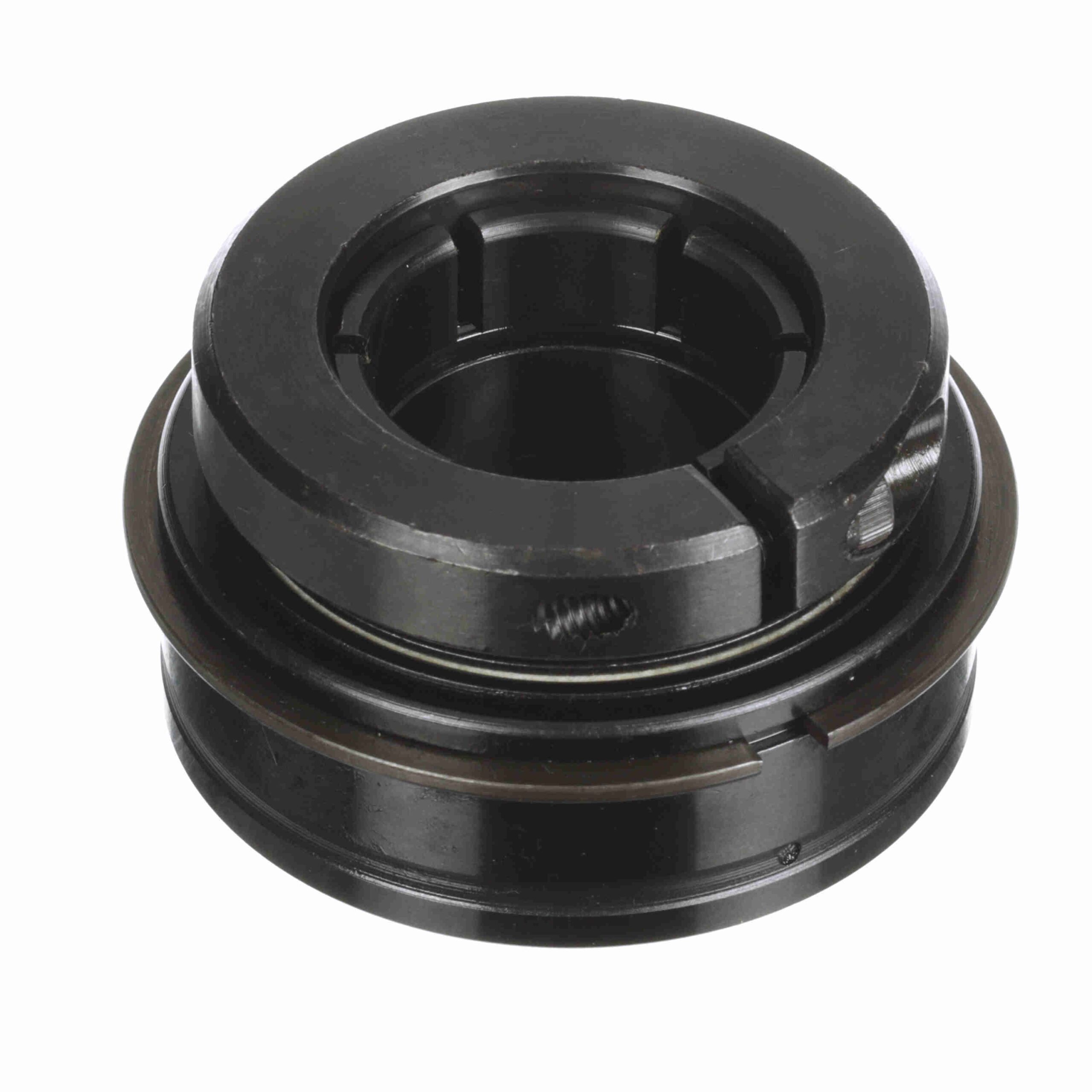

ER-19T

ER style cylindrical OD bearing with snap and with black oxided bearing rings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Rolling Element:	Ball Bearing	Seal Type:	Felt Labyrinth Seal
Maximum Operating Temperature:	220 °F	Measure Units:	Inch
Radius:	0.04	Set Screw Thread:	1/4-28 UNF-3A X .250
Bore Shape:	Straight	Housing Type:	Insert (ER Style)
Retainer Type:	Land Riding Retainer	Insert Material:	52100 Bearing Steel; Black Oxided
Inner-Race Heat-Treat Method:	Zone-Hardened	Duty Series:	Standard
Radial Dynamic Load Capacity (lb):	4, 381	Misalignment:	None
Speed (Max):	7600	Lubrication:	Lithium Complex NLGI 2 Grease
Internal Clearance:	Standard	Expansion:	No
Locking Type:	Concentric	Relubricatable:	Yes
End Cap:	No	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	Outer Ring Land Profile:	Tapered Lands
Bearing Insert Coating:	Black Oxide Coated	Radial Static Load Capacity (lb):	2, 567
Cage Material:	PPS	Precision Rating:	ABEC 1
Series:	ER-T	Grease Fitting Thread Size:	1/4-28 UNF-3A X .250
Inner Race Profile:	Wide Inner Ring	Outer Race Profile:	Cylindrical
UPC:	662461031216	Weight:	1.06 LB
Packaged Length:	2.75 Inches	Packaged Width:	1.56 Inches
Packaged Height:	2.75 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
