- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Extra low drag seal cut down felt labyrinth seal and flinger
- Oil lubricated for reduced internal friction
- Nylon retainer to reduce overall drag
ERX-207TM XLO

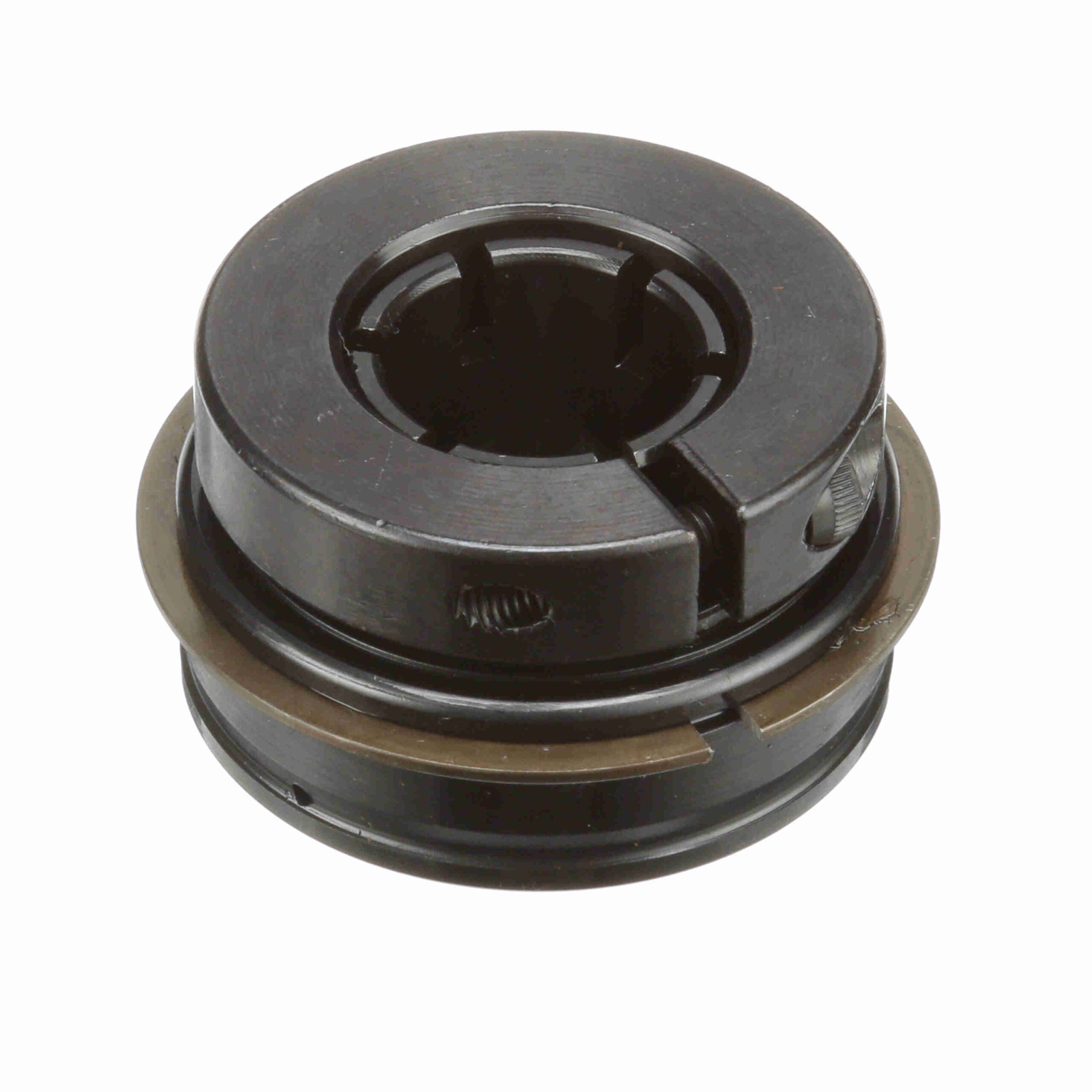

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Extra Low Drag – ERX-207TM XLO
Out of stock
| Torx Cap Screw: | 10-24 X 3/4 | Radius: | 1.02 |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Measure Units: | Metric |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Bore Shape: | Straight |
| Seal Type: | Cut Down Felt Labyrinth | Housing Type: | Insert (ER Style) |
| Misalignment: | None | Expansion: | No |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 25, 718 lb |
| Speed (Max) (rpm): | 1850 rpm | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Tapered Lands | Options: | Extra Low Drag |
| End Cap: | No | Radial Static Load Capacity (lb): | 16, 301 lb |
| Precision Rating: | ABEC 1 | Cage Material: | Molded Nylon |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Cylindrical |
| Ability to Relubricate: | Yes | Locking Type: | Concentric |
| Duty/Status: | Standard | Inner Race Heat Treat Method: | Zone-Hardened |
| Retainer Type: | Land Riding Retainer | Lubrication Type: | Oil Coated Only - No Factory Grease Fill |
| Maximum Operating Temperature (F): | 220 °F | UPC: | 662461299555 |
| Weight: | 1.37 LB | Packaged Length: | 3.13 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 3.13 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
